Please note that this function is only working with iDraw 1.0 and iDraw H SE machines, we will update a new guide for other versions soon.

In the world of automated drawing and machine control, precision and flexibility are paramount. For users of iDraw 1.0 and iDraw H SE machines, integrating Python 3.12 provides an avenue to unlock more advanced functionalities. By leveraging Python’s extensive library and robust features, users can now streamline machine control, automate processes, and customize their plotting sequences. This guide is designed to help you set up and configure Python 3.12 to control your iDraw 1.0 and iDraw H SE machines and explore the hidden-line removal function, which ensures clean and professional drawing outputs without unnecessary artifacts.

Python 3.12 stands out for its enhanced syntax and performance, allowing for seamless integration with a wide range of machines and tools. When paired with iDraw 1.0 and iDraw H SE, it opens up possibilities for users who want more precise control over their plots, especially for intricate designs. The hidden-line removal function is particularly useful for those who need clarity in their output, such as artists working on generative art or professionals handling technical drawings.

This guide takes you through the entire process—setting up Python 3.12, modifying essential configuration files, and enabling crucial features like hidden-line removal. Whether you are a novice to machine control or an experienced coder, this guide will ensure you maximize the capabilities of your iDraw 1.0 and iDraw H SE machines.

Step 1: Setting Up Python 3.12 for iDraw 1.0 and and iDraw H SE Control

Please make sure that Python 3.12 is installed on your computer. You can download and install it from the official Python website. "C:\Python312\pythonw.exe" is the installation directory of the Windows system for the test. python-interpreter="the directory where pythonw is located"

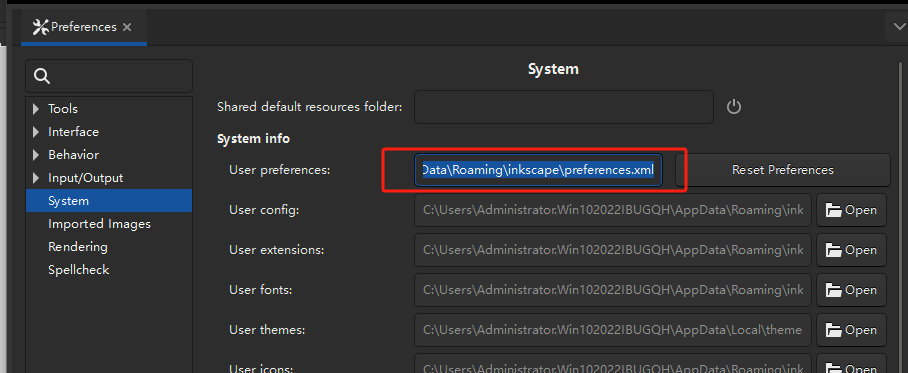

To begin controlling your iDraw 1.0 machine using Python 3.12, the first step is to modify the necessary configuration files. Specifically, you need to adjust the `preferences.xml` file to point to the Python interpreter:

id="extensions"

python-interpreter="C:\\Python312\\pythonw.exe"


This configuration ensures that the machine understands and executes commands using Python 3.12. With this in place, your iDraw 1.0 machine can now accept custom scripts and execute them seamlessly, providing a higher level of customization.

Step 2: Installing the iDraw 1.0 and and iDraw H SE Control Plugin

Once you’ve configured the Python interpreter, the next step is to install the iDraw Control Plugin. This plugin is essential as it acts as the bridge between Python and your iDraw 1.0 and iDraw H SE machines, allowing the machine to interpret and follow the commands you script. Once installed, the plugin will be visible in your system, ready to control the plotter.


With the plugin, you can automate drawing processes, customize plotting parameters, and make real-time adjustments to your machine’s operations. For example, if you're working on a large batch of designs or drawings, you can program Python to control the speed, path, and timing of the iDraw 1.0 and and iDraw H SE plotters, streamlining the entire process.

Step 3: Enabling the Hidden-Line Removal Function

One of the most powerful features available through Python control is the hidden-line removal function. This function is essential for professionals who need their drawings to be as precise and clean as possible, removing any unnecessary or overlapping lines that may complicate the final output.

To enable hidden-line removal, you'll need to install the `pyclipper` library. This can be done easily using the terminal:
```
pip install pyclipper
```


The `pyclipper` library is responsible for managing and eliminating hidden lines from your drawings, ensuring that only visible lines are plotted. This is especially useful for technical drawings, where clarity is critical, or for detailed artwork where overlapping lines can cause confusion.

With `pyclipper` installed, you can enable the hidden-line removal function within your Python scripts, further refining the output of your iDraw 1.0 and and iDraw H SE machines. Whether you're working on architectural designs, engineering diagrams, or complex generative art, this function will ensure your work is presented clearly, reducing the need for post-production edits.

Summary:

In this guide, you’ve learned how to integrate Python 3.12 into your workflow for controlling the iDraw 1.0 and iDraw H SE machines. By modifying the `preferences.xml` file, installing the iDraw 1.0 and iDraw H SE Control plugin, and enabling the hidden-line removal function through the `pyclipper` library, you can unlock advanced features that significantly enhance your machine's precision and flexibility.

Python 3.12’s integration allows for extensive customization, enabling users to fine-tune their plotting processes. The hidden-line removal function, in particular, is a valuable tool for professionals and artists alike, ensuring that final outputs are clean, accurate, and free from unnecessary elements.

By mastering these tools and techniques, you can elevate your iDraw 1.0 and iDraw H SE machines' performance, making it an indispensable asset in your creative or professional toolkit. Whether you're tackling intricate art projects or technical designs, this guide will help you harness the full potential of your iDraw 1.0 machine with Python 3.12, ensuring optimal results every time.
