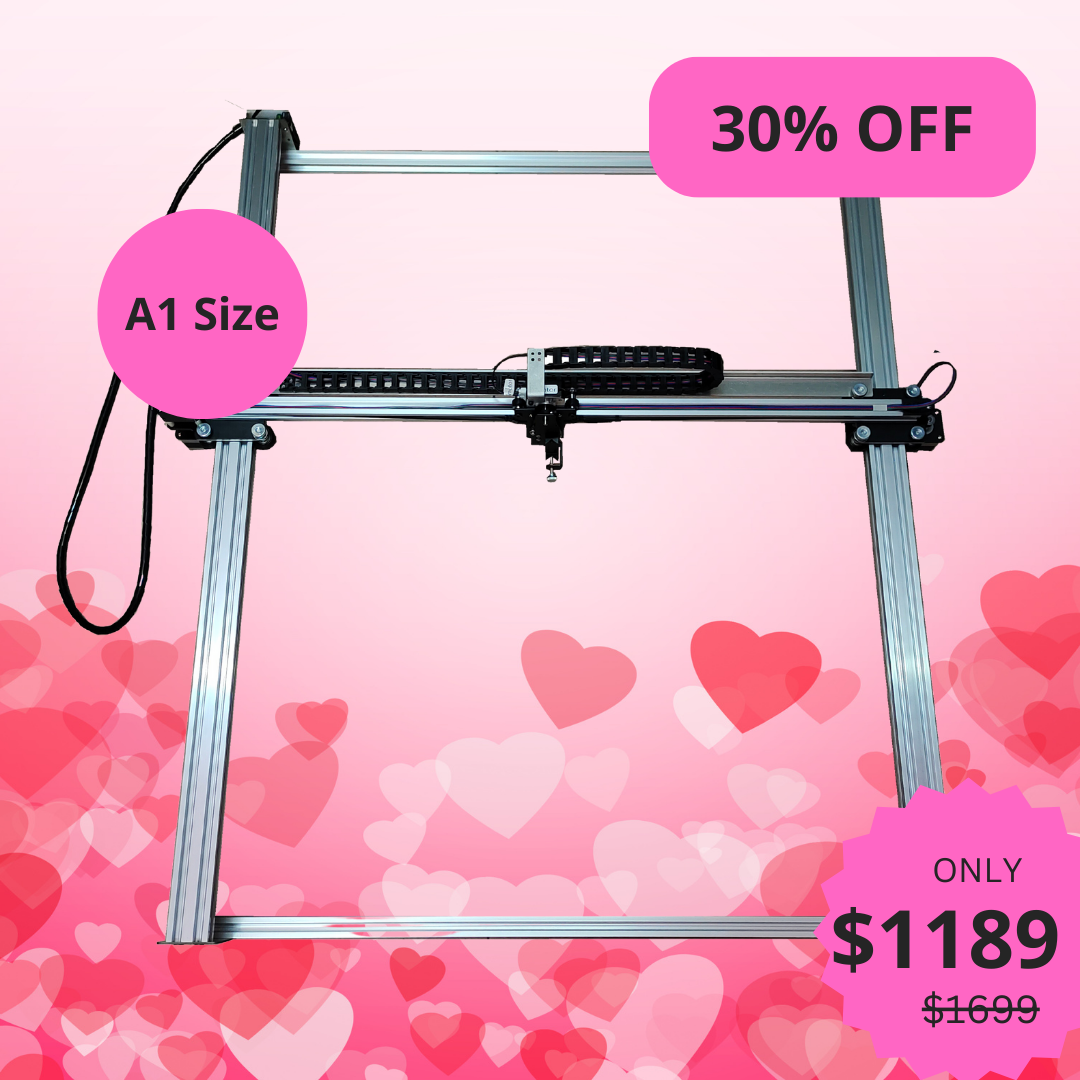

iDraw H A1 Large Format Plotter Drawing Robot Pen Plotter Drawing Machine Writing Machine Signature Machine| UUNA TEK

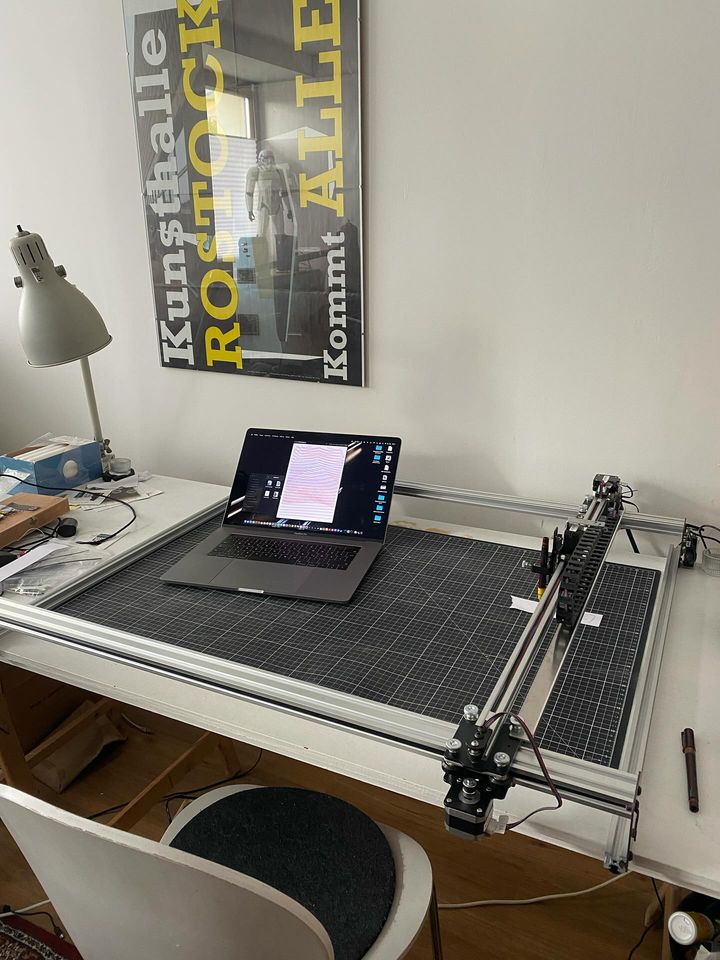

UUNA TEK® H A0/A1/A2 is derivatives of the UUNA TEK® H A3 pen plotter without basement, specially redesigned for a larger plot area.

Even with the improved carriage, these larger models generally need to be operated at slower speeds than a regular UUNA TEK® H A3 in order to achieve the same quality.

To reduce shipping cost and the risk of damage, these models ship partially disassembled, and we will ship from our Chinese manufacturer directly. Because of this high shipping cost, we don't accept return or refund, but we can provide free replacements for any faulty parts and make sure it's working. We can only provide full refund because of quality issue and fail to provide solution.

Import tax should be charged by your customs

They're really big.

These units are made to order, in limited production, which will take at least one month to produce and at least 5-10 business days for shipment. Email us via uunatek@gmail.com to confirm everything after placed the order.

Please note that the larger the machine, the greater the deviation. The A2-A0 machine has a deviation of about 0.1-0.2mm on the X-axis and about 0.2-0.3mm on the Y-axis. It is possible that the belt conveyor or other parts may become loose during transportation due to long-distance cross-border transportation. In this case, you may need to adjust the machine remotely after receiving it with our online meeting here: https://calendly.com/uunatek/idraw-support, or watch our YouTube video instructions here: https://www.youtube.com/watch?v=QlrD2w3Zo2M&t=1403s. At the same time, if the software settings allow back and forth movement, the deviation will increase.
In this case, we recommend:
1. Try to write at a lower speed and use the default recommended drawing speed of 2000mm/min
2. Do not turn on the automatic optimization function, allowing move back and forth, to reduce the deviation
3. Try to use the X-axis as the center axis of the picture
4. Use a quick-drying pen
5. Try to use drawing paper and fix the paper
6. The artwork should not be too complicated. If it is really complicated, it is recommended to draw it in several parts

Motherboard: Drawcore V2.0

Firmware: GRBL Compatibility

Add-ons: UUNA TEK® 2.0 Control

Frame Materials: Aluminum Profile + Steel Plate

Working Area:  A2:(16.5 x 23.4 inches )A1:( 23.4 x 33.1 inches), A0:(33.1 x 46.8 inches)

Motors: 4* 42 Stepper Motors (more steppers might be used for A1/A0 Size)

Mechanical Precision: Y:0.01 mm，X:0.01mm

Writing Speed: 0-12,000MM/MIN (slower than A3 size)

Baud Rate: 115200 - 921600 (Default: 115200)

Input Format: JPG, JPEG, PNG, BMP, SVG, etc.

Input Voltage: 110V-220V (Compatible)

Power Adapter Output: 12V / 1A

Operating Temp.: -20℃-50℃

Product Size: A2:(17 x 27x6.7inches )A1:( 24 x 35x6.7 inches), A0:(34 x 48x6.7inches)

Net Weight: 5 kg-10kg

Limited Switch: Y

Adjustable Angle for Pen: 70-90 Degree

Connectivity: USB, Bluetooth

Support OS and Software: Windows 7/8/10(Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux

1 X UUNA TEK iDraw H A2/A1/A0 Pen Plotter

1 X Tool Kits

1 X Quick Start Guide

1 X Thank You Card

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>

For UUNA TEK® 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK® 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK® H Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>
