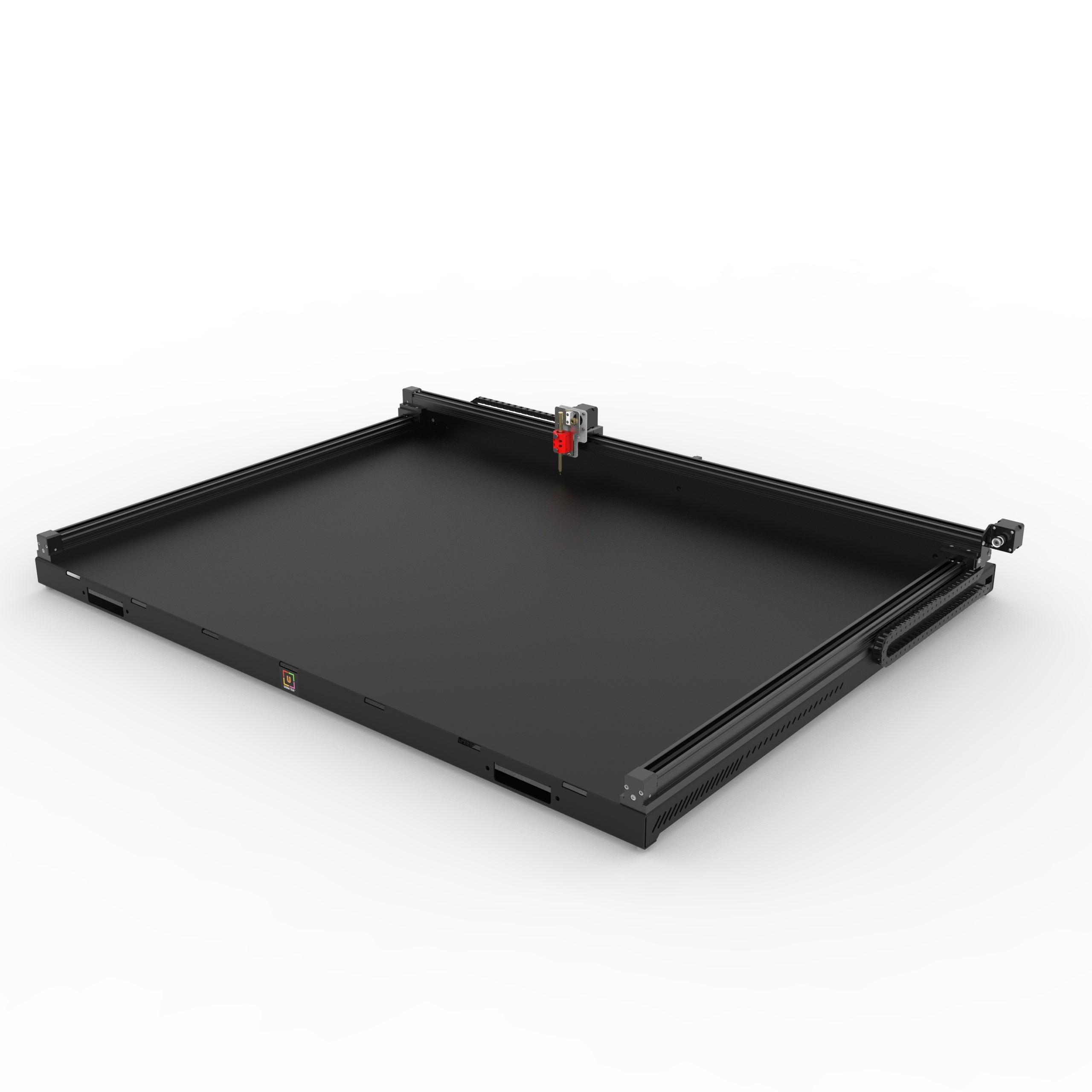

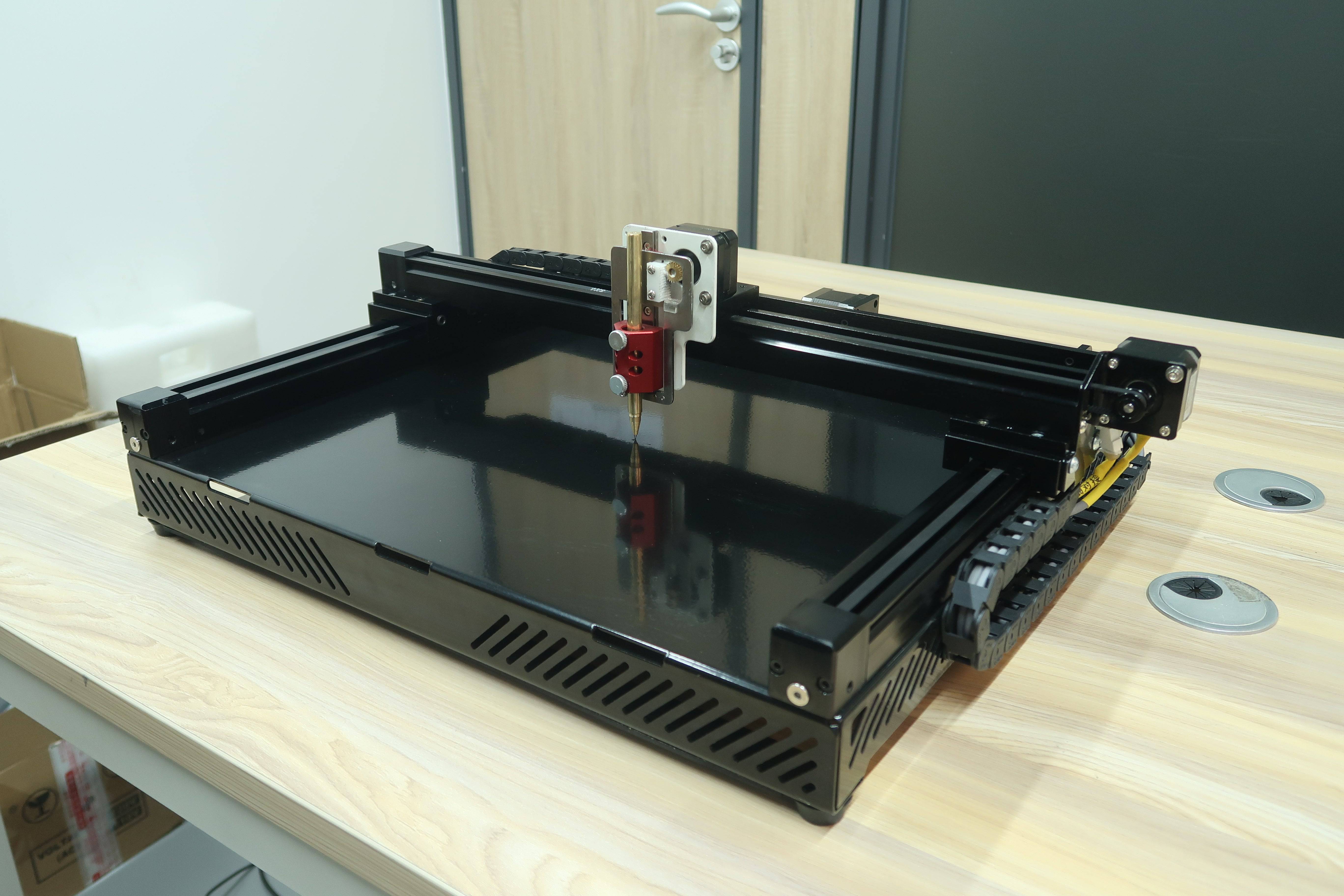

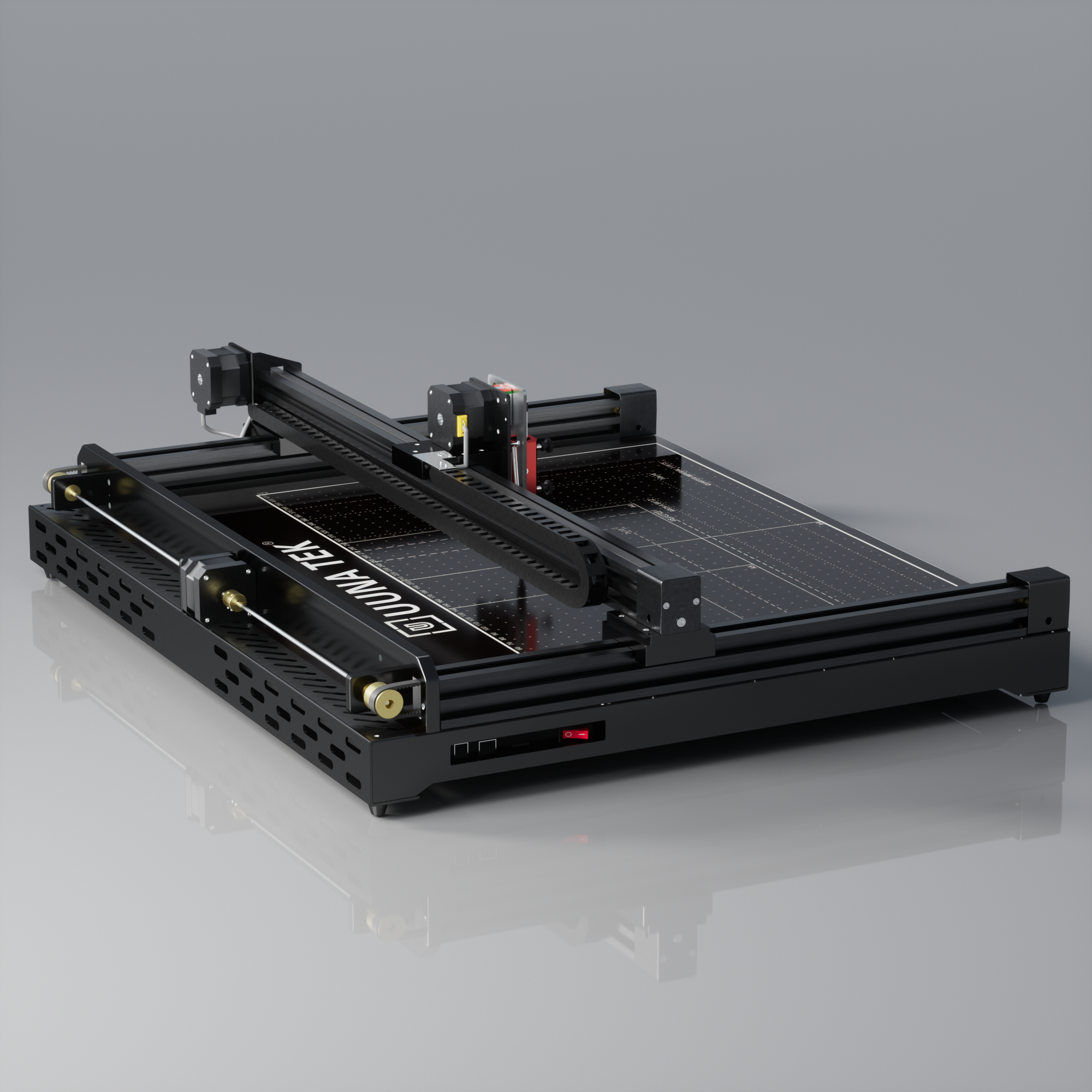

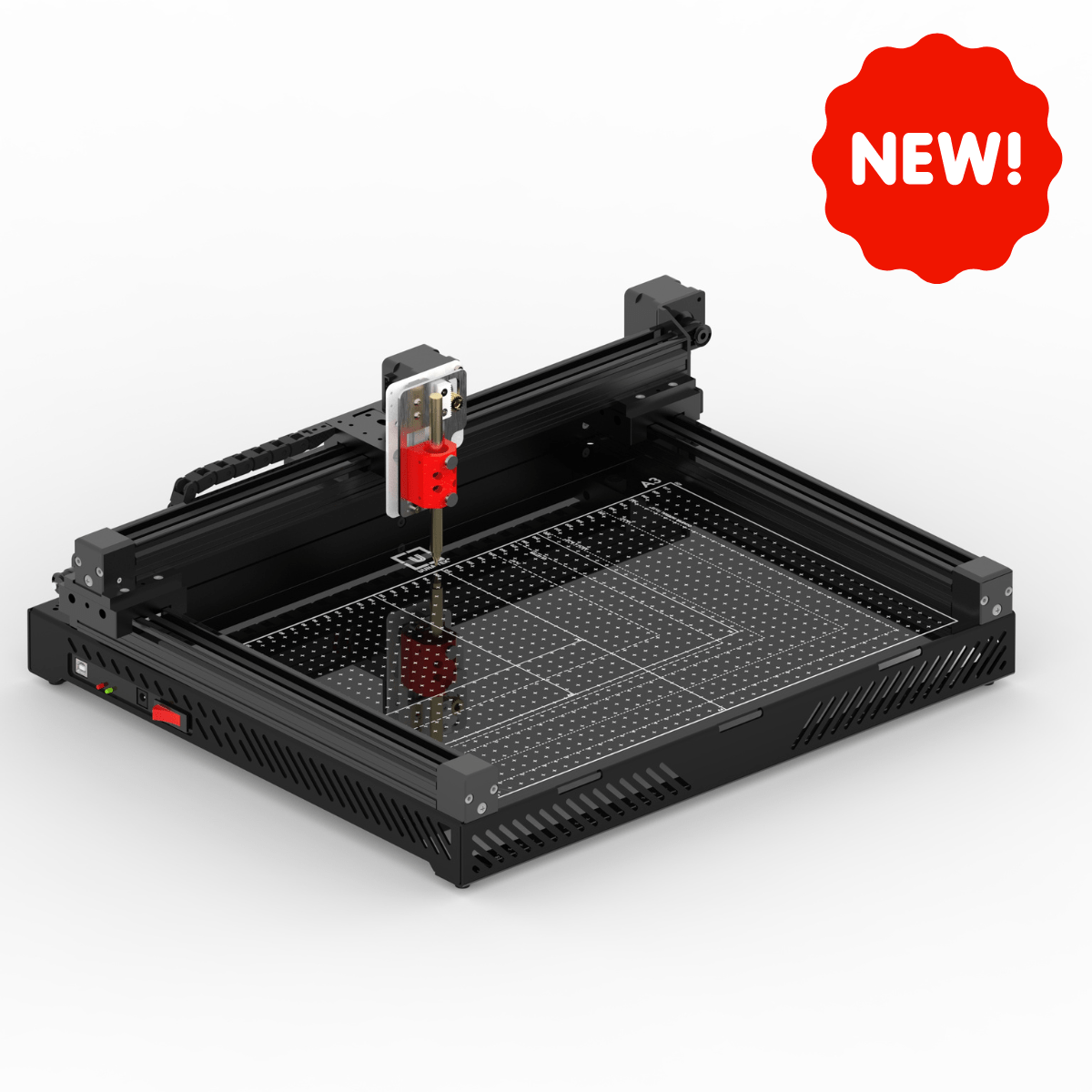

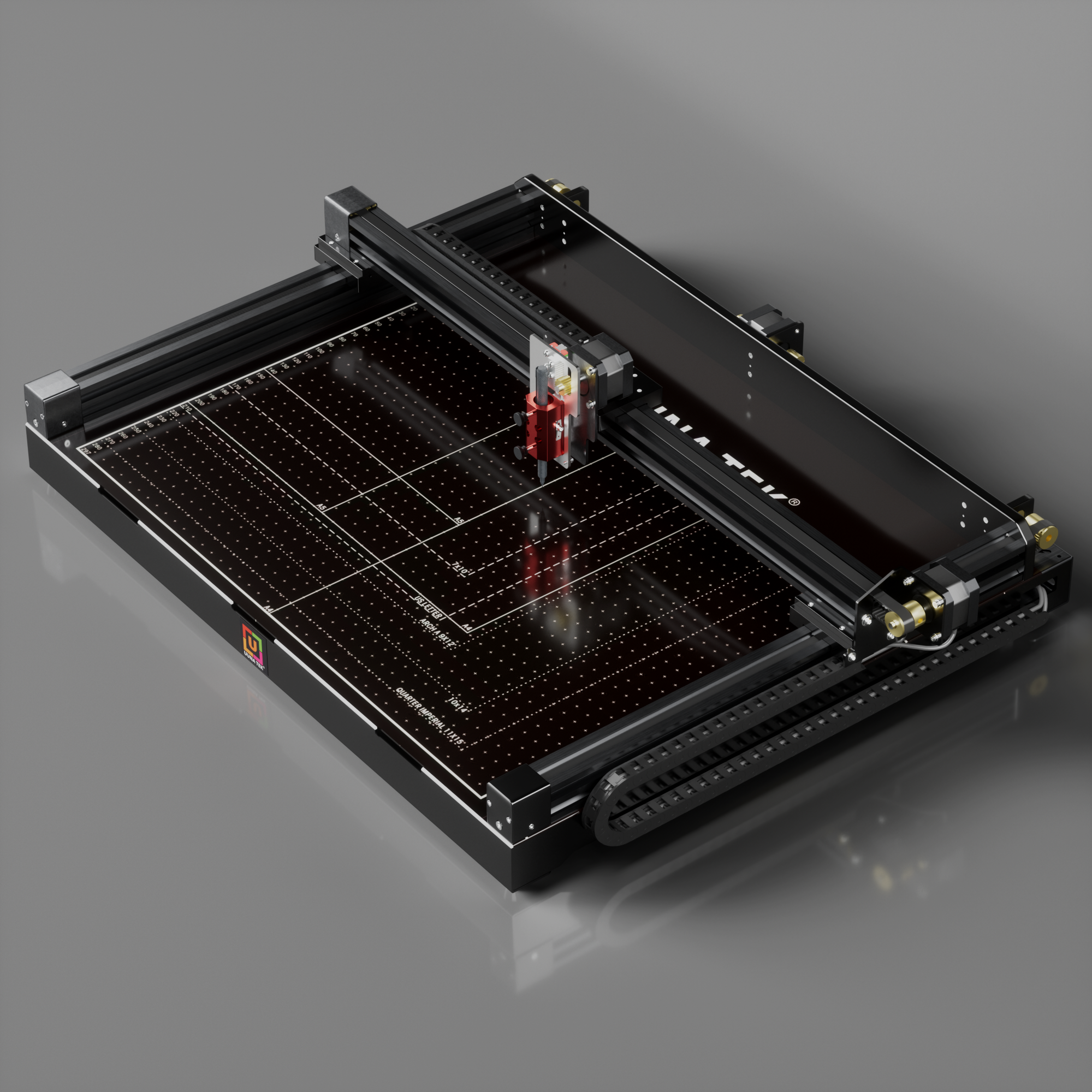

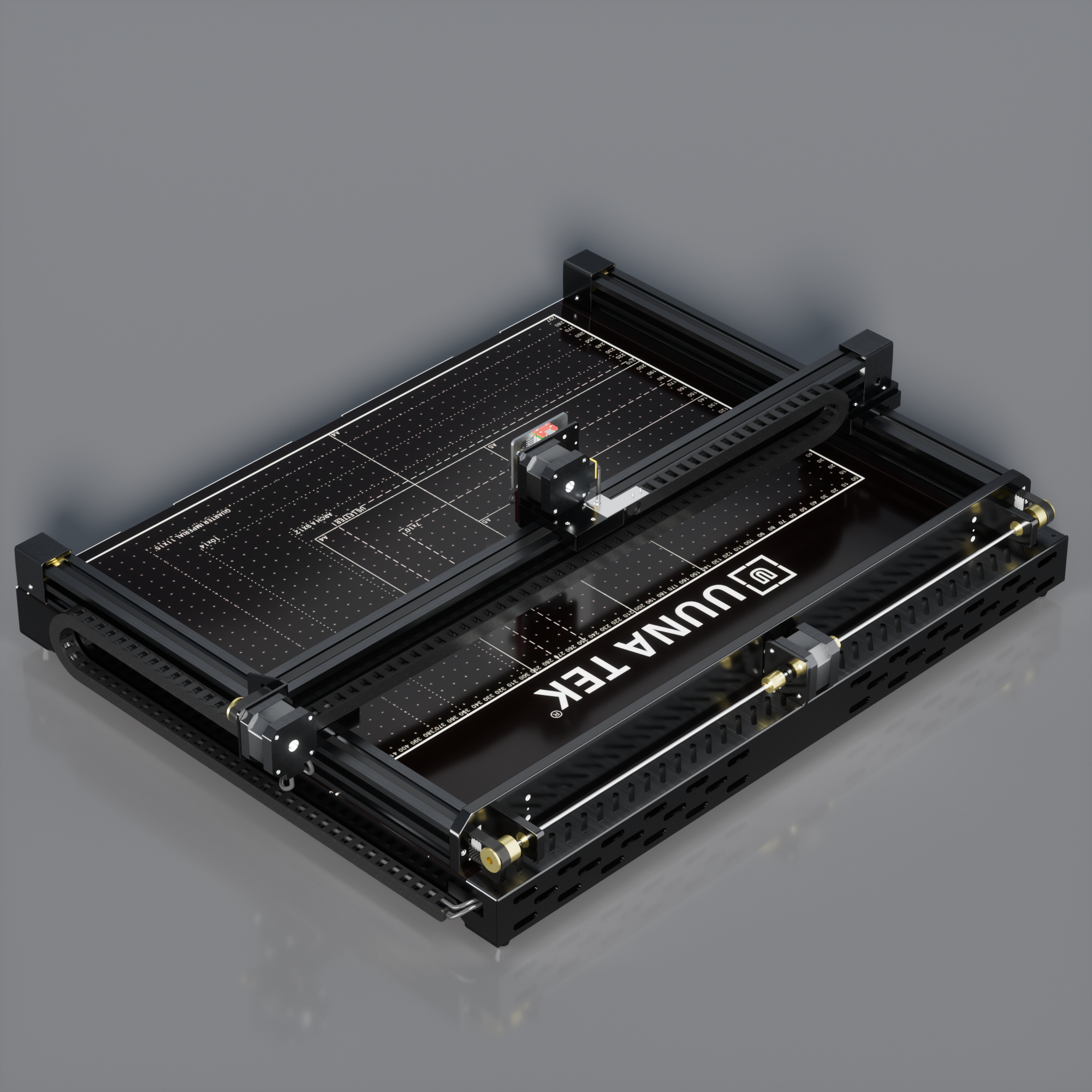

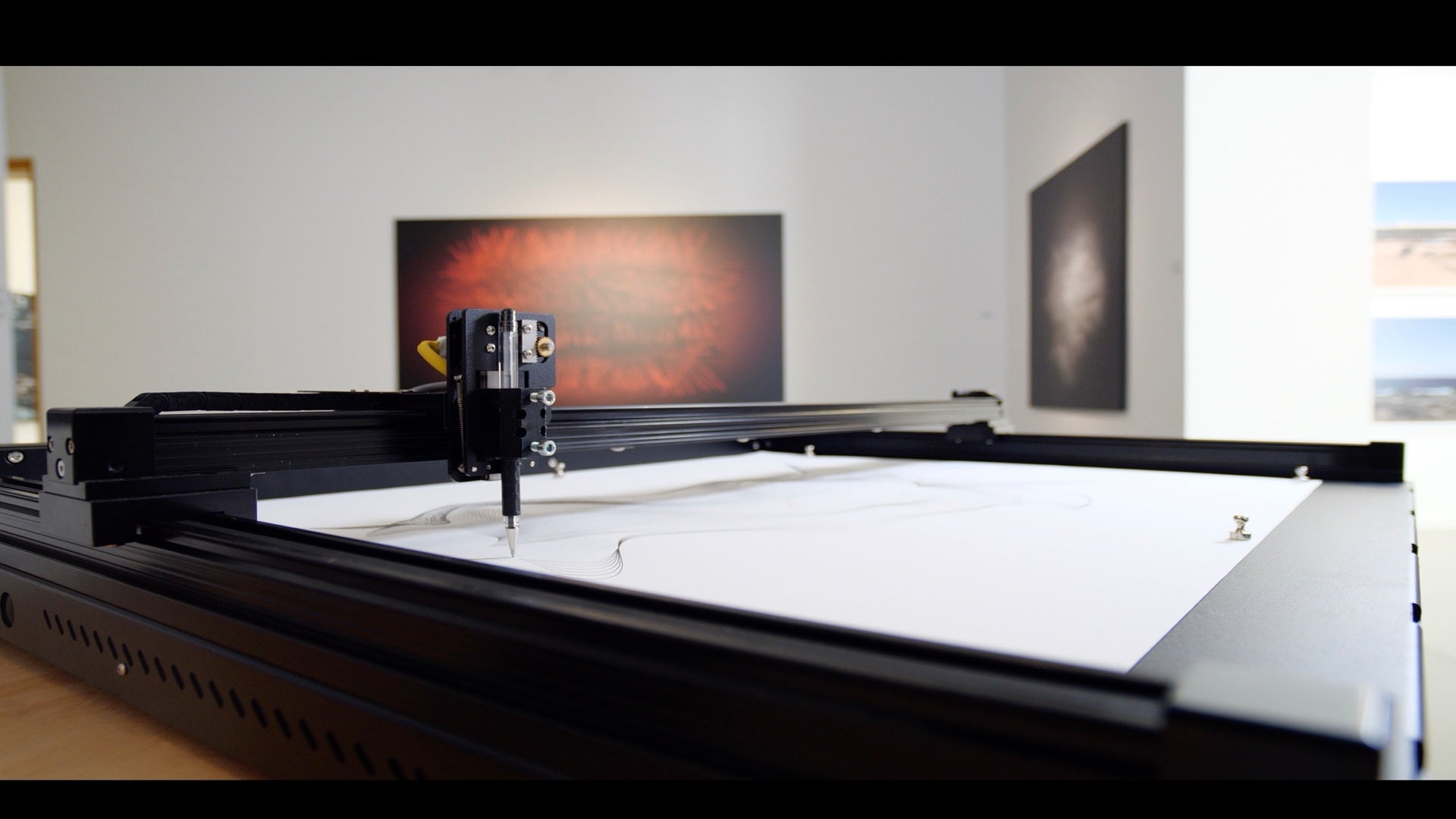

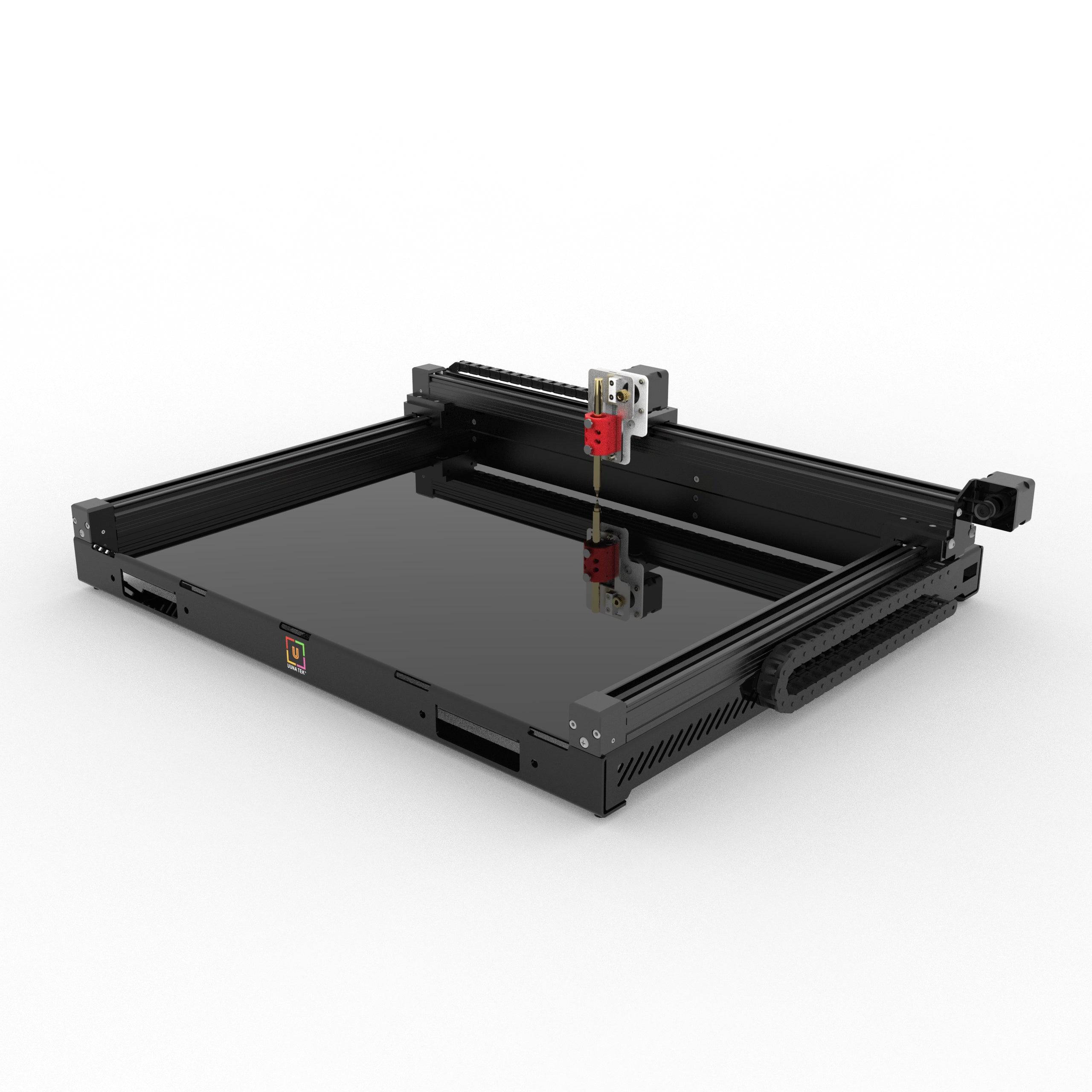

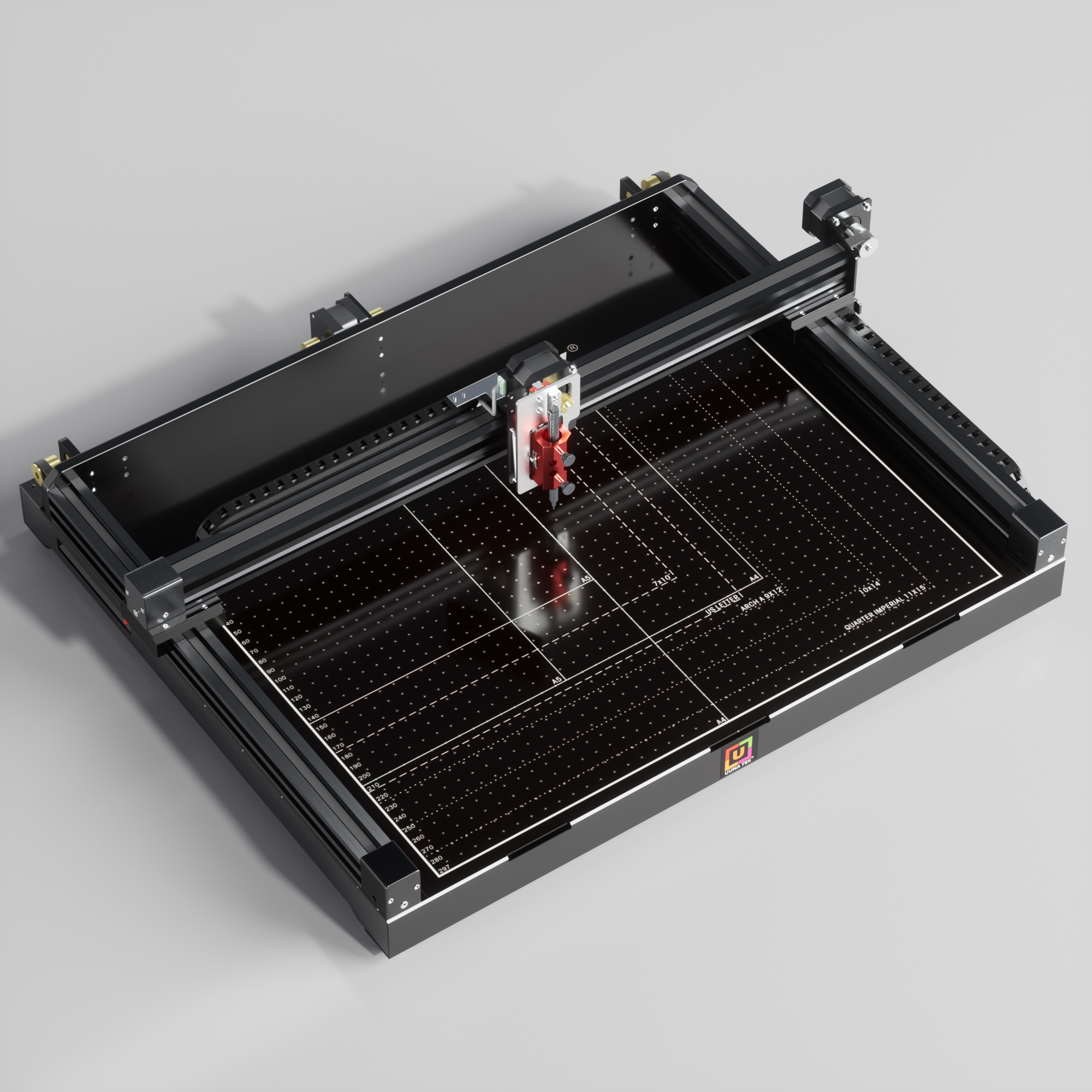

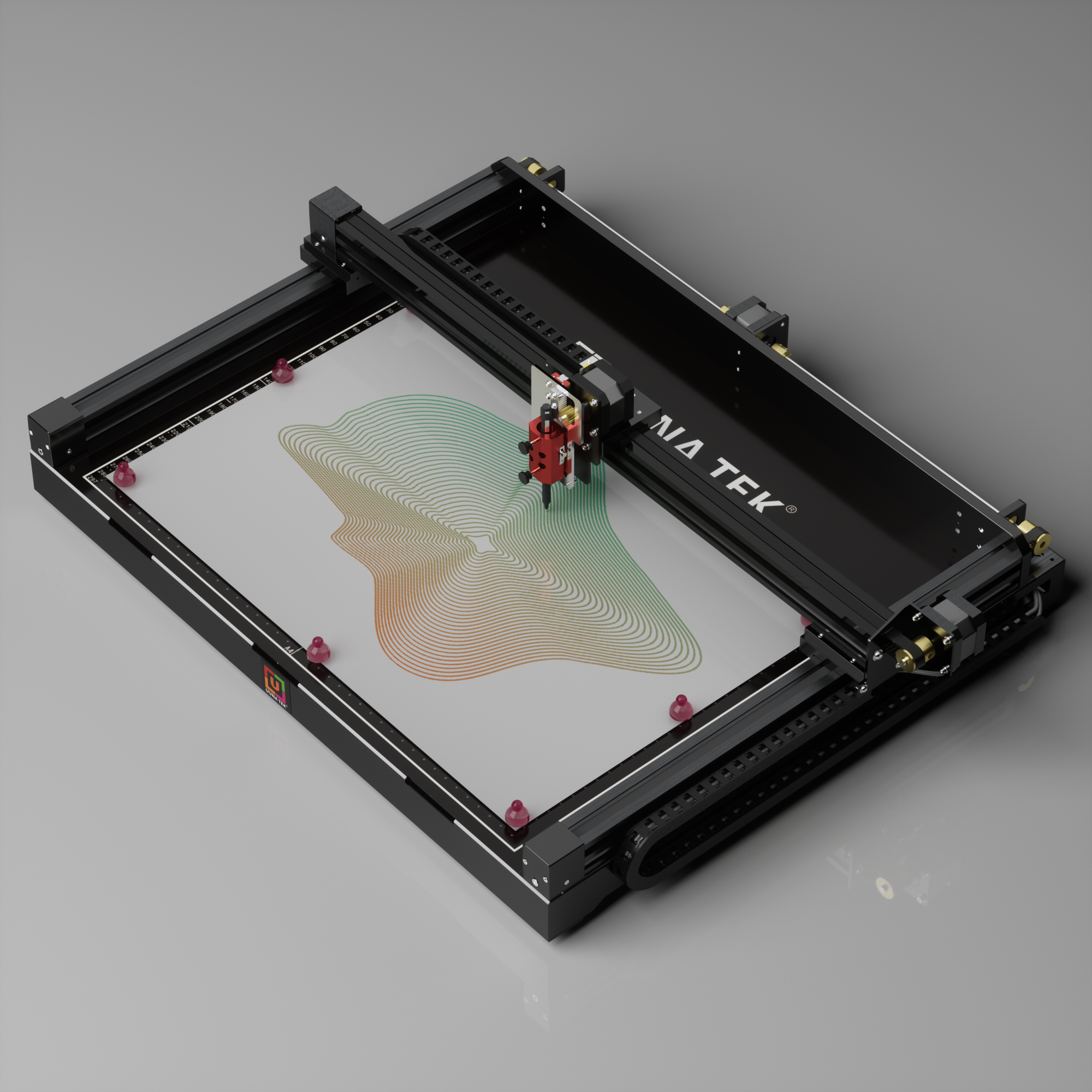

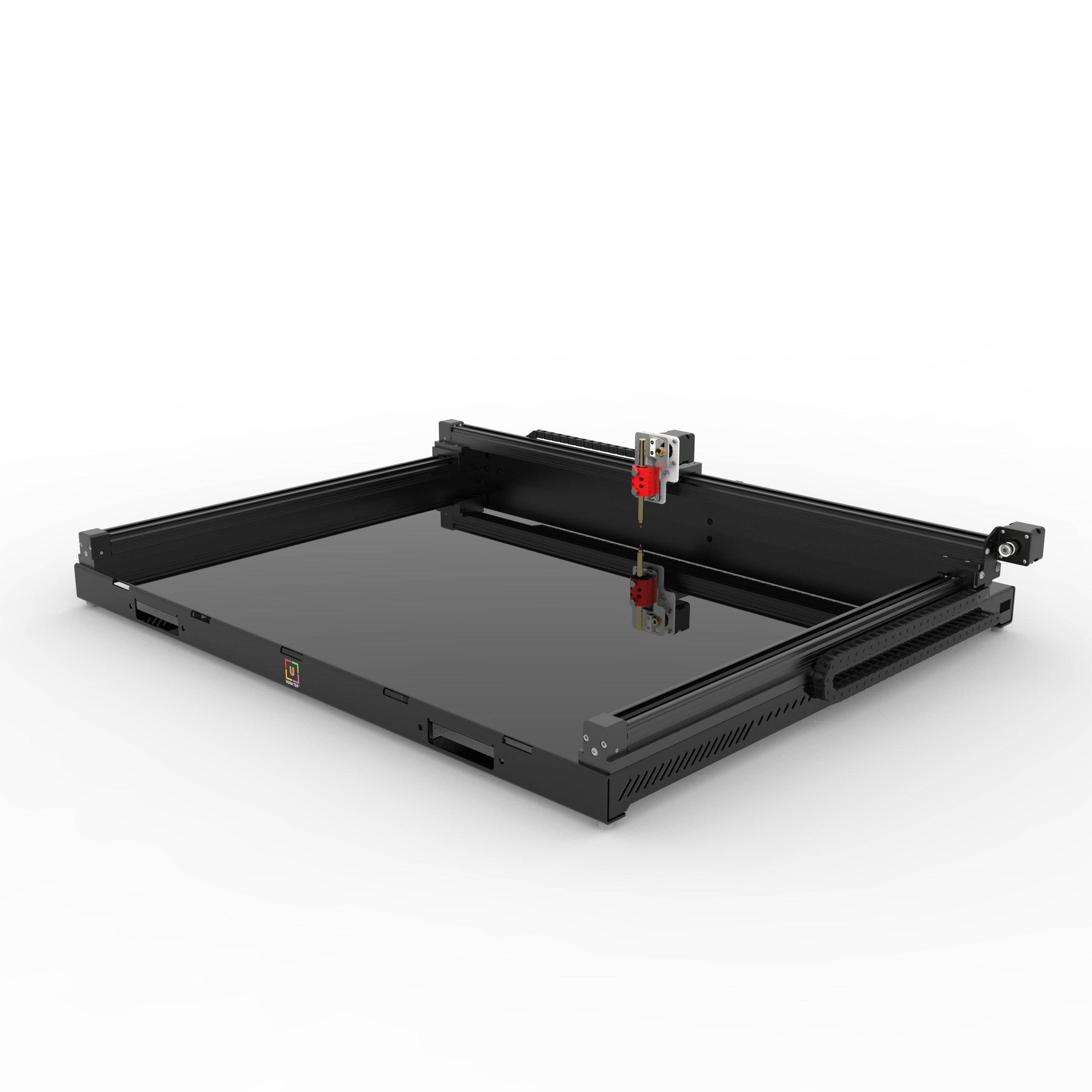

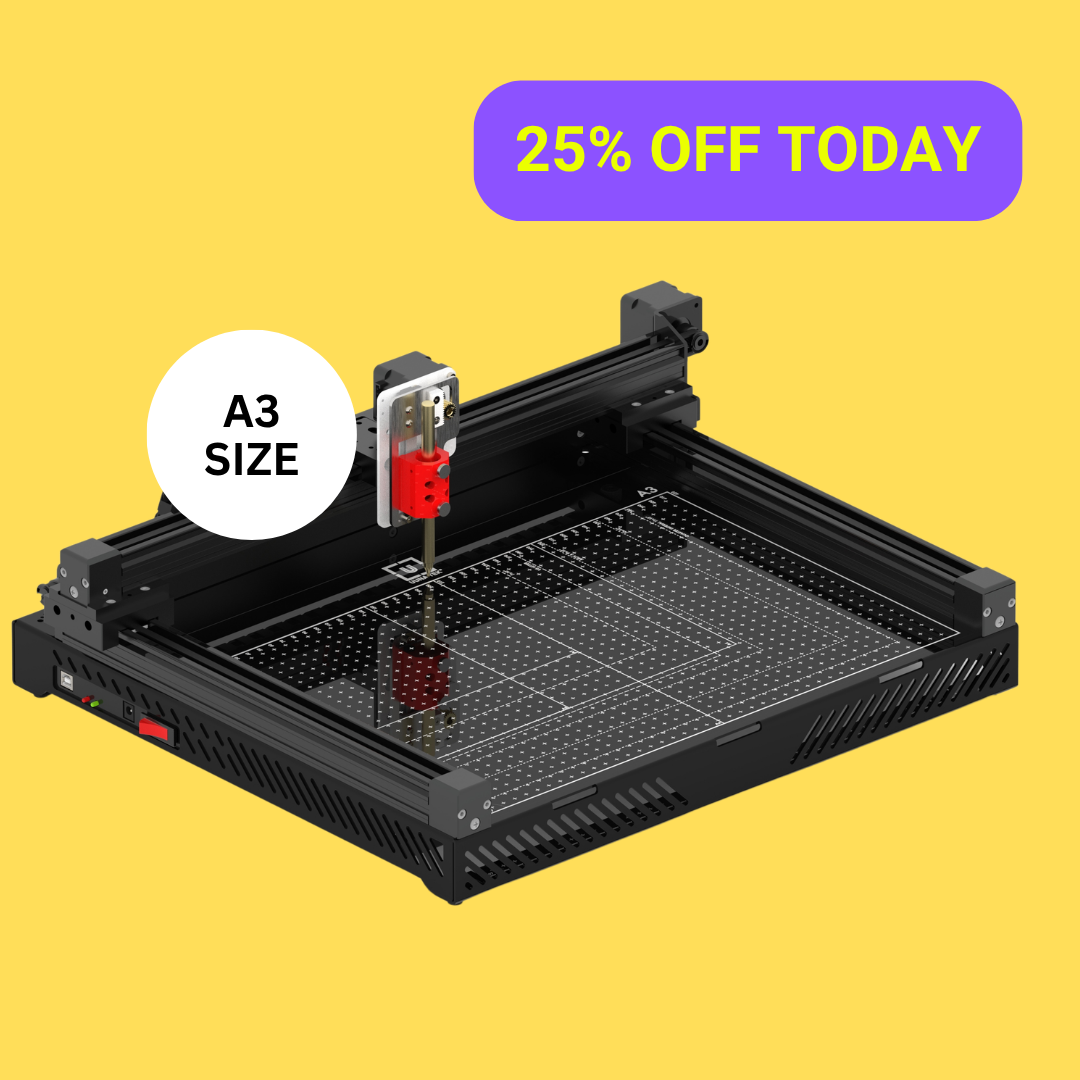

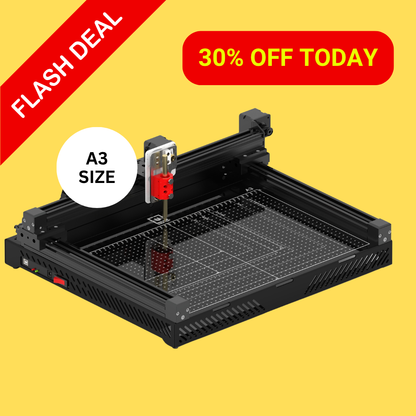

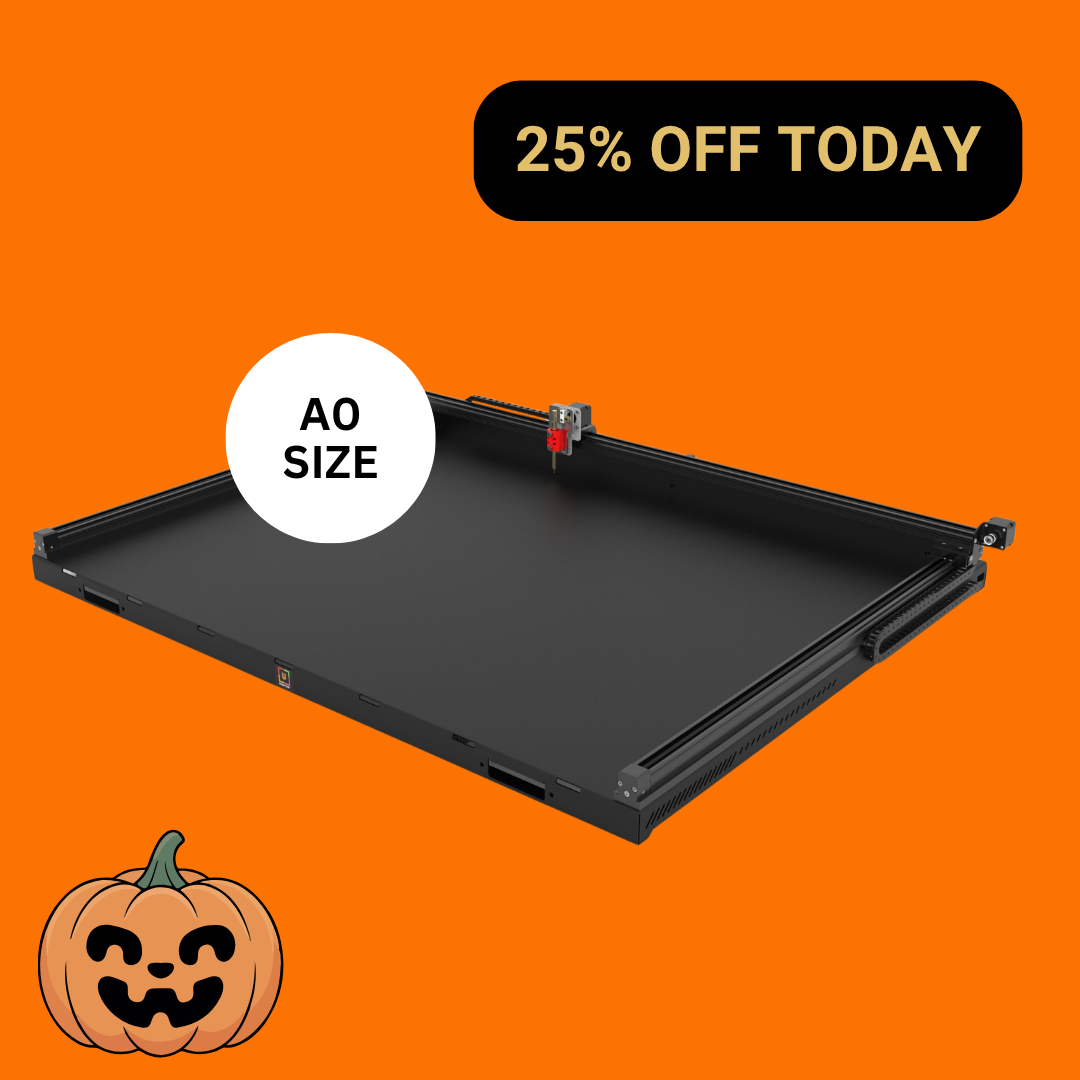

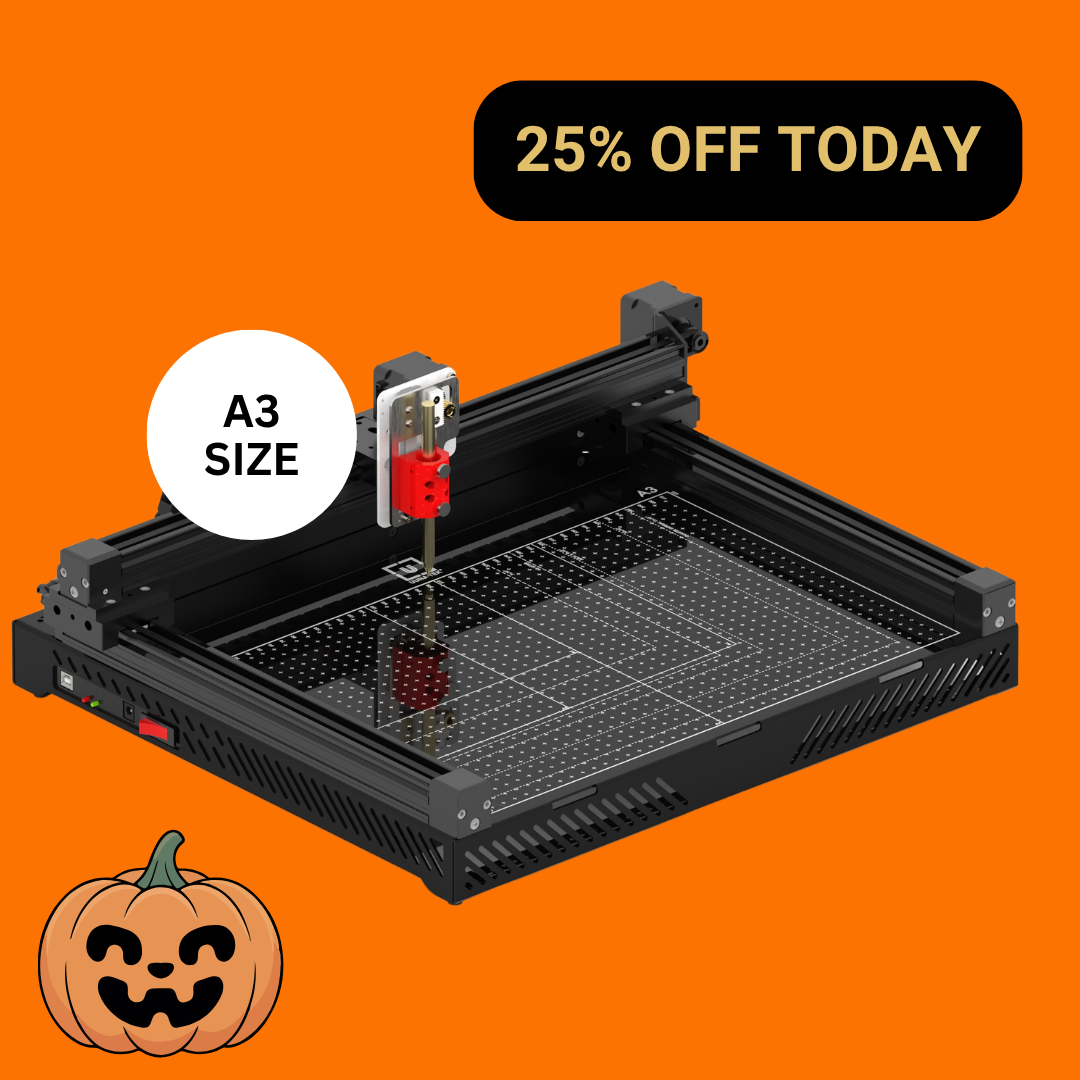

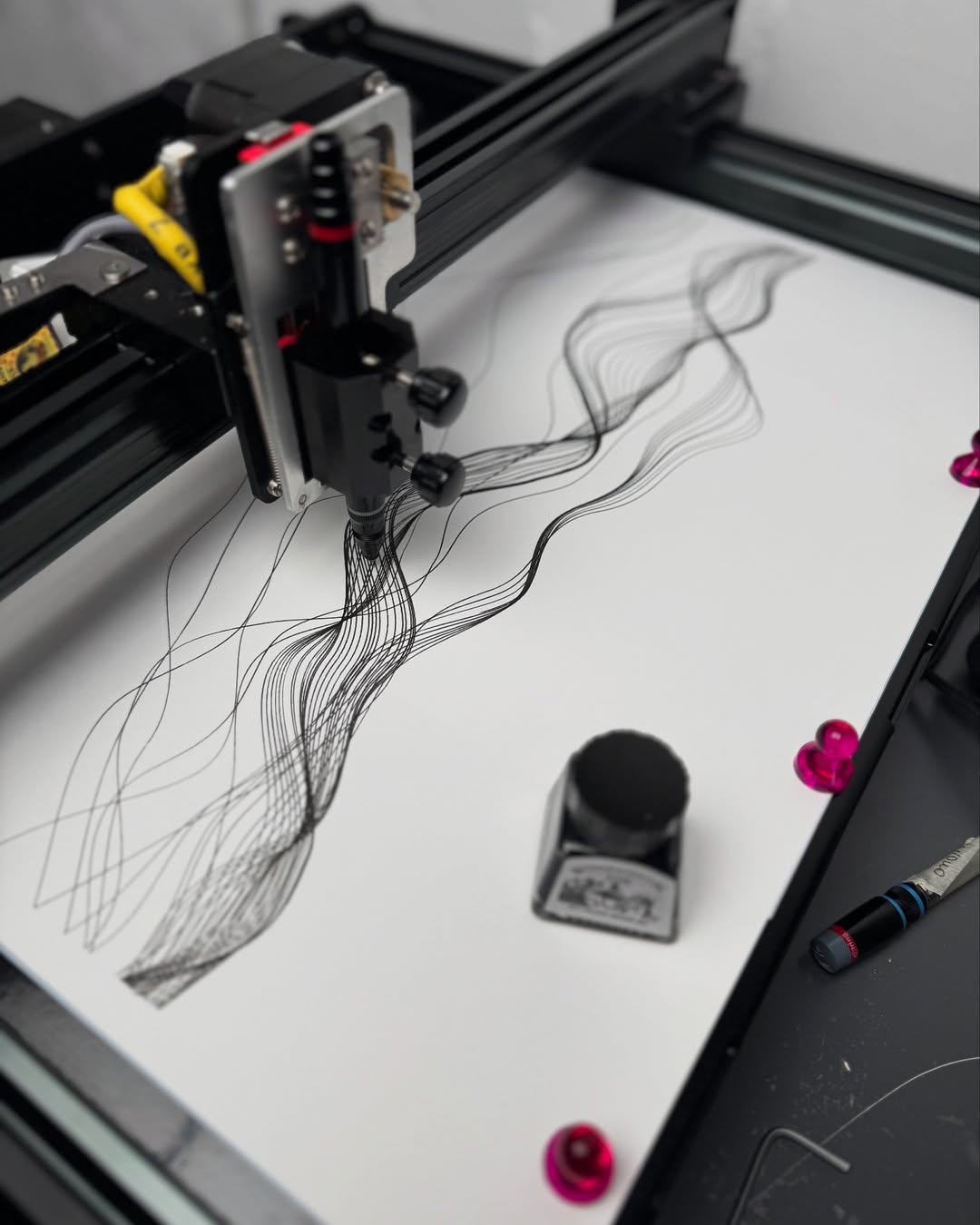

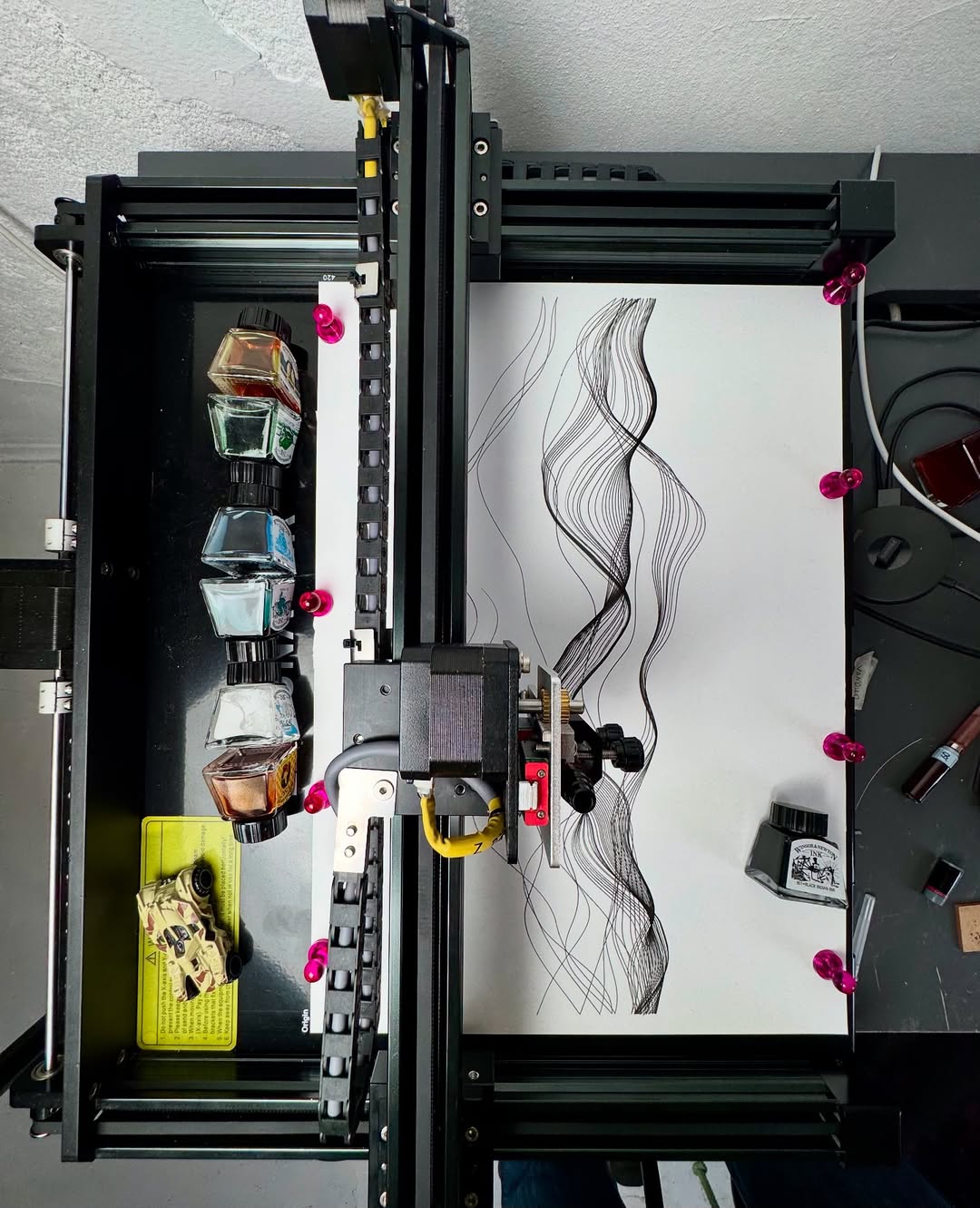

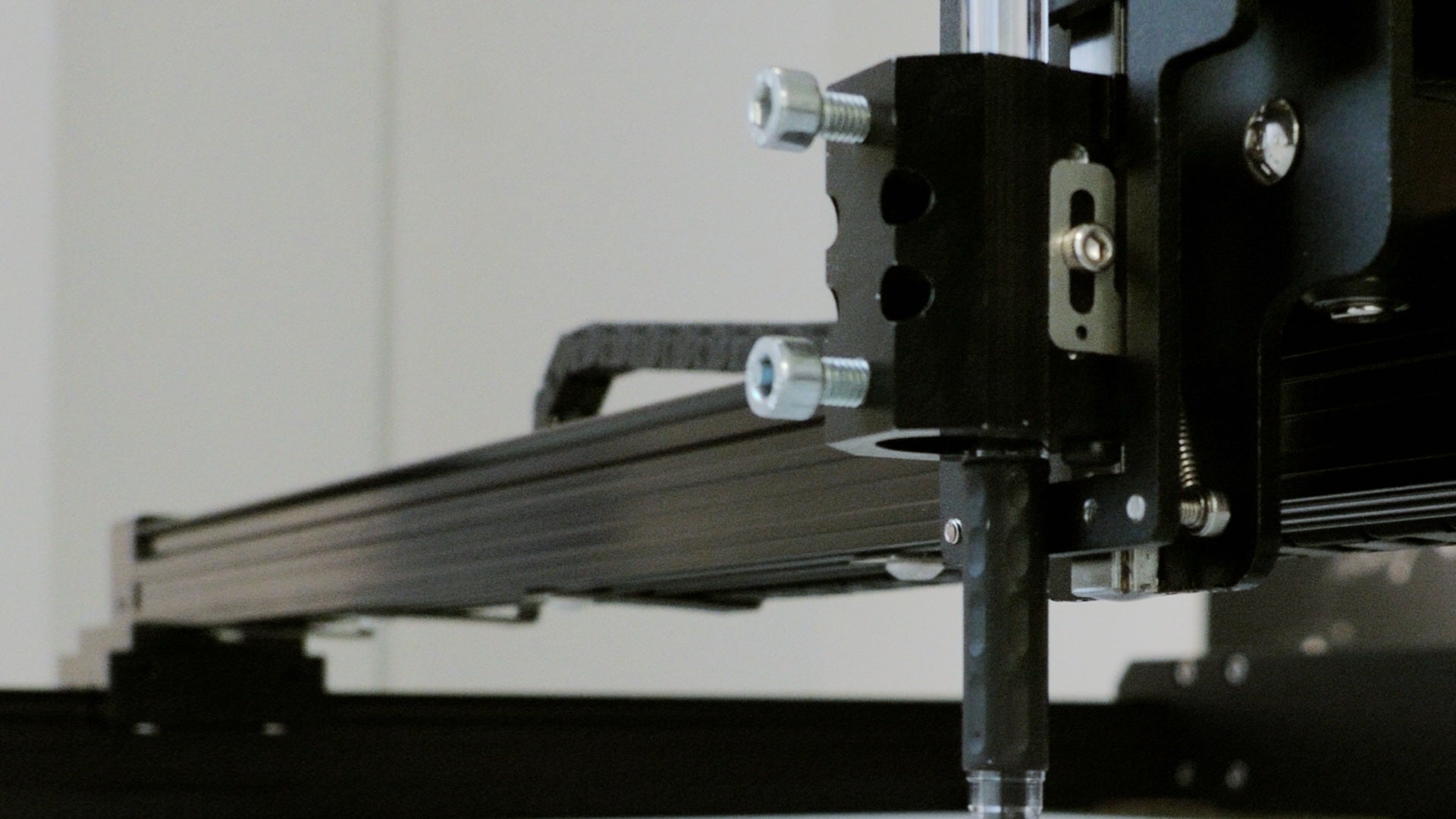

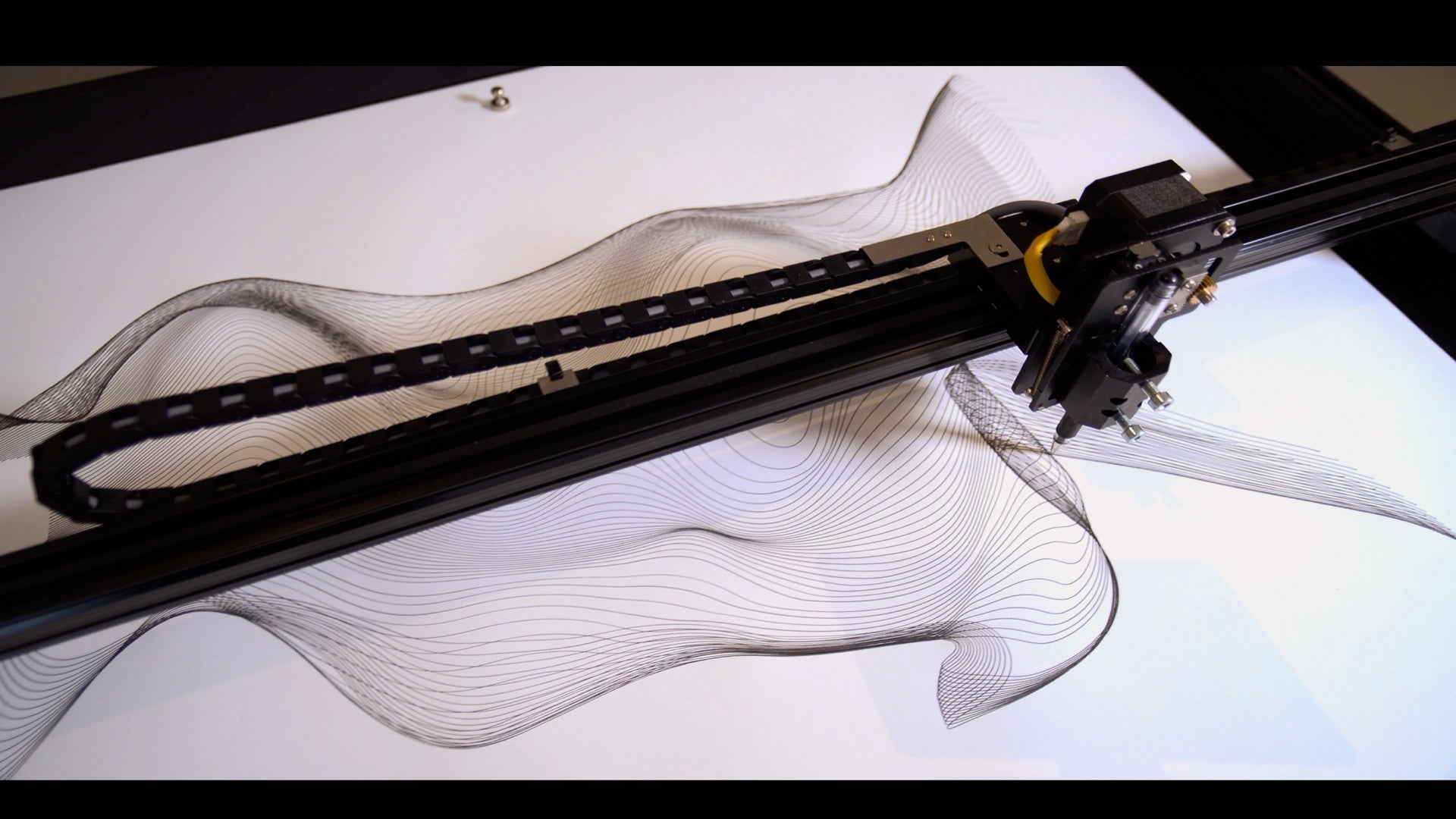

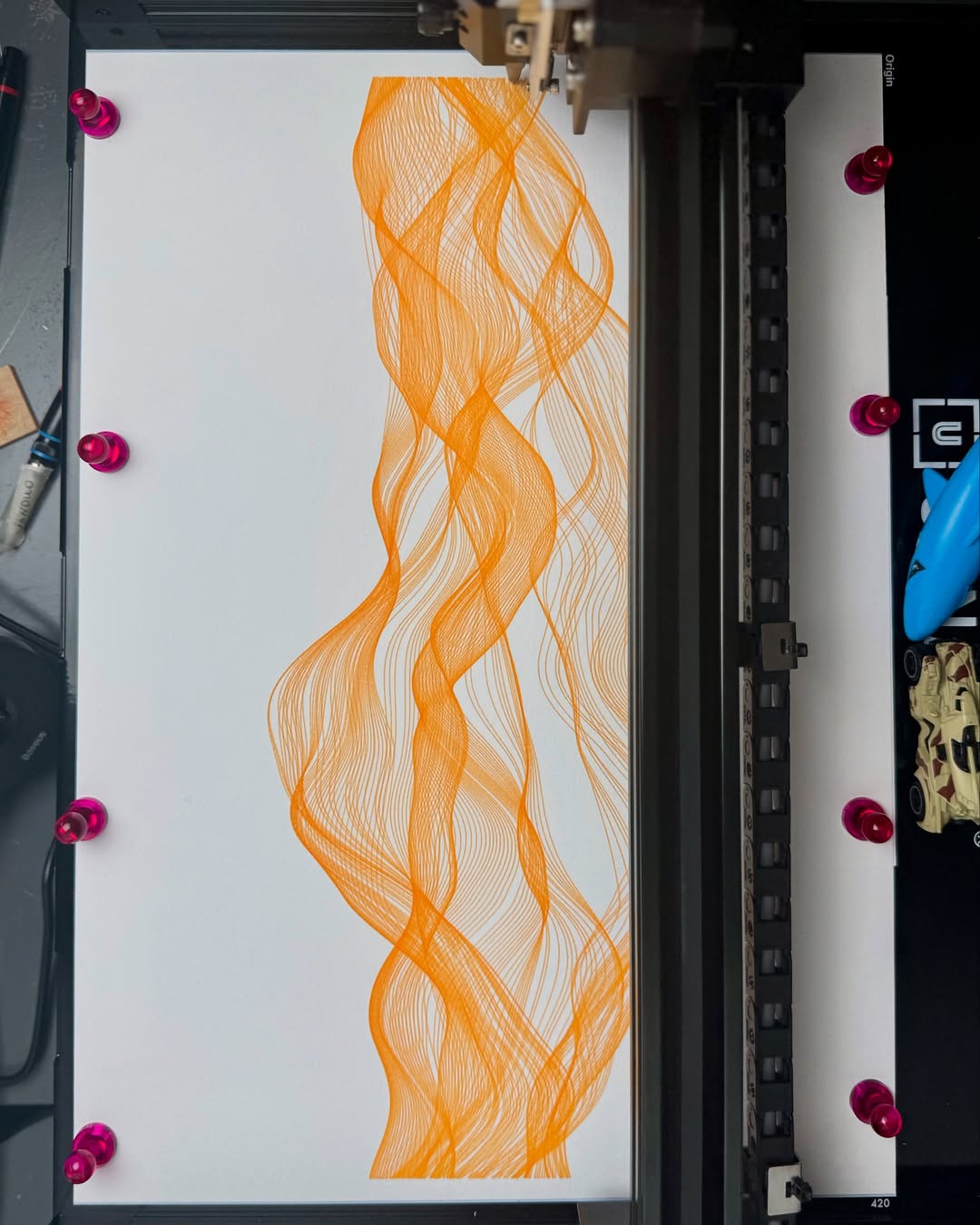

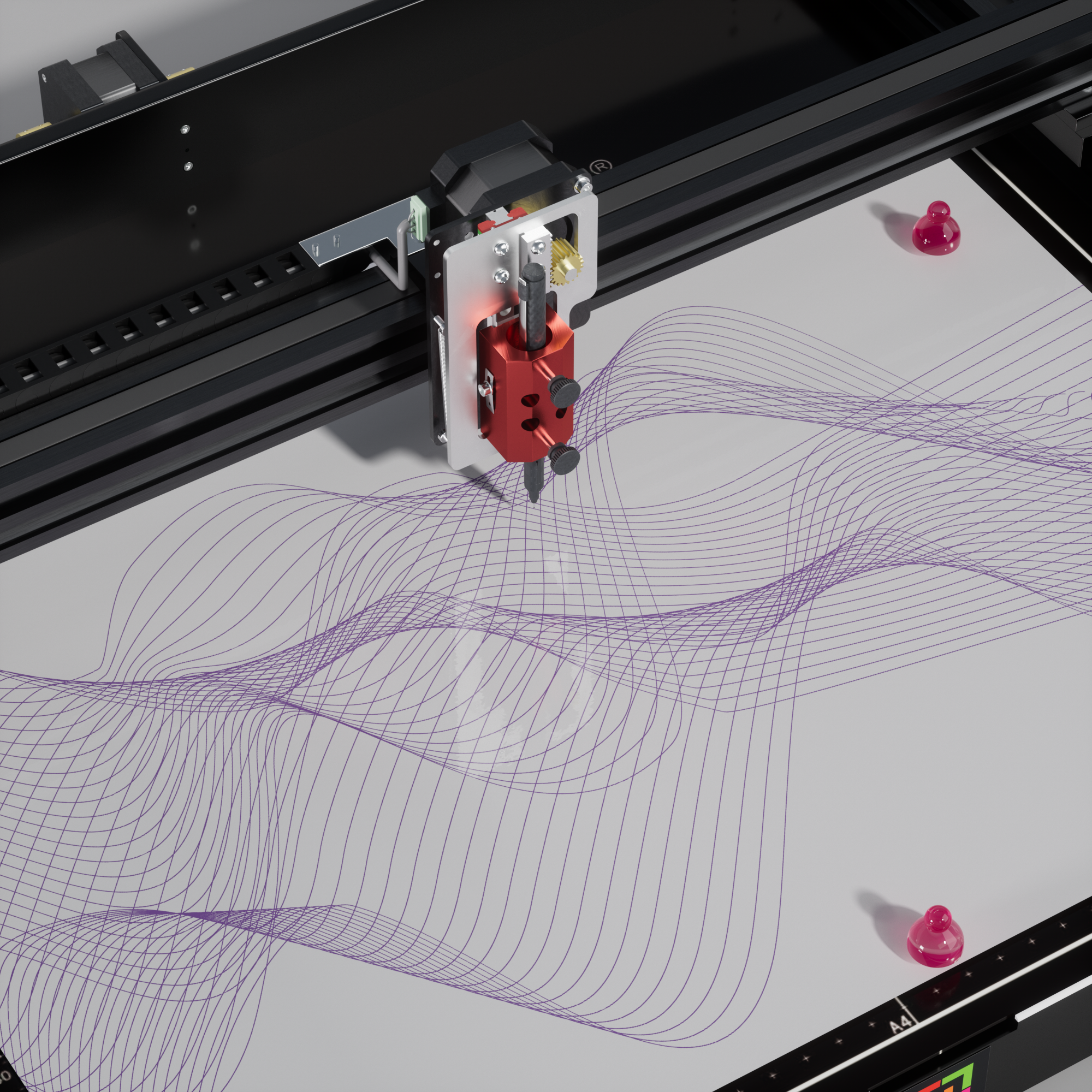

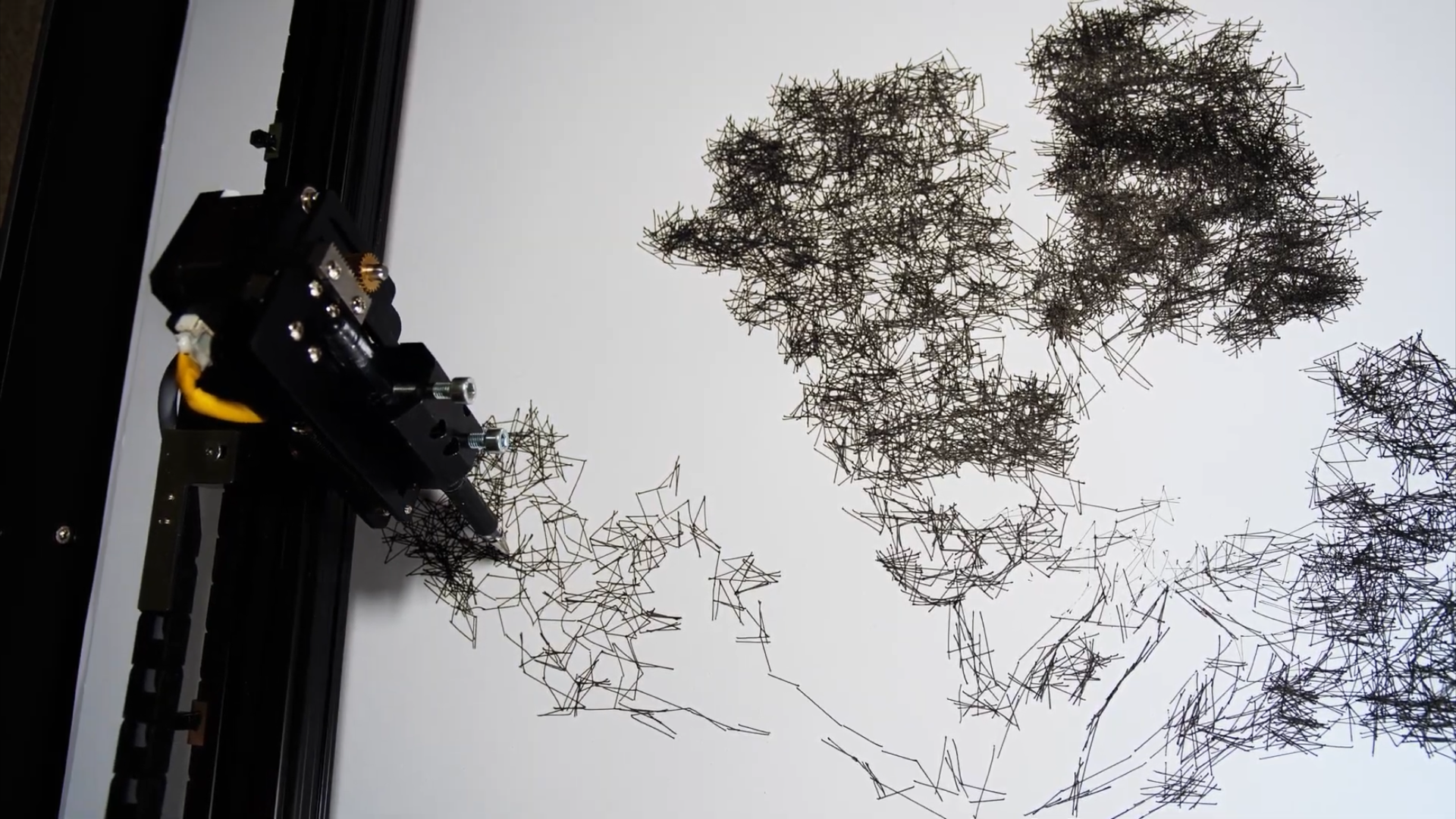

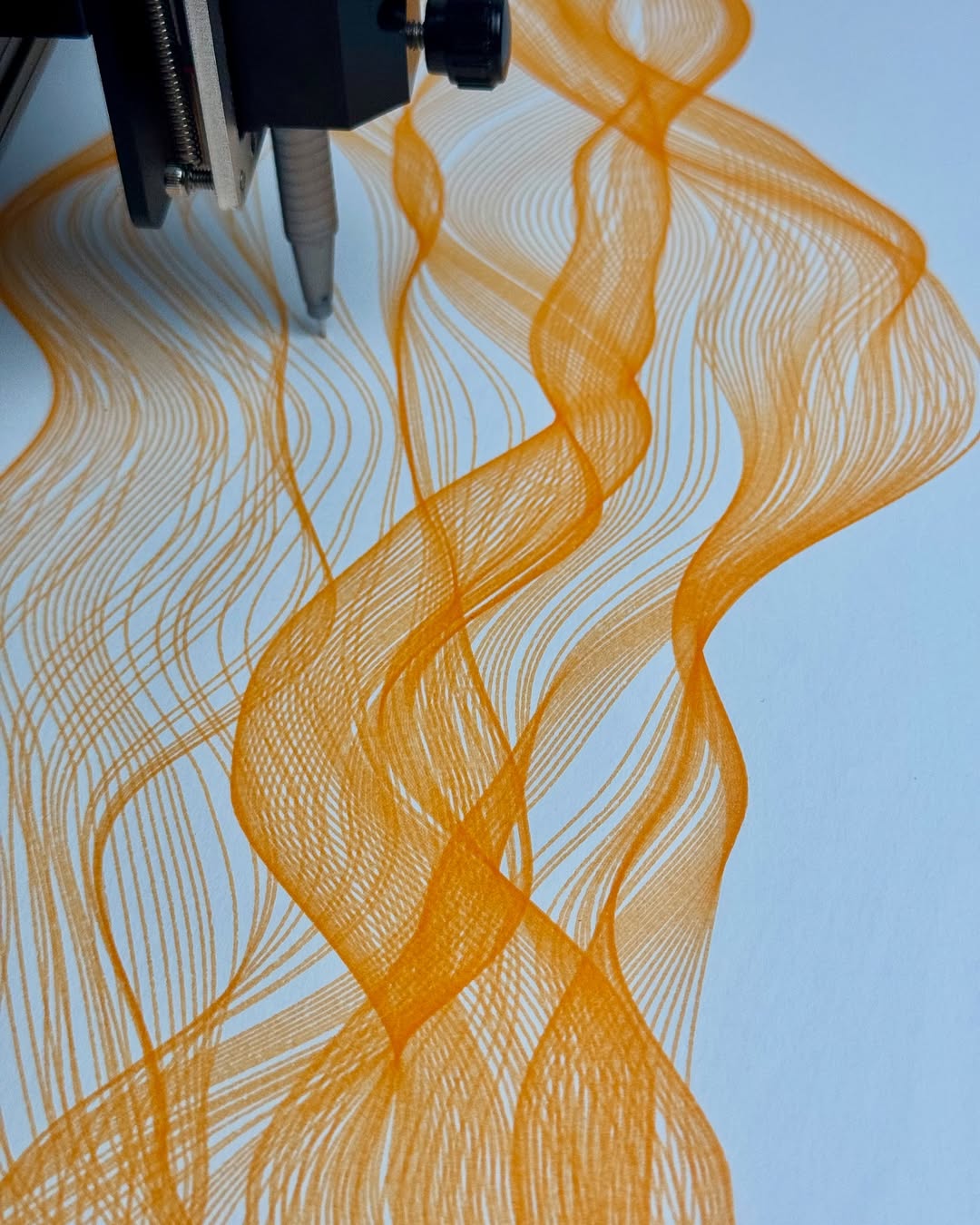

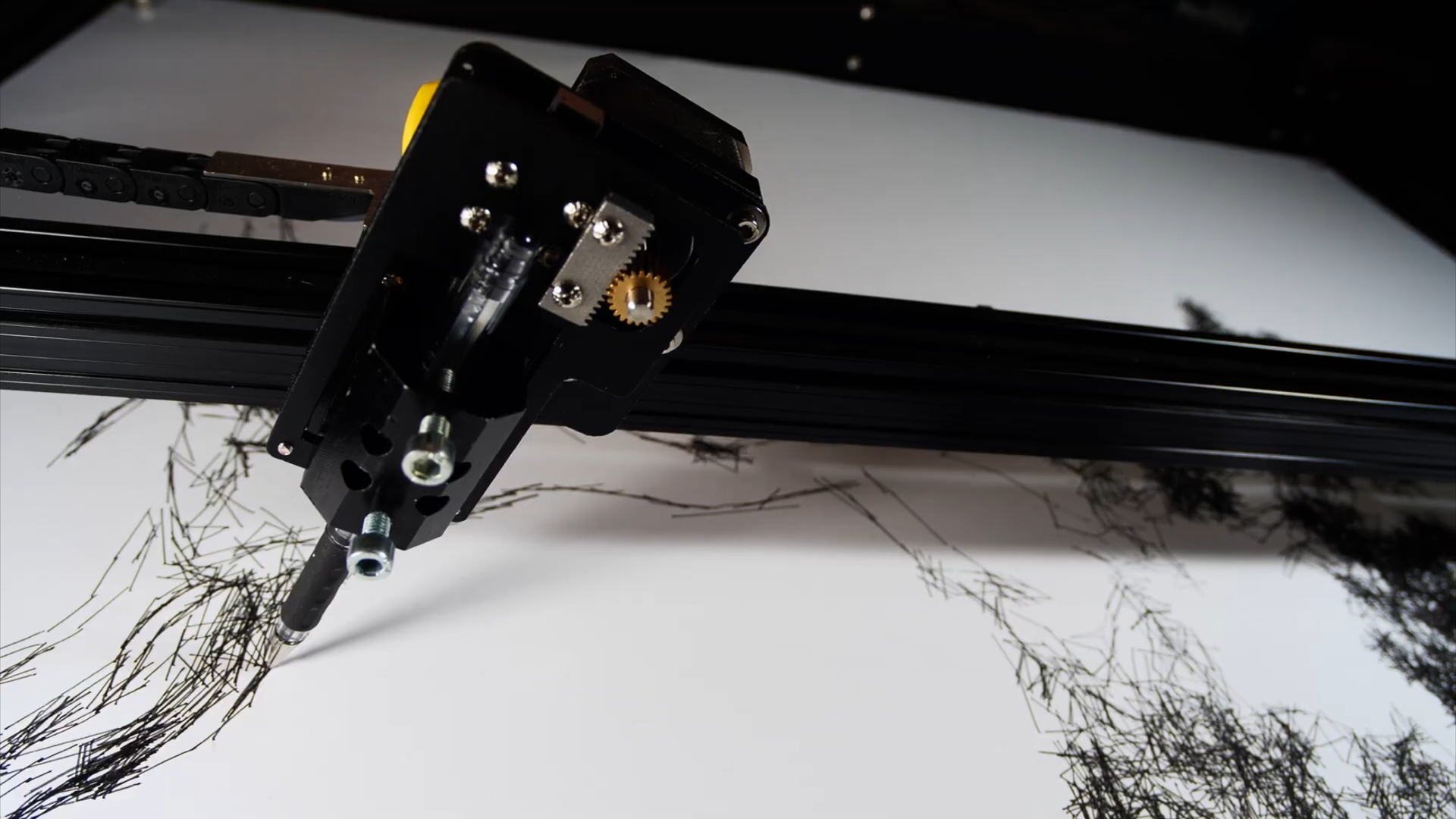

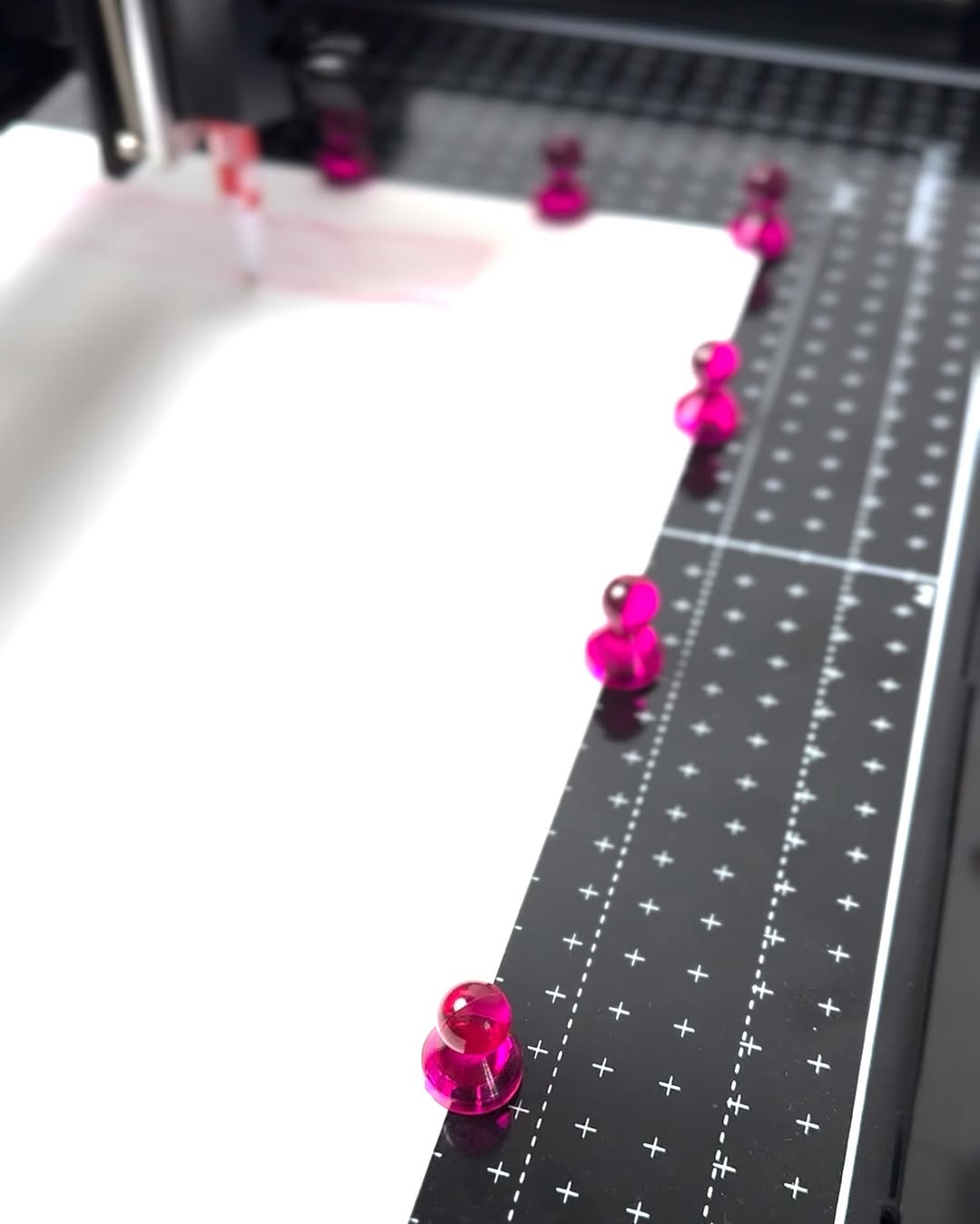

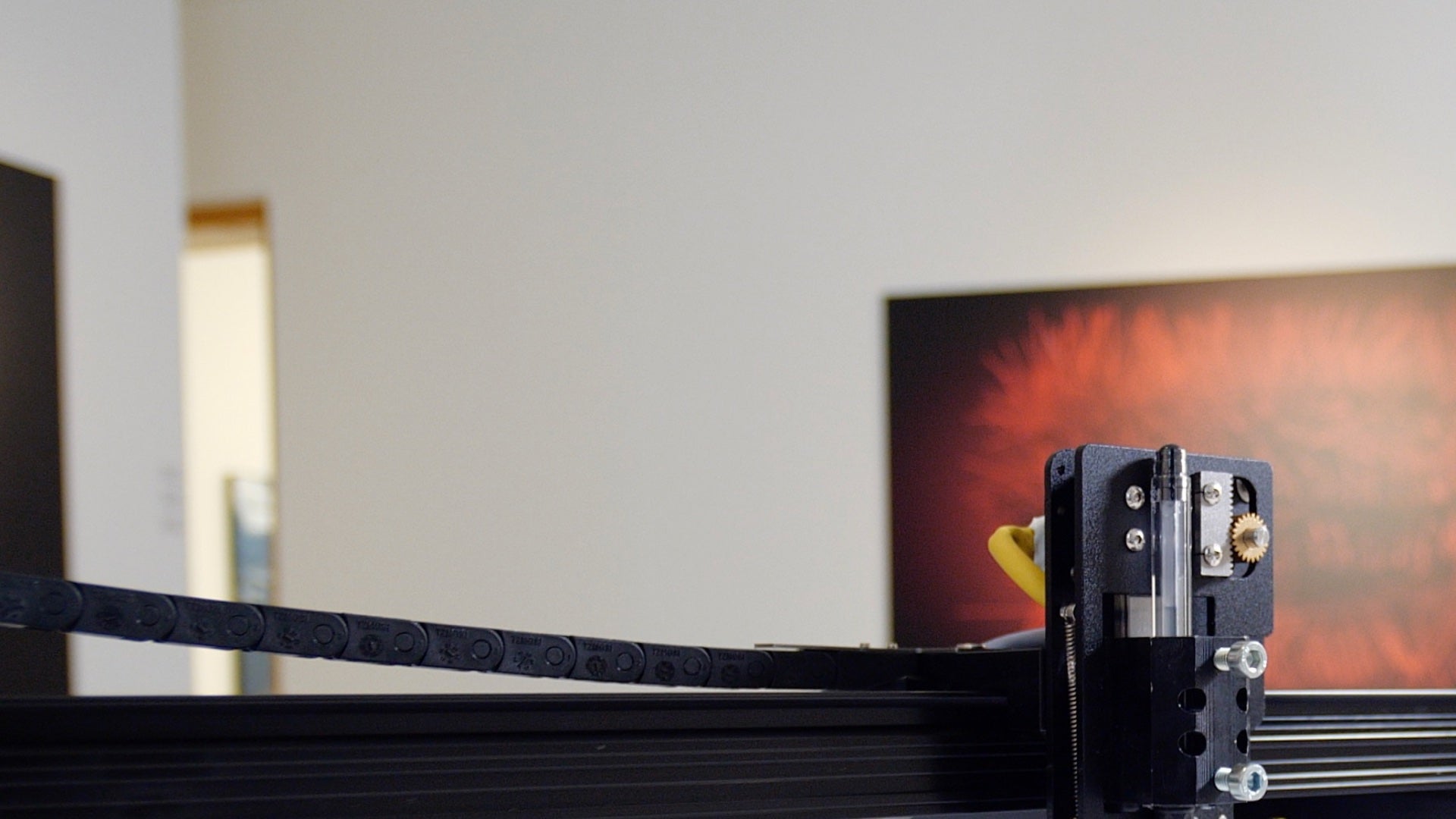

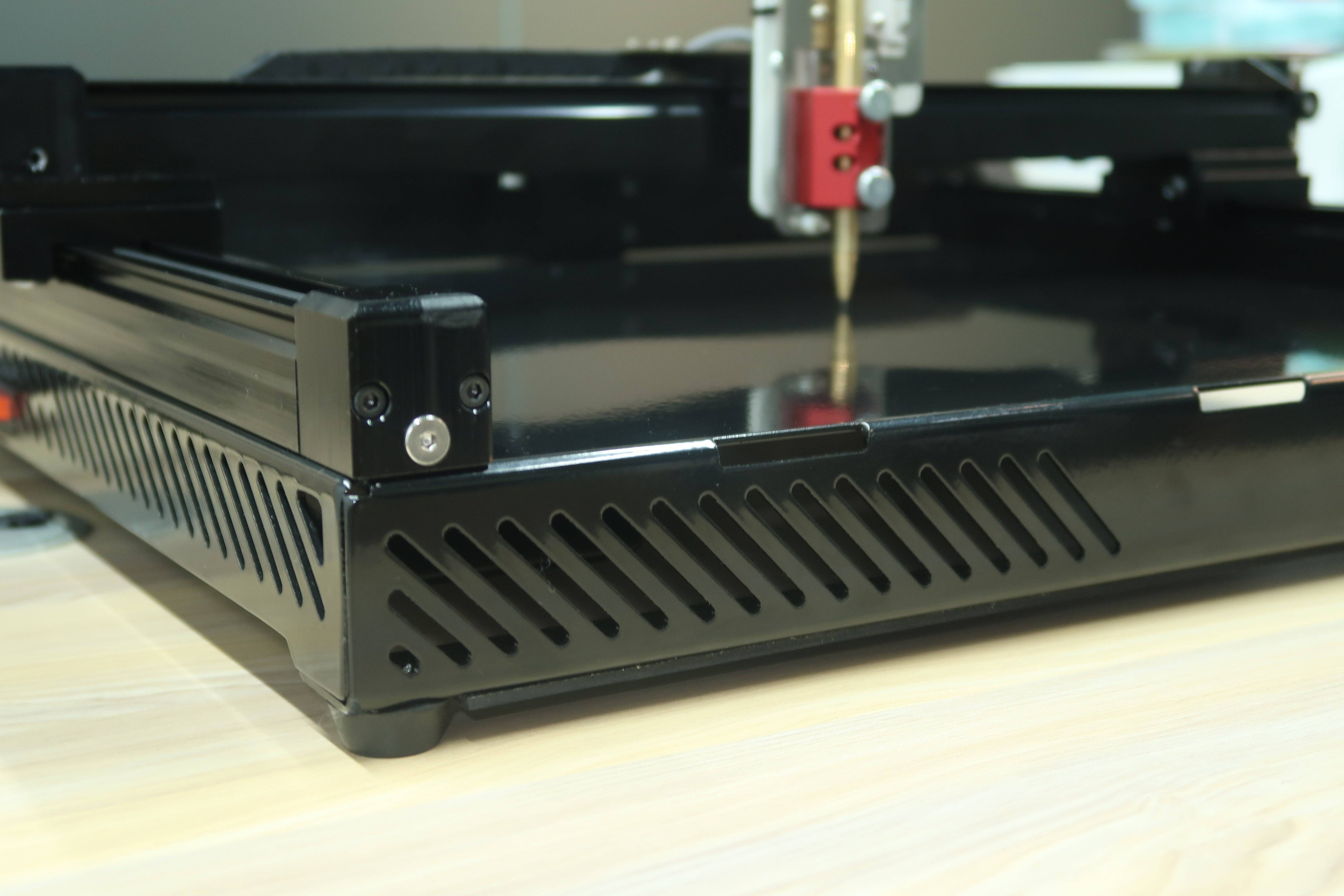

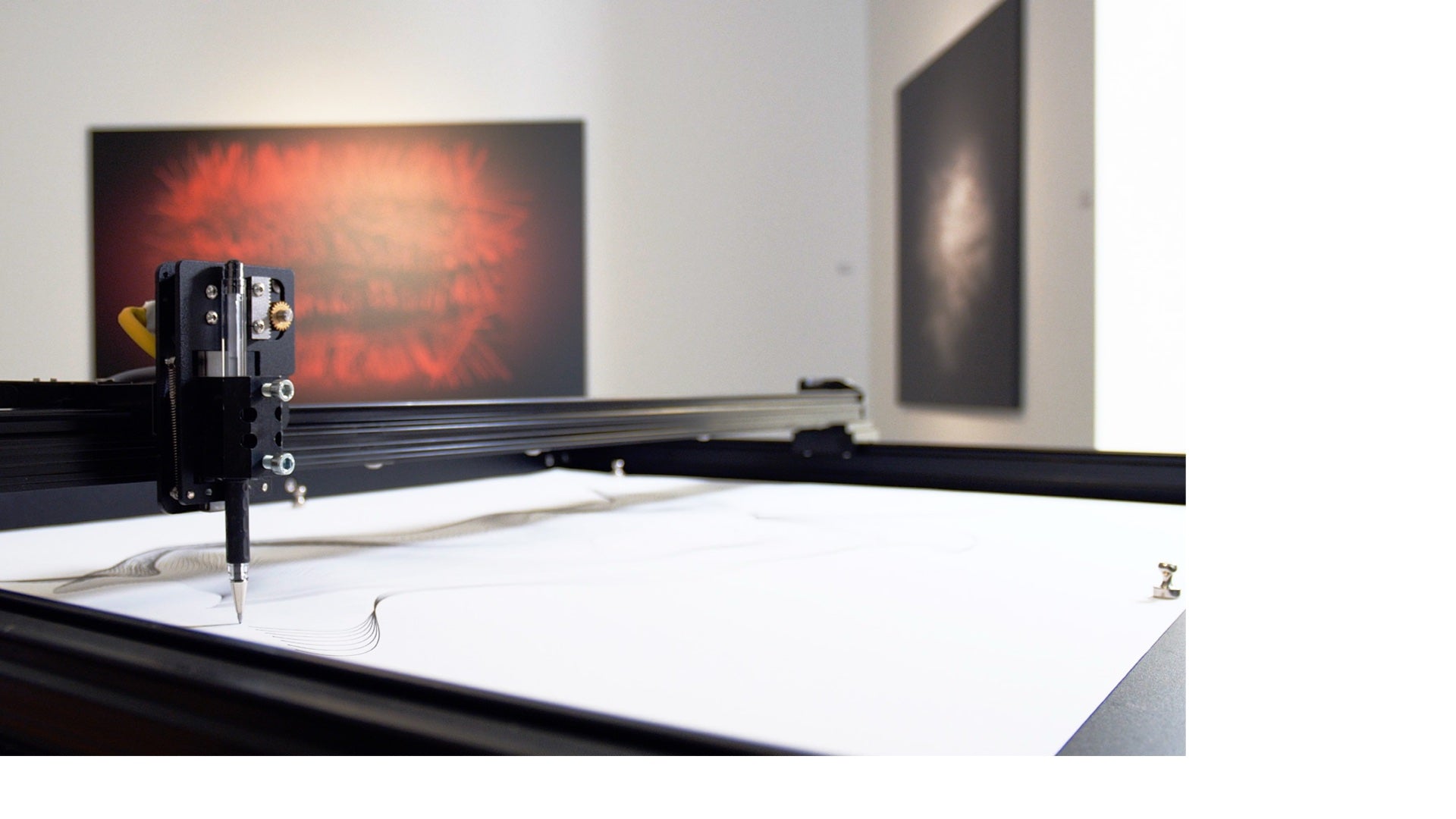

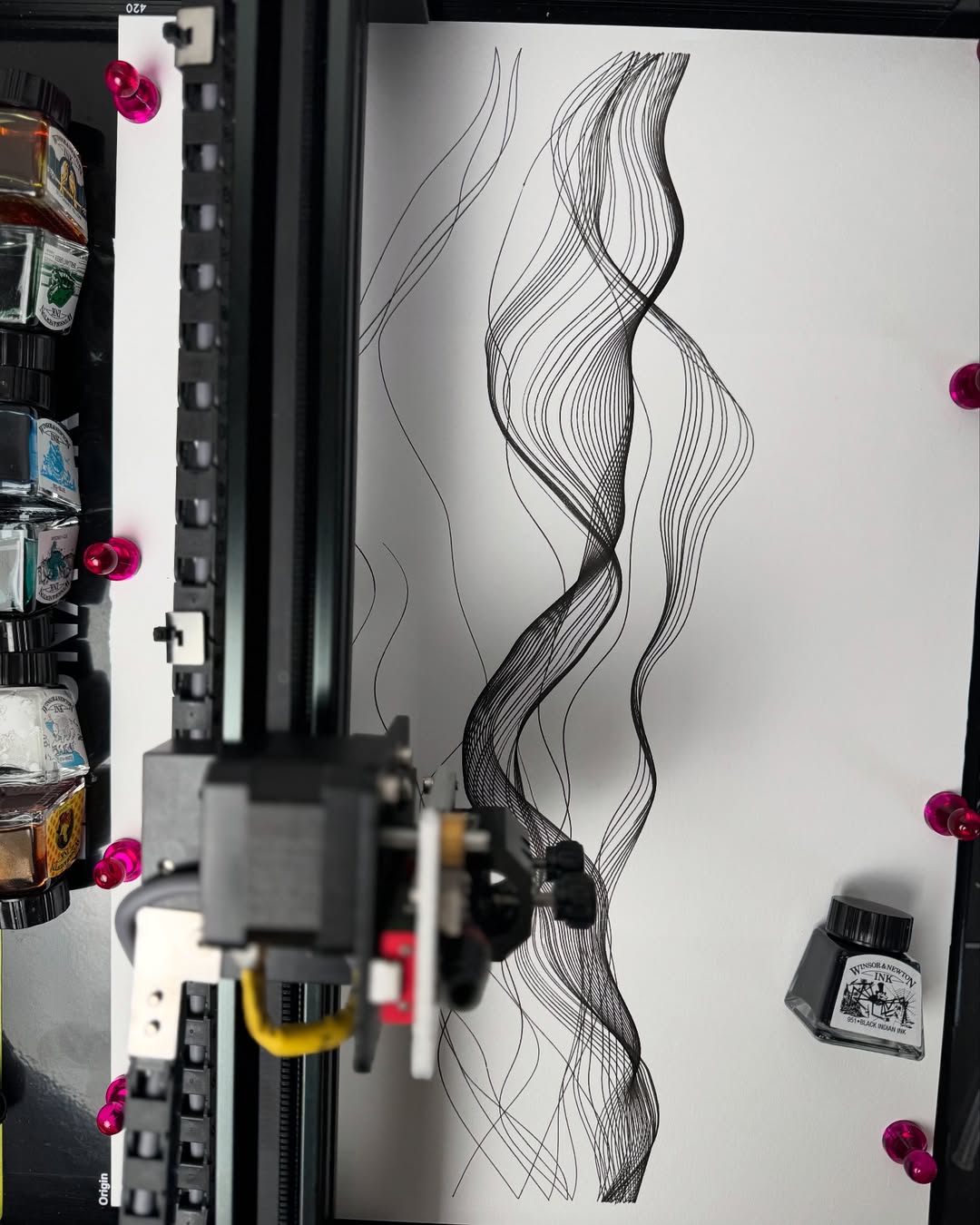

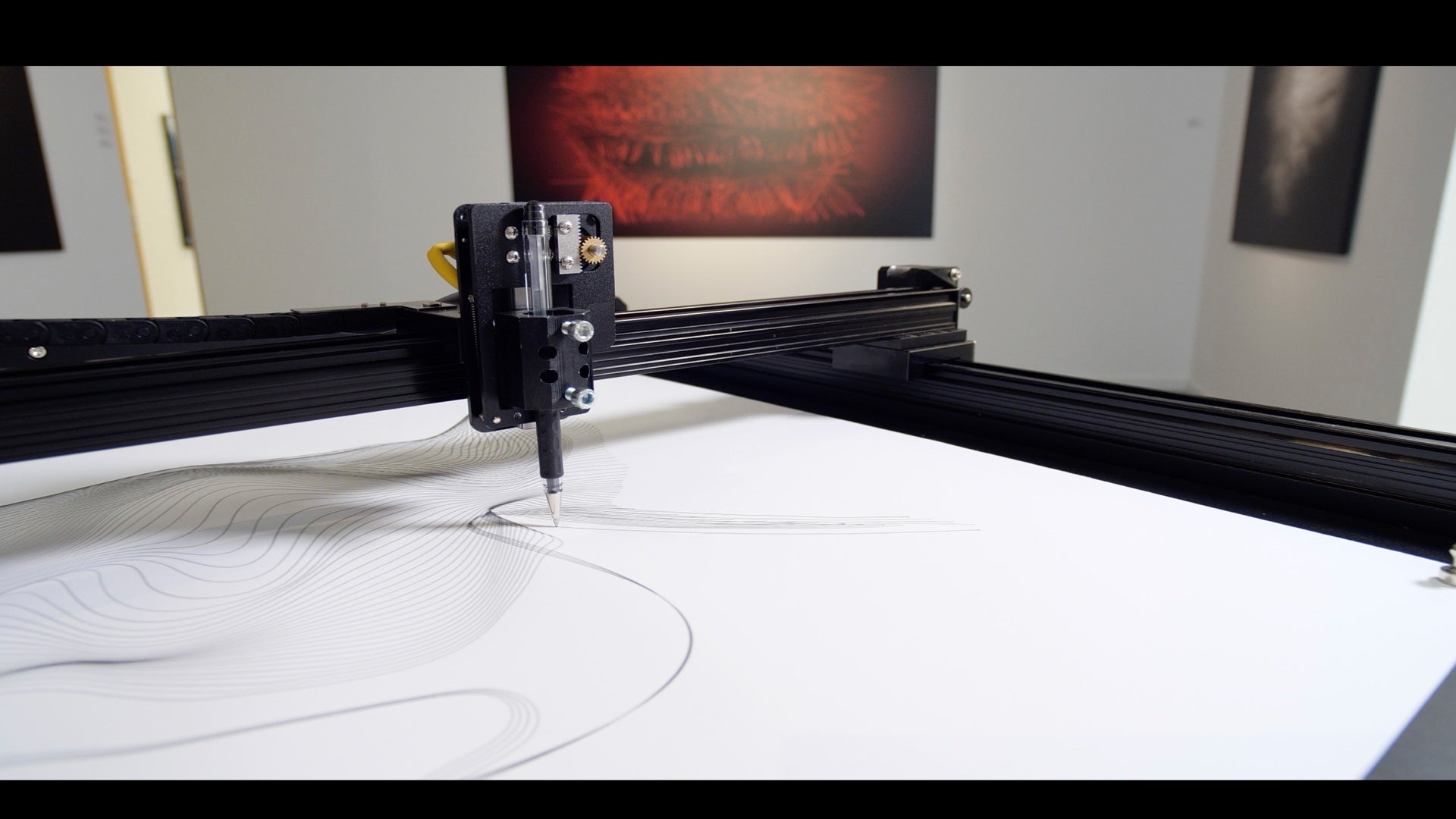

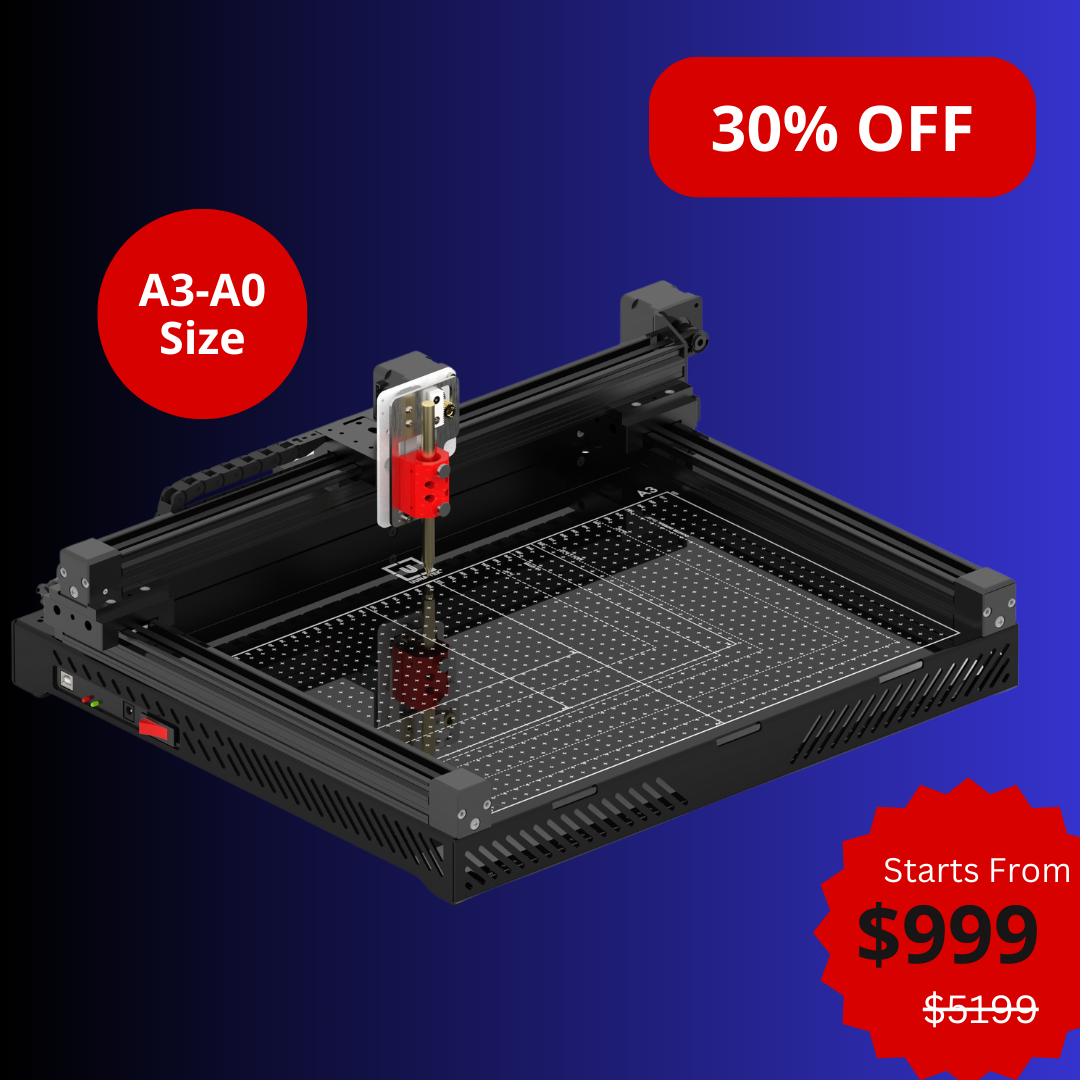

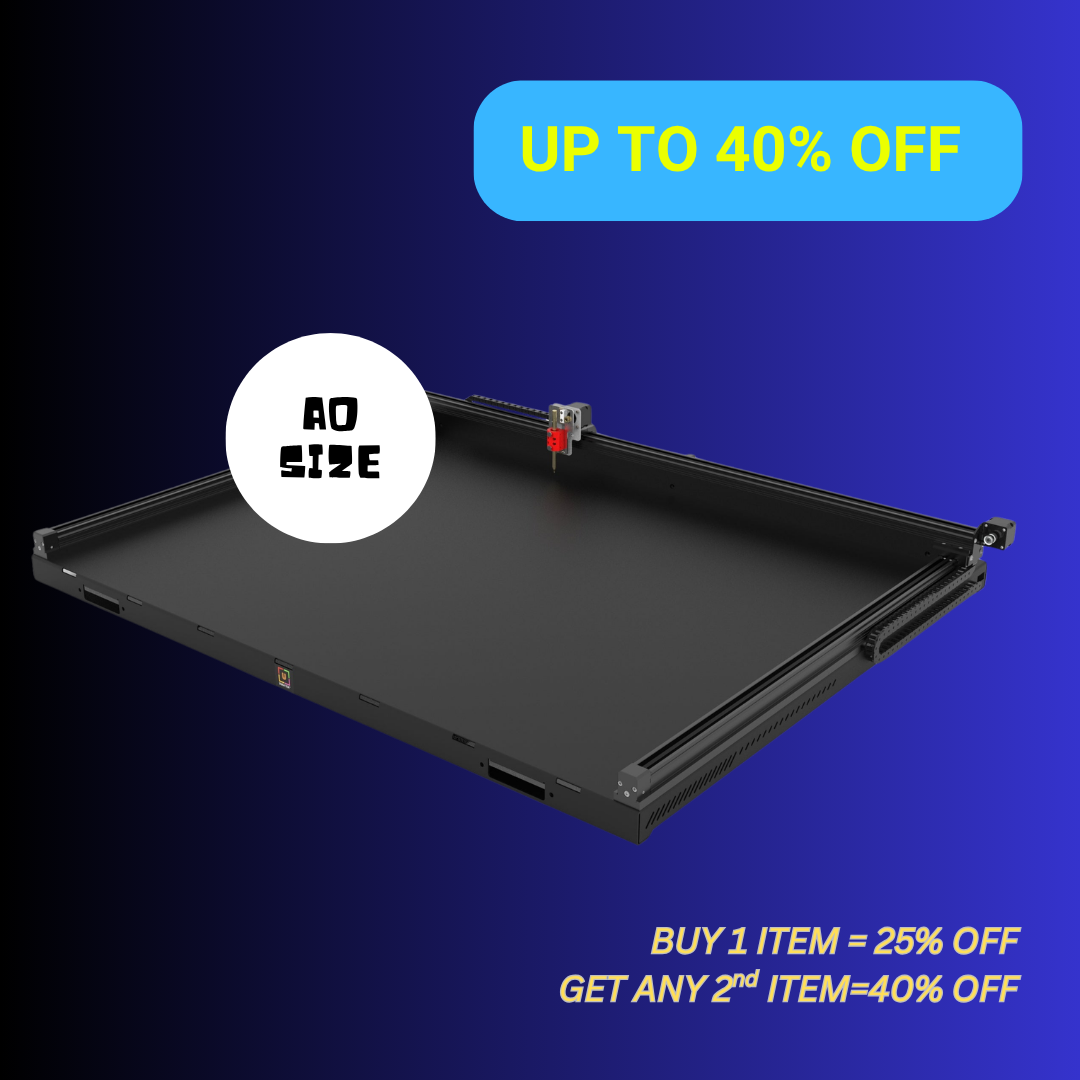

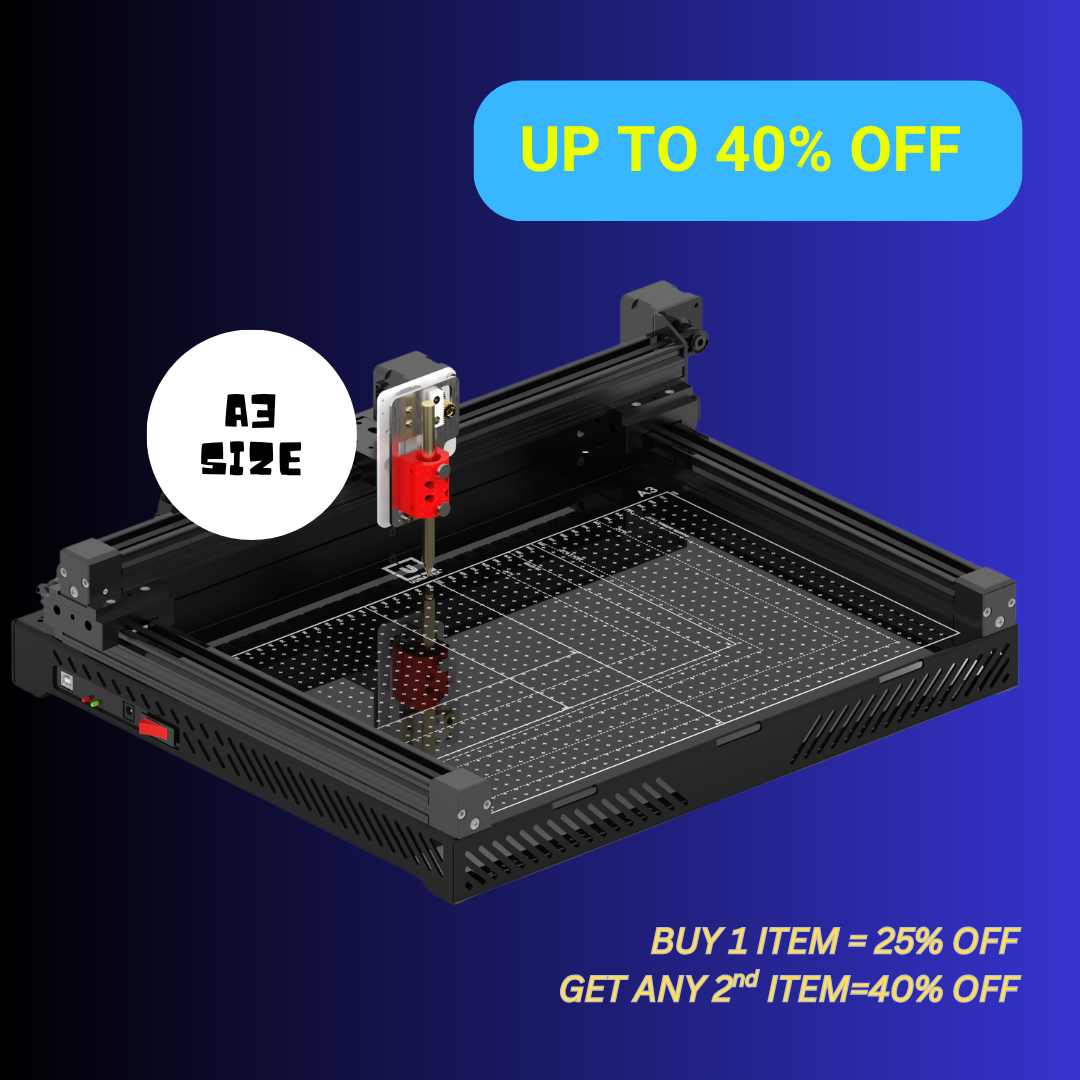

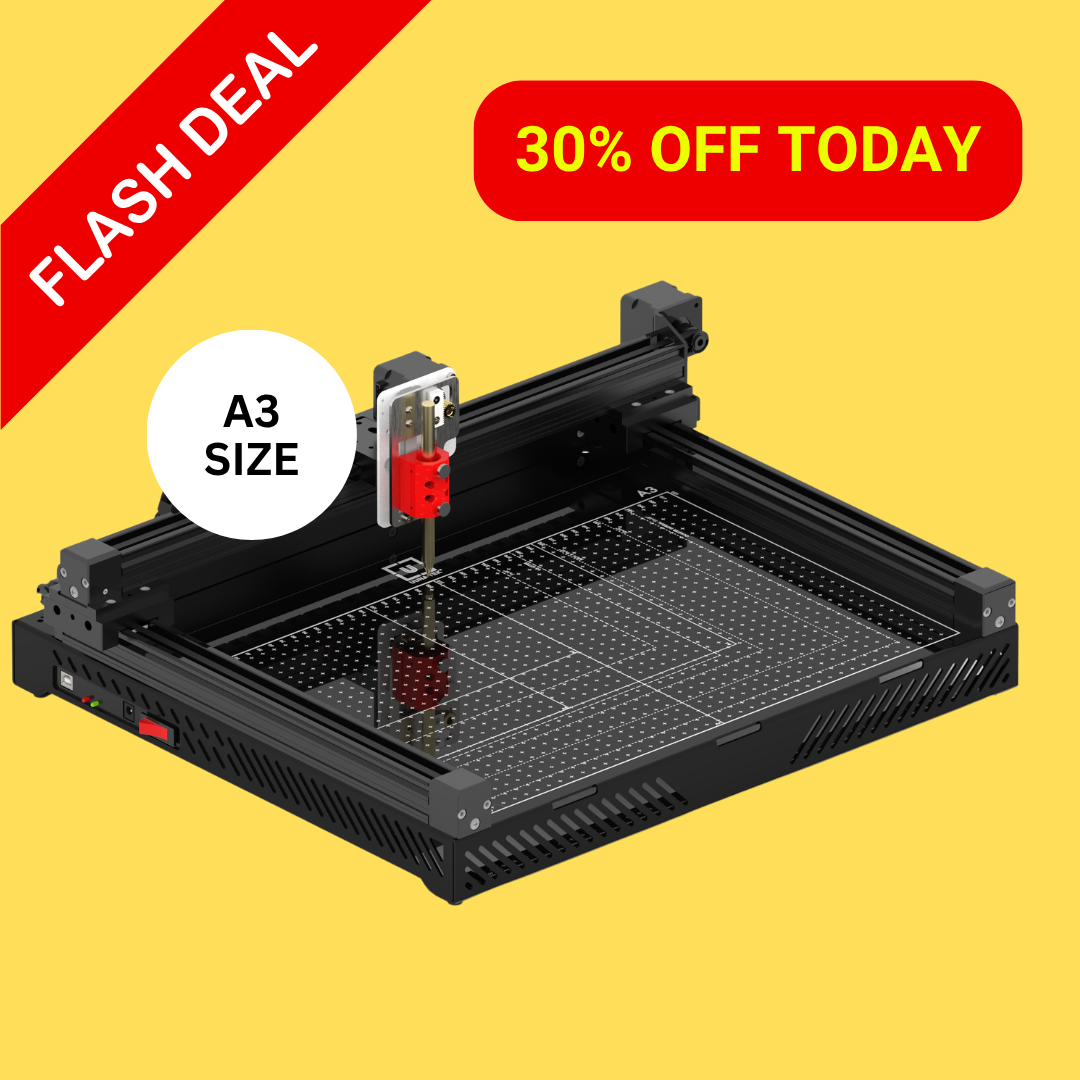

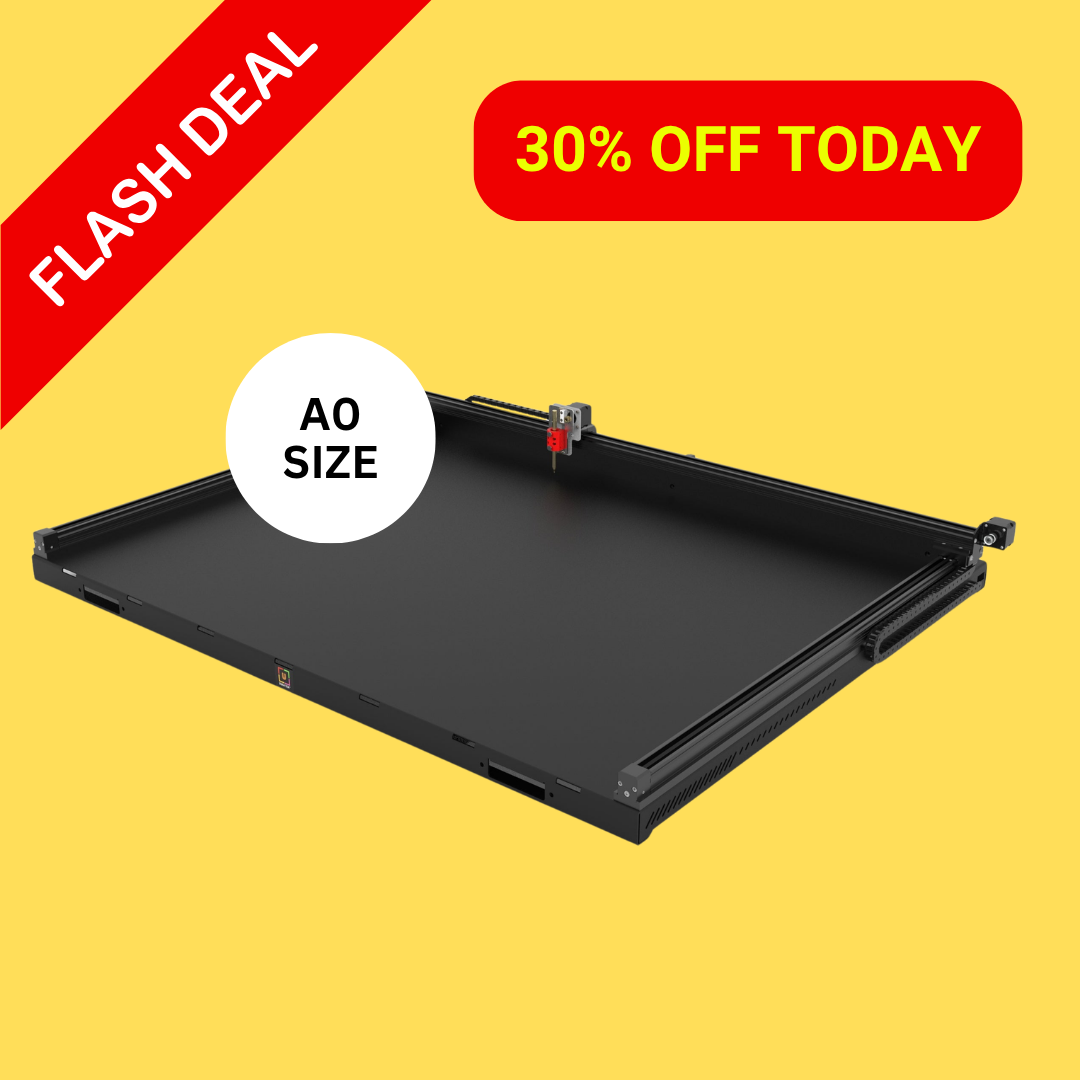

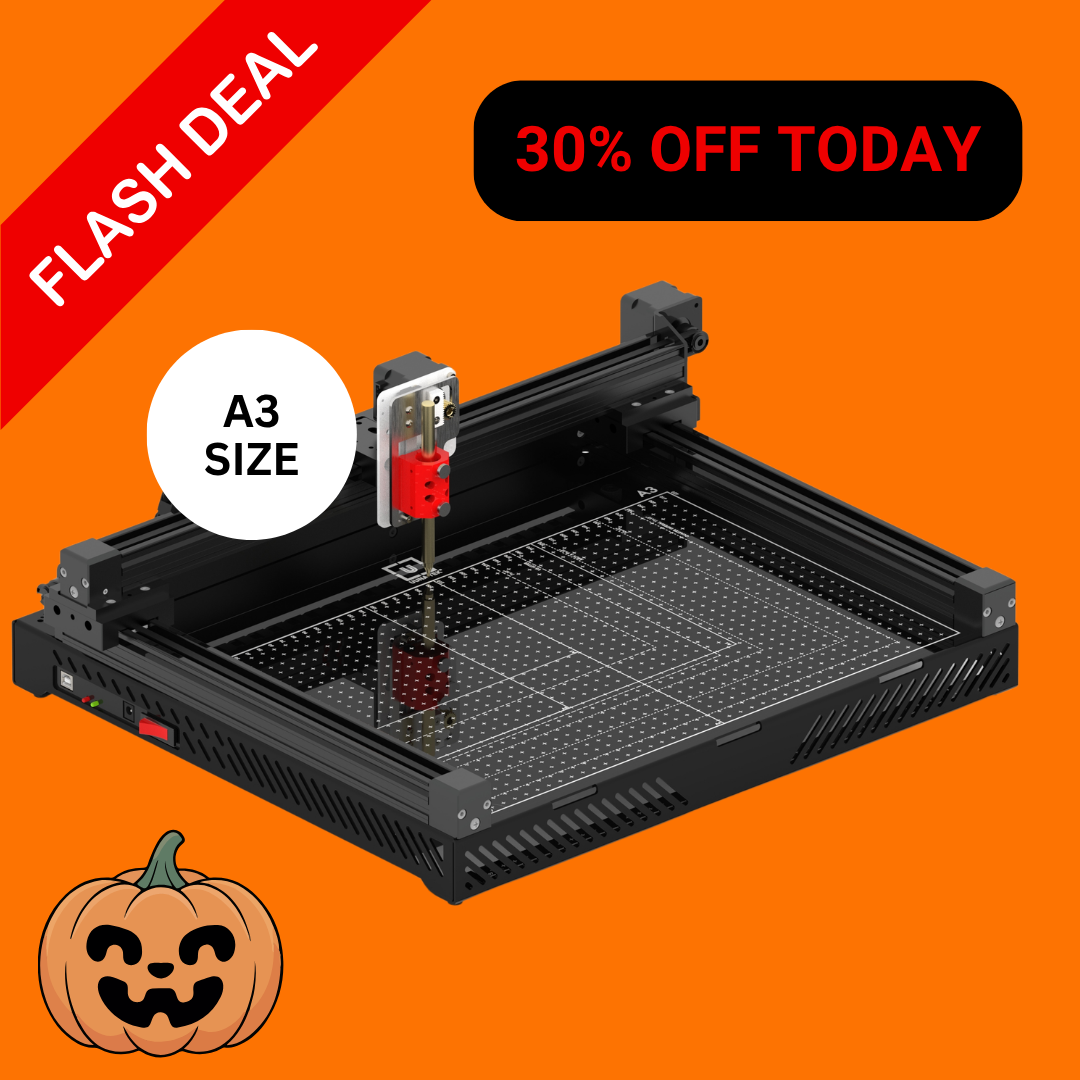

UUNA TEK 3.0 A3/A2/A1/A0/2X2M/4X2M High-end All-in-One Pen Plotter Drawing Robots
Quieter, Faster, and More Precise! The UUNA TEK 3.0 Highend Pen Plotter Drawing Robot is a state-of-the-art industrial-grade drawing robot designed for precision, efficiency, and ease of use, This is the first all-in-one pen plotter drawing machine of UUNA TEK. It requires no installation and can be used right out of the box. Engineered for high accuracy and low noise, it caters to a wide range of drawing and writing applications, providing users with a seamless and professional experience. Whether for detailed technical drawings, large-scale artwork, or intricate designs, the UUNA TEK 3.0 ensures exceptional quality and reliability.
Advantages of UUNA TEK 3.0 over Others
technical specifications
Frame Materials:
Q235 carbon steel+ Aluminum alloy
Motherboard:
GRBL-Board
Rated Voltage:
DC 12V - DC 24V
Repeat Positioning Accuracy:
±0.1mm-0.02mm
Power Adapter Rated Voltage:
Input: AC 110V - AC 230V
Output: DC 12V
Rated Power:
20W
Rated Current:
12V 3A
24V 2A
Weight:
≈10 kg
Package Dimensions:
A3 Size: 575×450×194mm;
A2Size: 758×580×194mm;
A1 Size: 1018×785×205mm;
A0 Size: 1366×1030×205mm
Maximum Writing Thickness:
30mm (up to 40mm with modification)
Maximum Writing Area:
A3: 420×297mm
A2: 594×420mm
A1: 841×594mm
A0: 1189×841mm

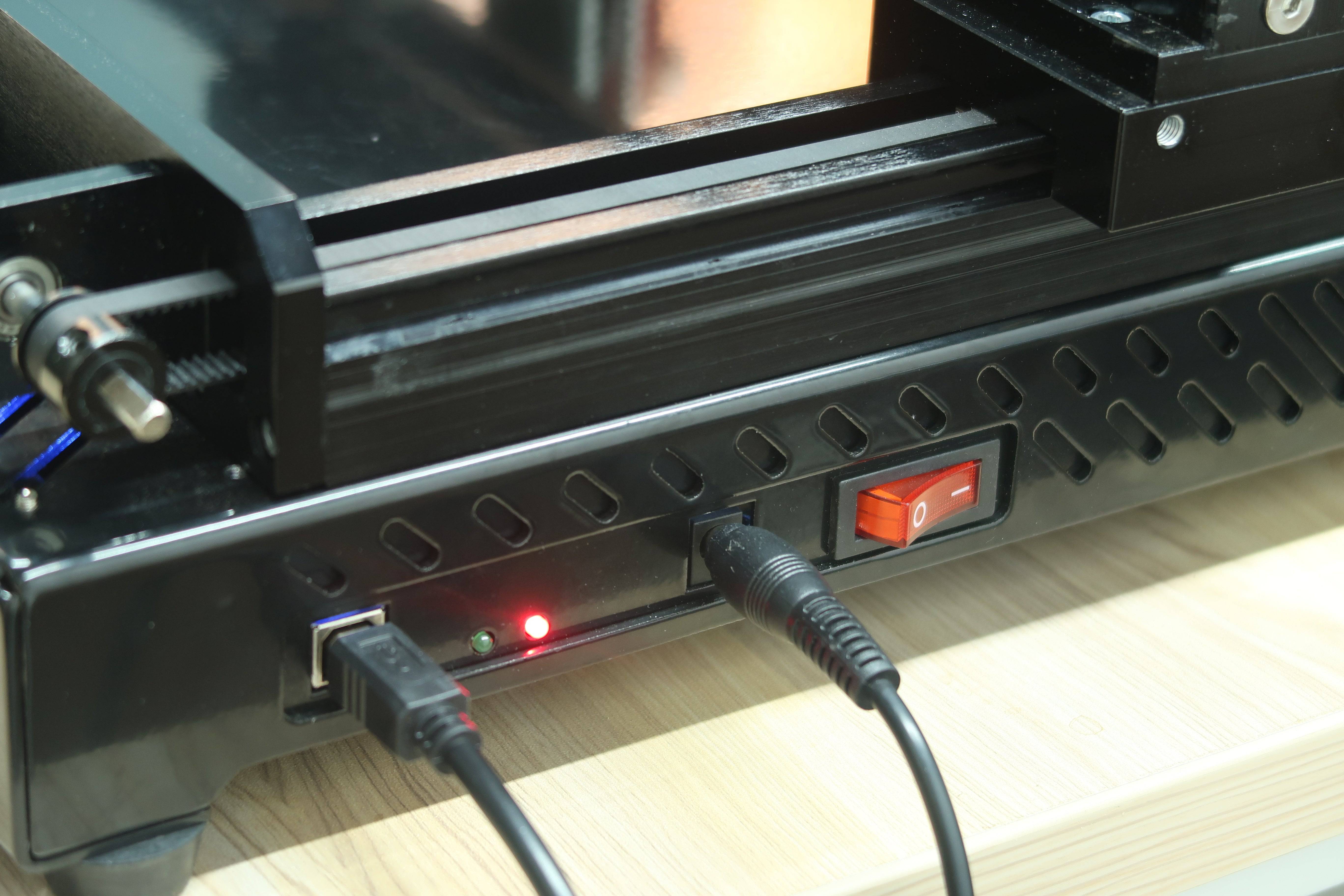

Connectivity

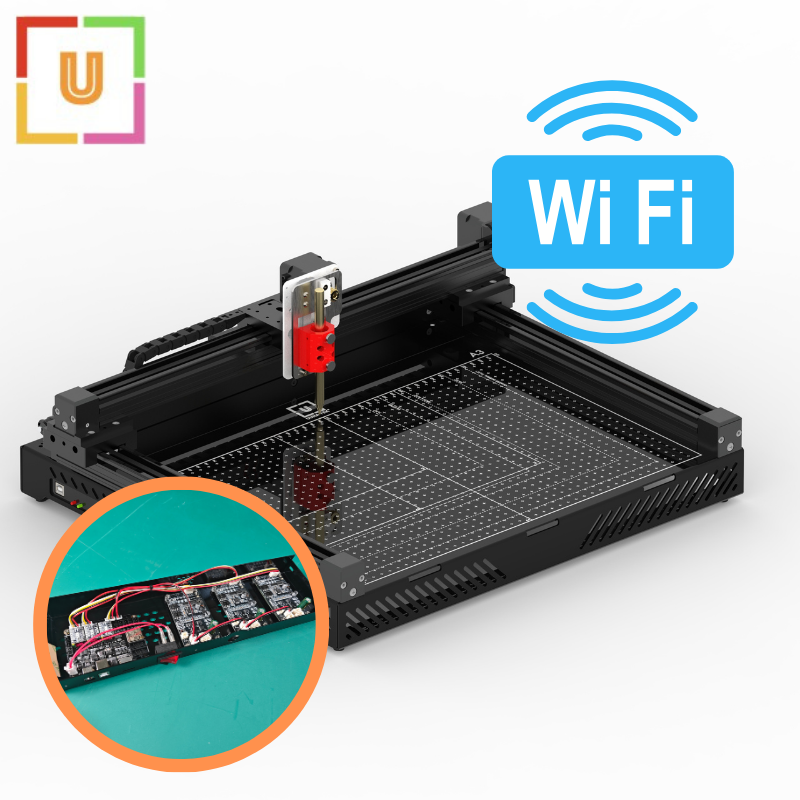

USB Cable in Default, WiFi can be customized
Memory Card
YES
Software
UUNA TEK Software
G-Code
Support, serial port Uart protocol
OS
Windows in Defualt, Mac will be released soon.
Limited Switch:
Customizable
Adjustable Angle for Pen
Support(0°-90°)
Operating Temp.:
-20-55℃
Input Format:
SVG/DXF /JPG/PNG/BMP/PDF

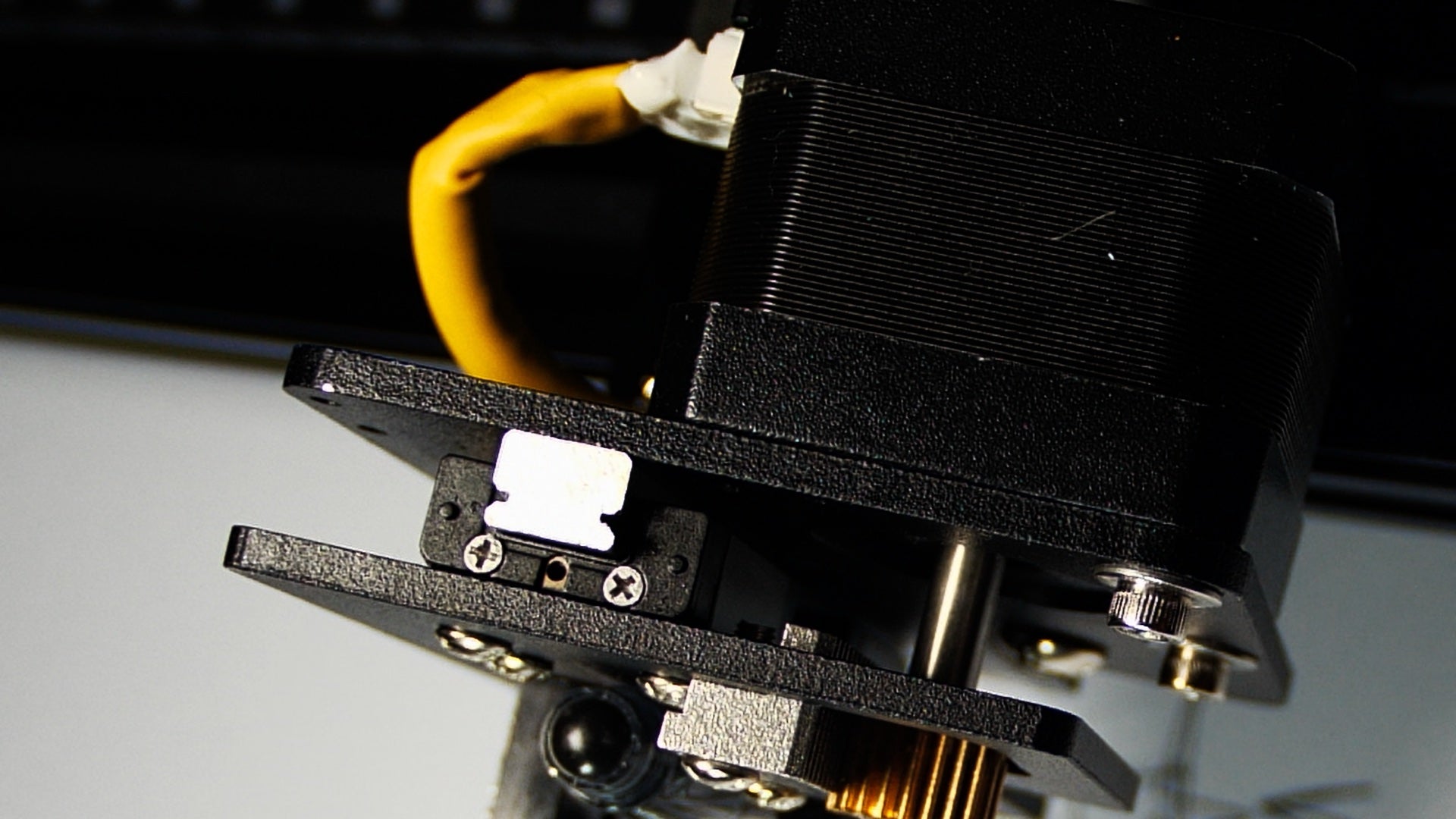

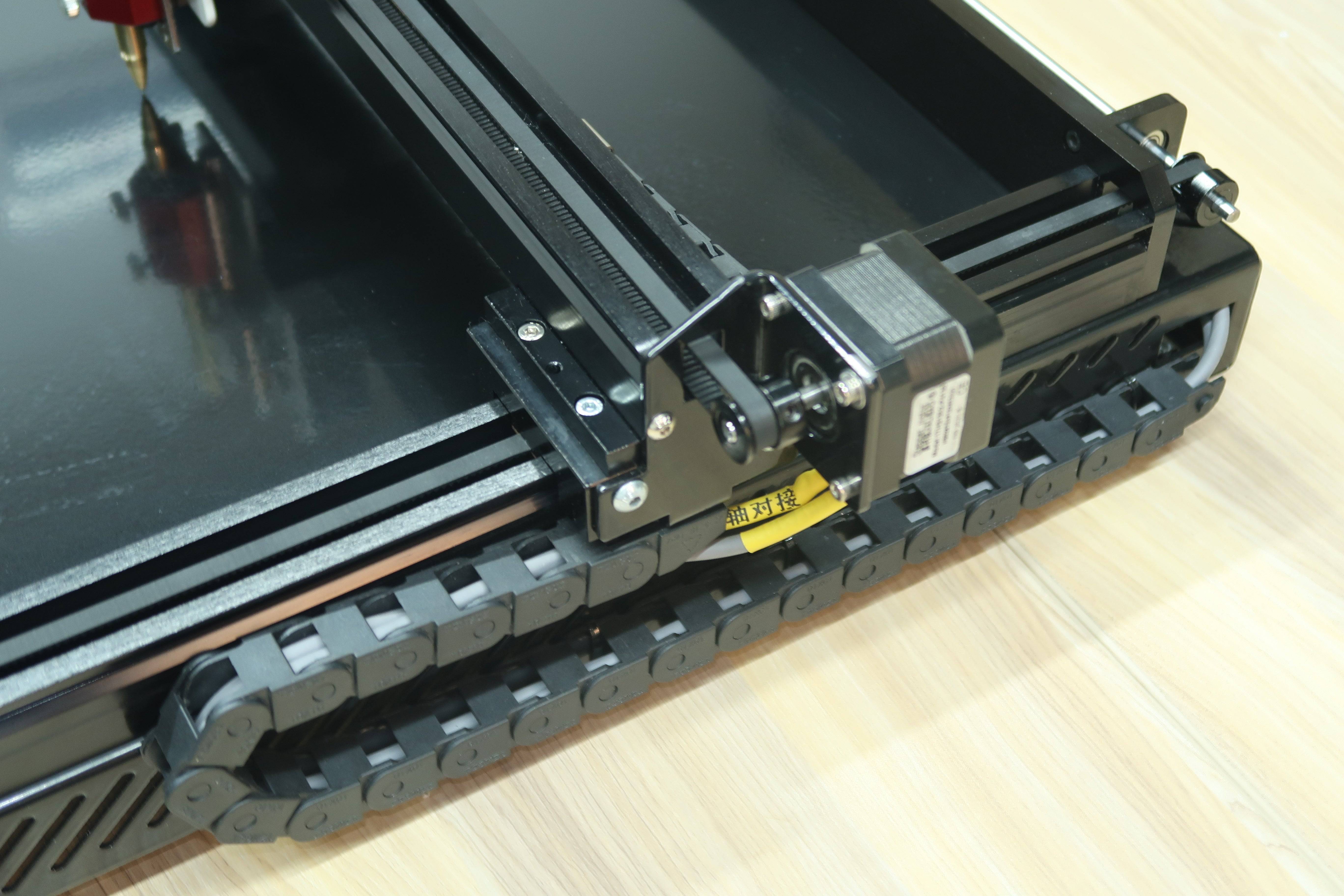

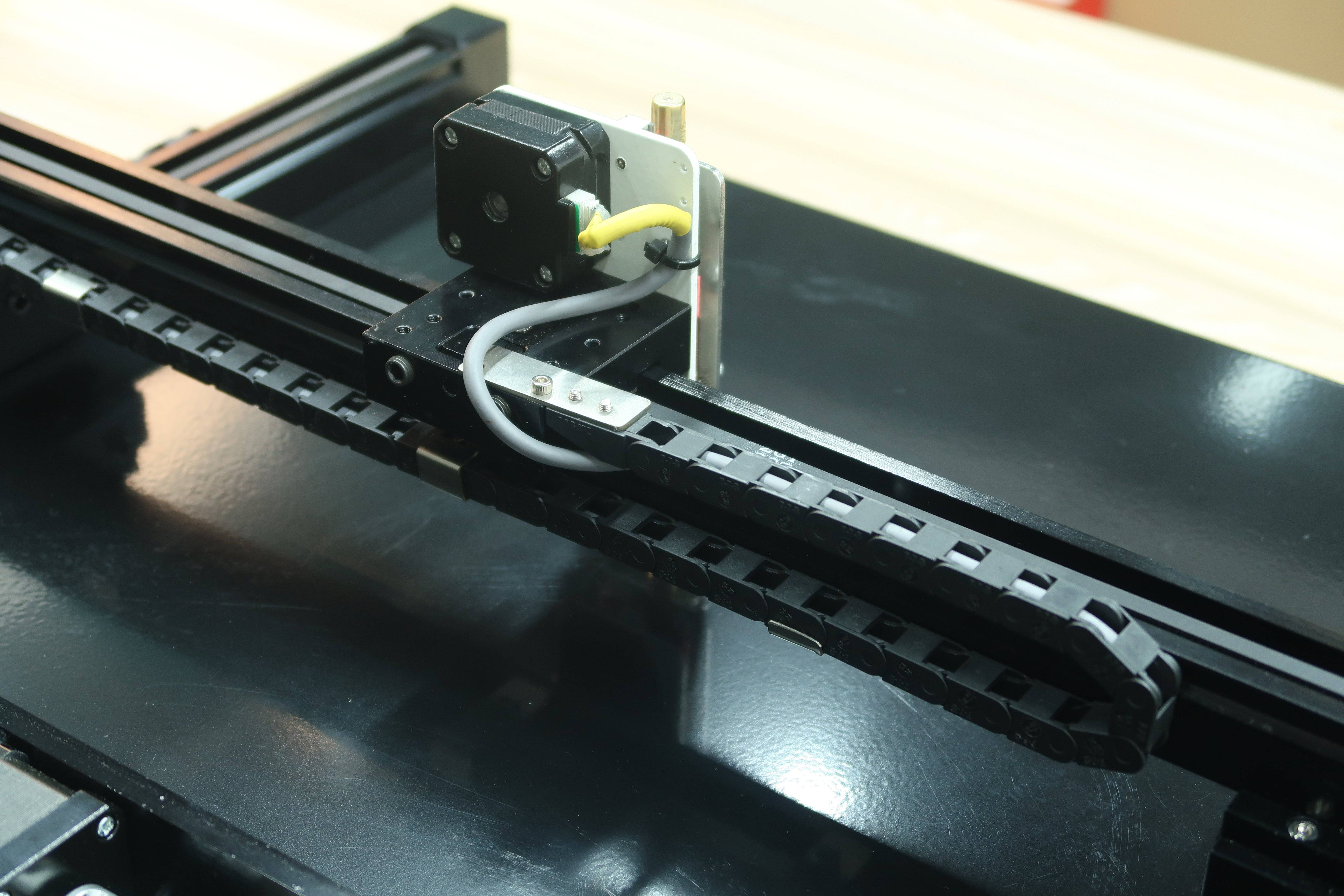

Motors:
X:42-stepper motor
Y:42/57 stepper motor
Z:42 stepper motor

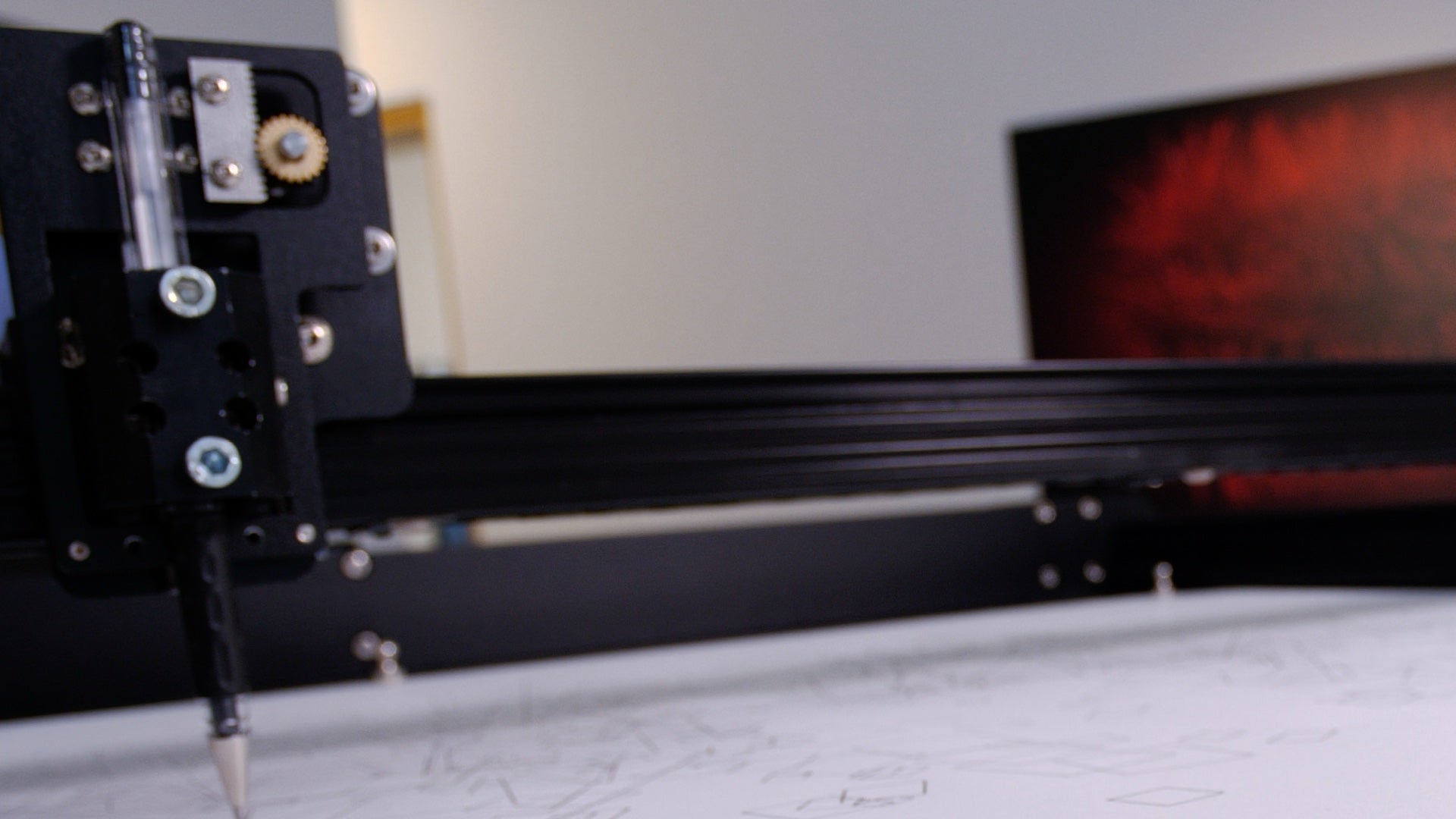

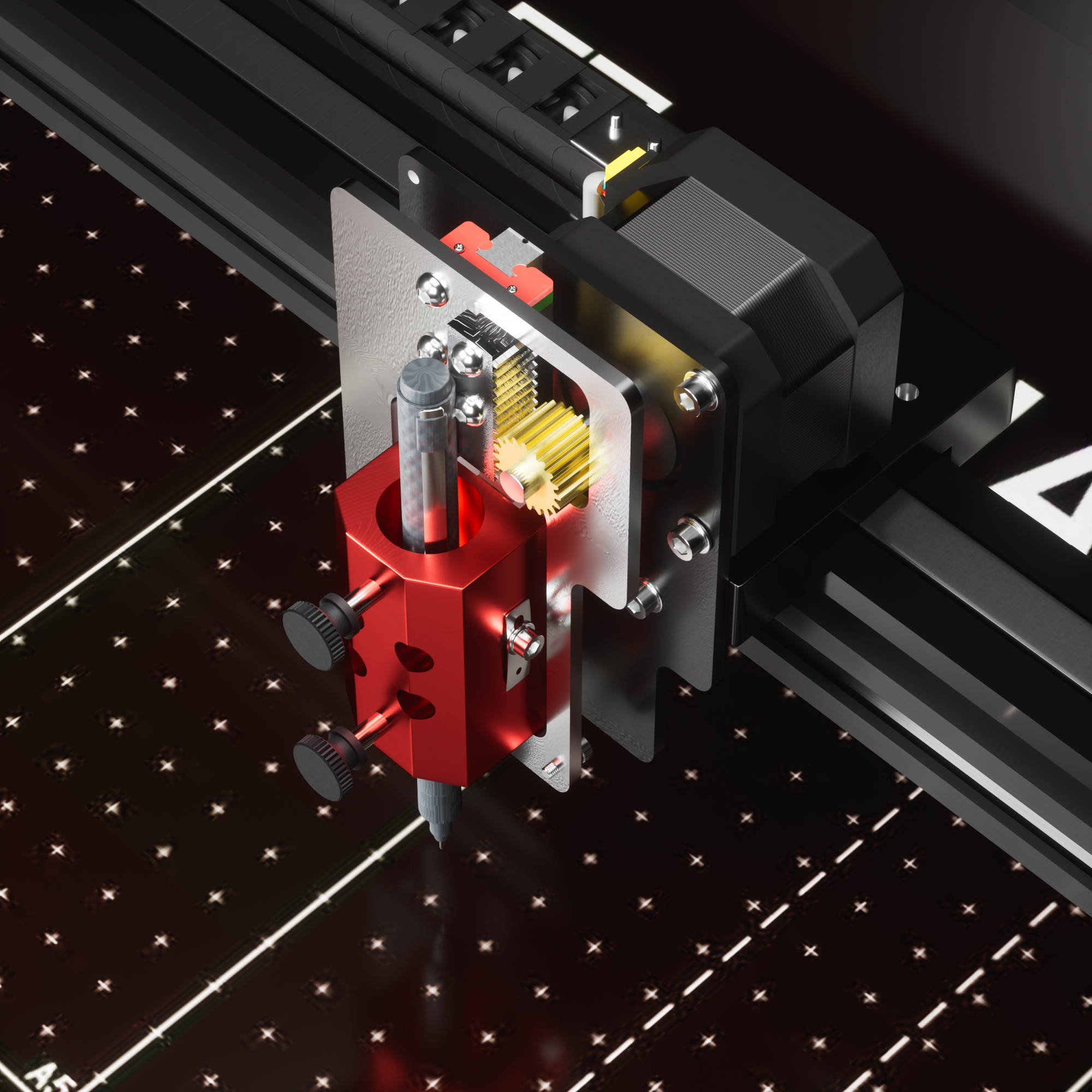

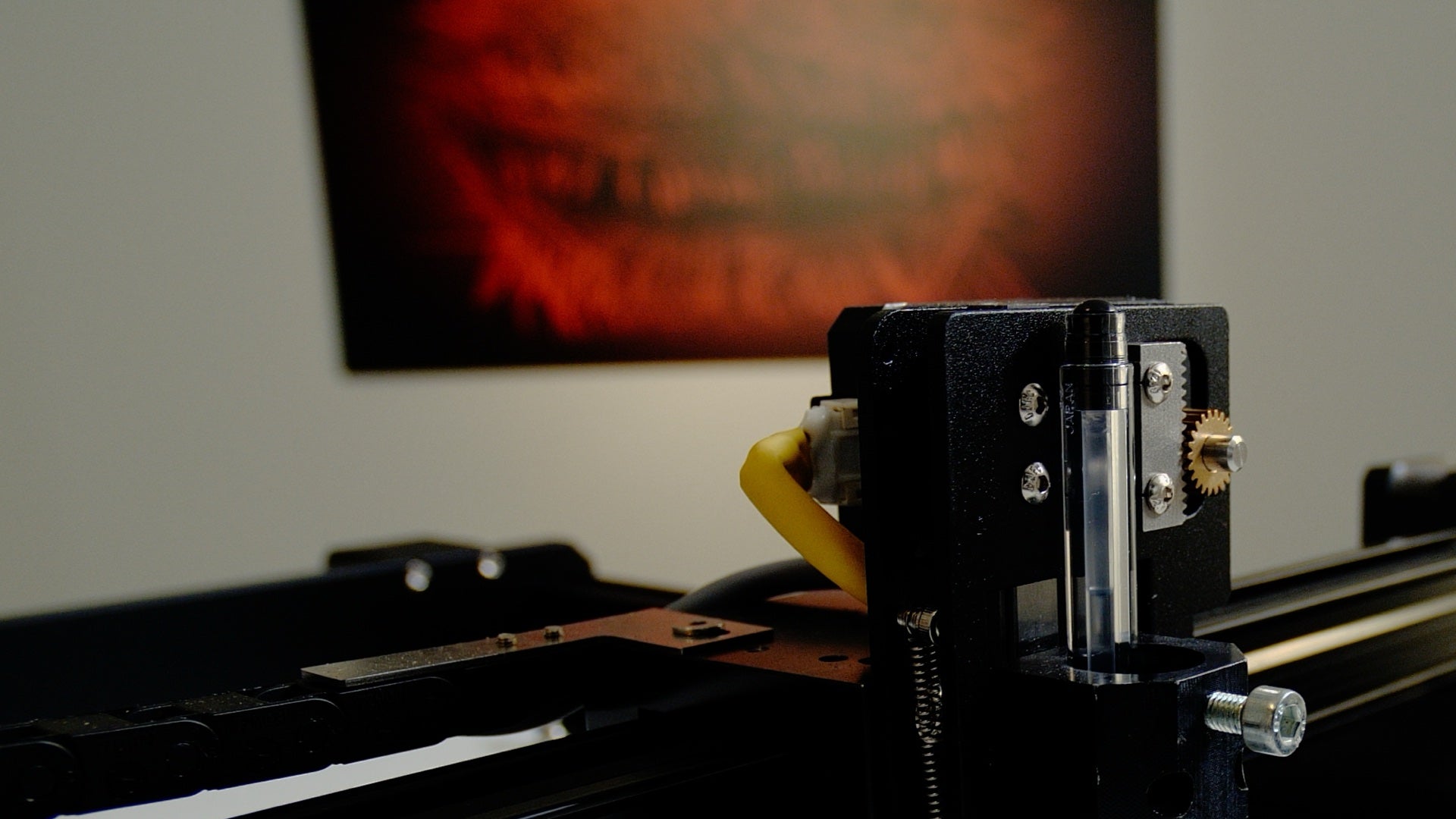

Pen Holder Width
Support Any Pen within 17.5mm Width
package inclusions
- UUNA TEK 3.0 Pen Plotter ×1
- Accessory Kit ×1
Speed Modes
1. Maximum Speed Parameters in High-Speed Mode for Writing
Maximum Moving Speed (mm/min)
Maximum Acceleration (mm/s²)
X-Axis
20000 mm/min
6000
Y-Axis
20000 mm/min
2000
Z-Axis
20000 mm/min
4000
Note:
High acceleration increases operational noise and decreases precision. Exceeding the above speed parameters may lead to abnormal operation. Increased noise levels may result in positioning errors, motor step loss, and stalling. If higher speeds are required, consider upgrading to larger motors to increase torque.
2. Recommended Standard Mode Parameters (Default Mode)
Maximum Moving Speed (mm/min)
Maximum Acceleration (mm/s²)
X-Axis
15000 mm/min
2000
Y-Axis
15000 mm/min
2000
Z-Axis
8000 mm/min
2000
3. Recommended Drawing Mode Parameters for Drawing
Maximum Moving Speed (mm/min)
Maximum Acceleration (mm/s²)
X-Axis
12000 mm/min
500
Y-Axis
12000 mm/min
500
Z-Axis
12000 mm/min
2000
Note:
These parameters ensure accuracy in curve and arc drawing while maintaining straight line drawing speed. This mode effectively reduces machine vibration and noise levels, providing smooth operation for small arc and curve drawings and enhancing drawing precision.
4. Recommended Silence Mode Parameters for Special Environment Requirement
Maximum Moving Speed (mm/min)
Maximum Acceleration (mm/s²)
X-Axis
10000 mm/min
1000
Y-Axis
10000 mm/min
1000
Z-Axis
8000 mm/min
1000
Note:
The installation method of the pen has a great impact on the mute effect. For the installation method of the pen, please refer to the pen installation video. It is recommended to use the auxiliary adjustment plate (round or square acrylic sheet) provided with the pen and set the pen drop position in the software settings to 3.
