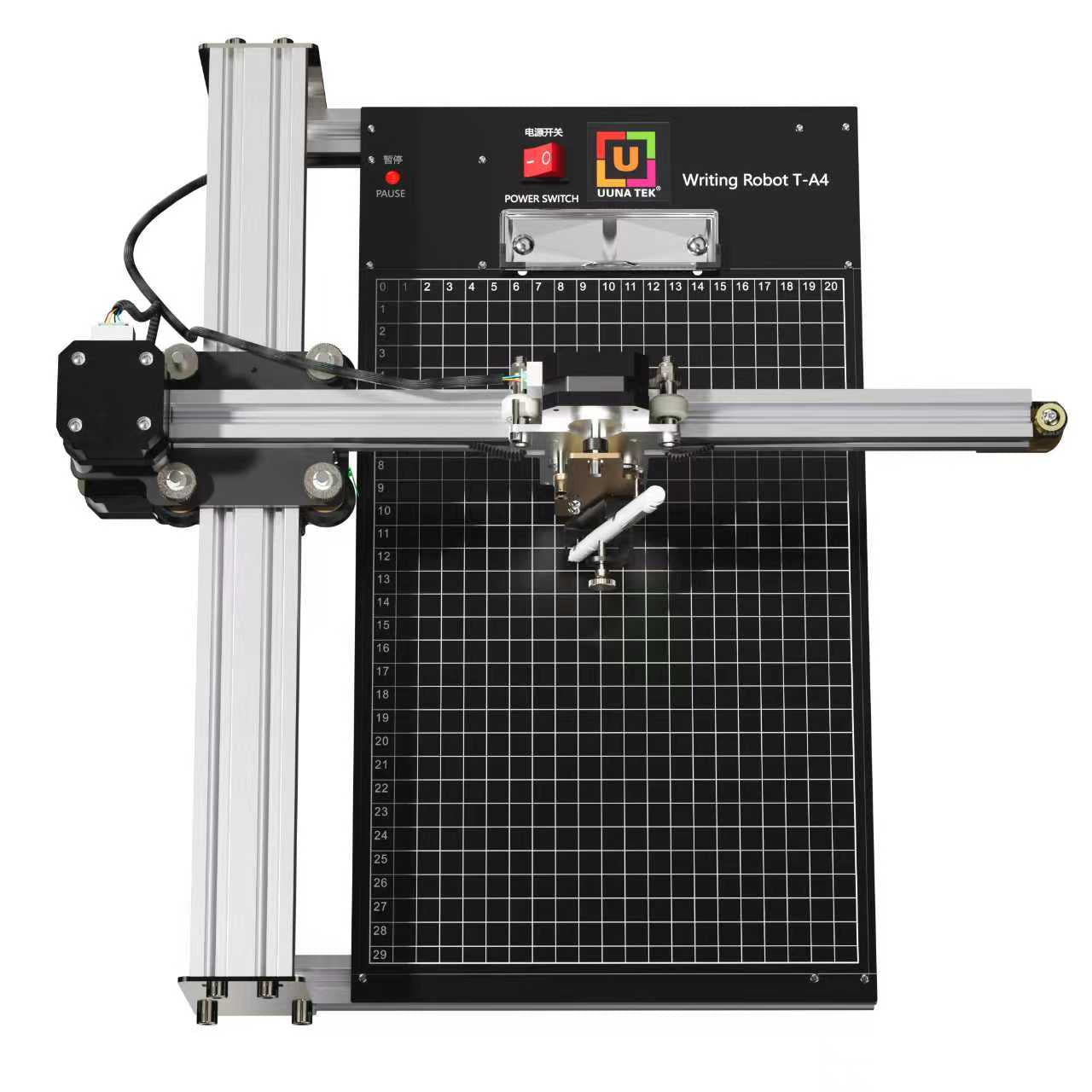

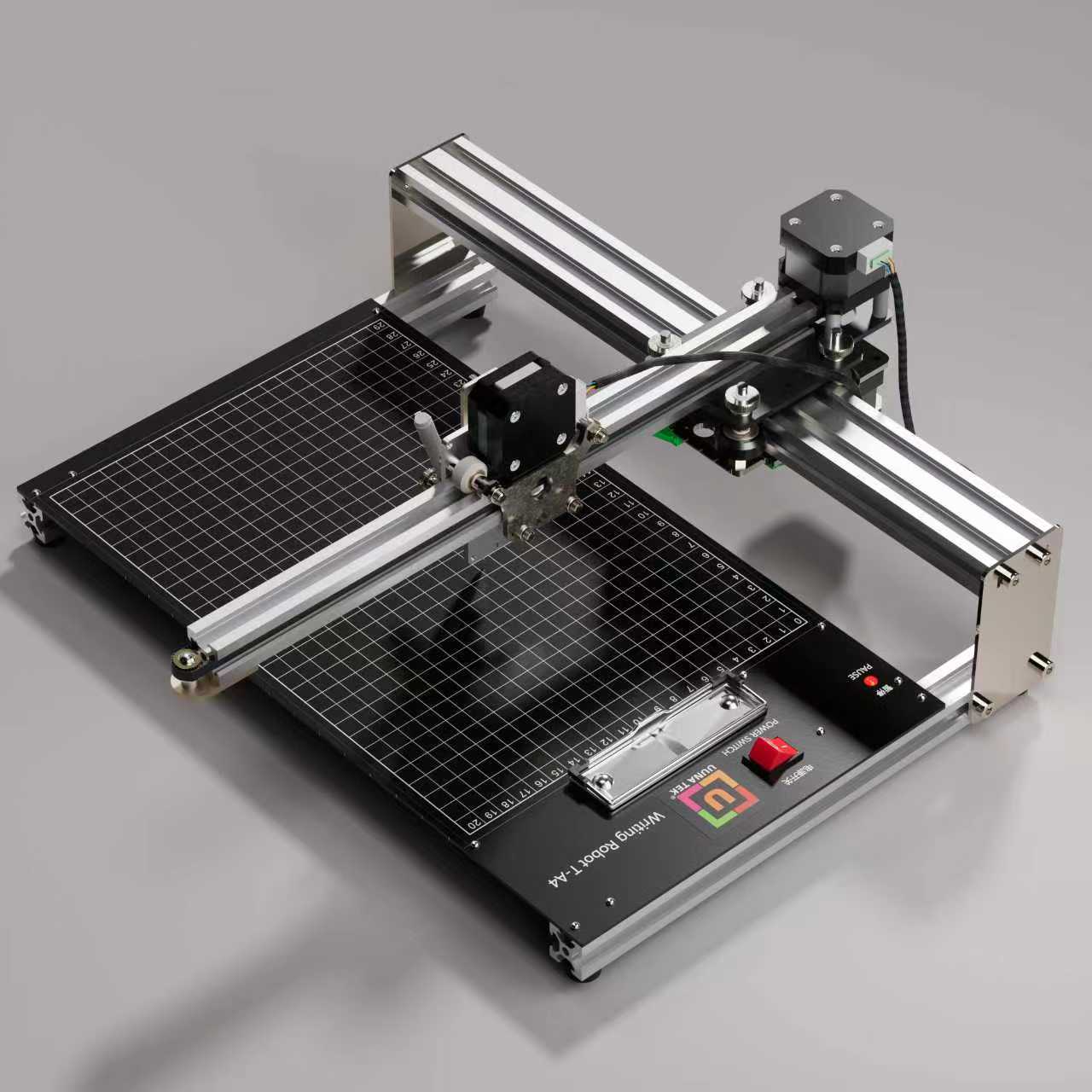

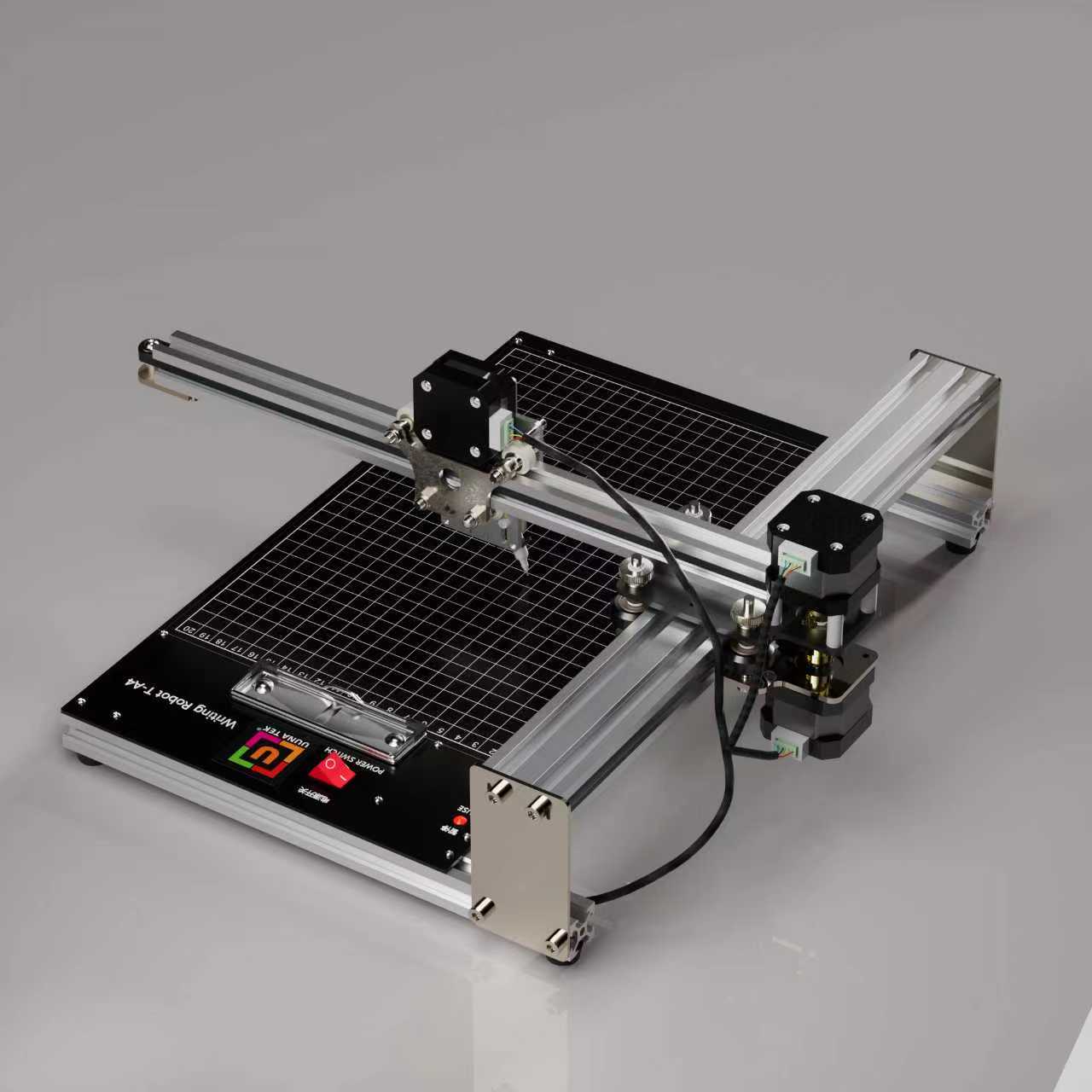

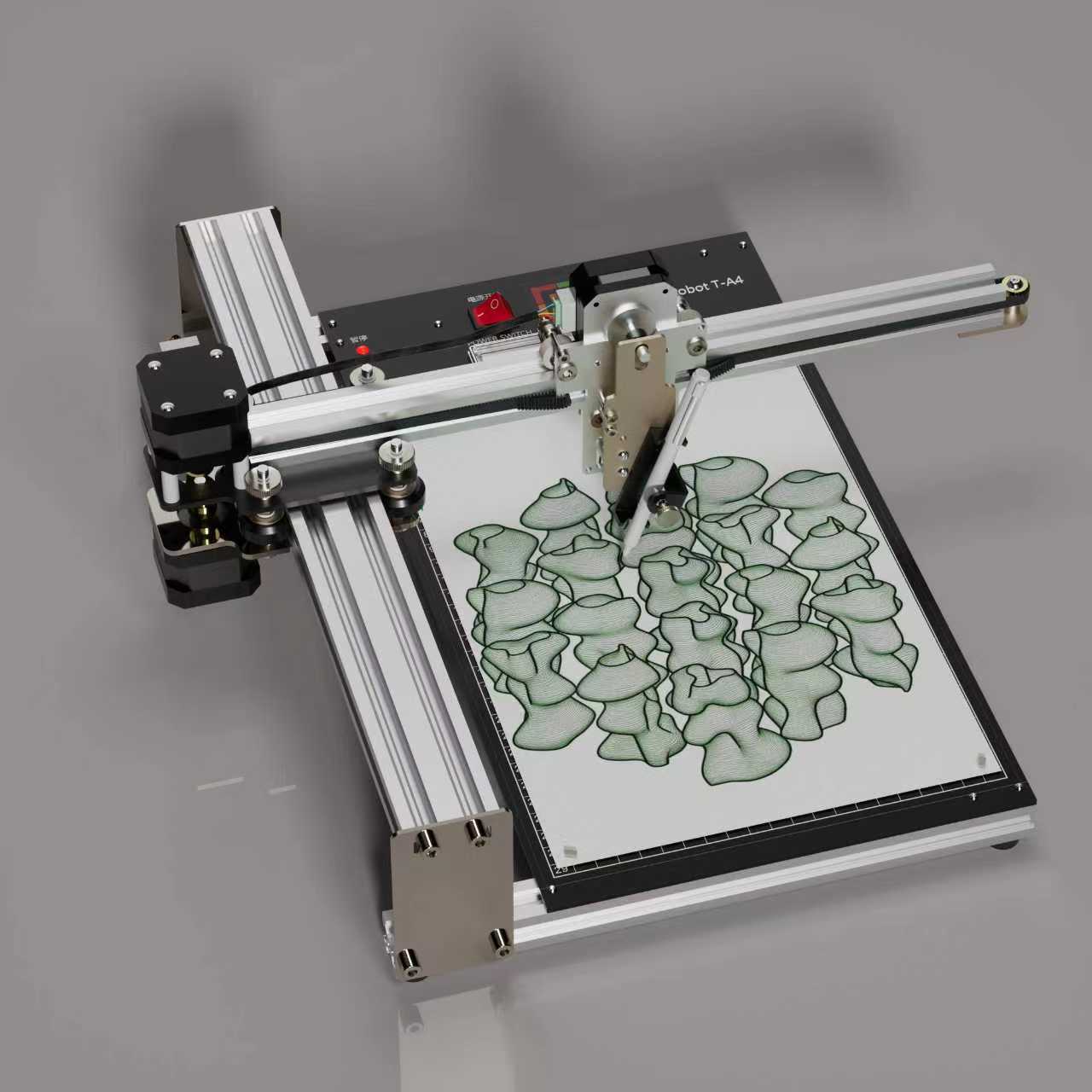

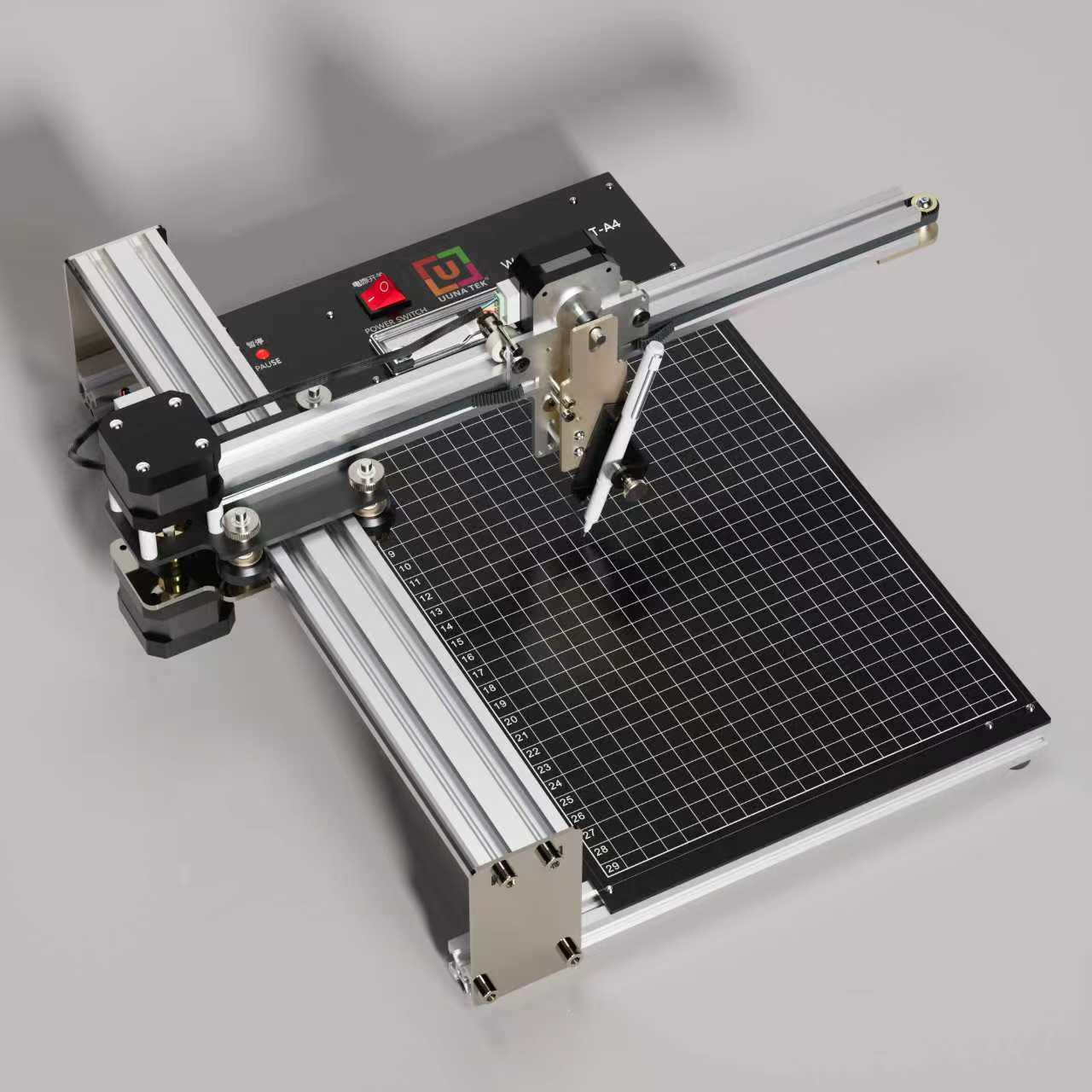

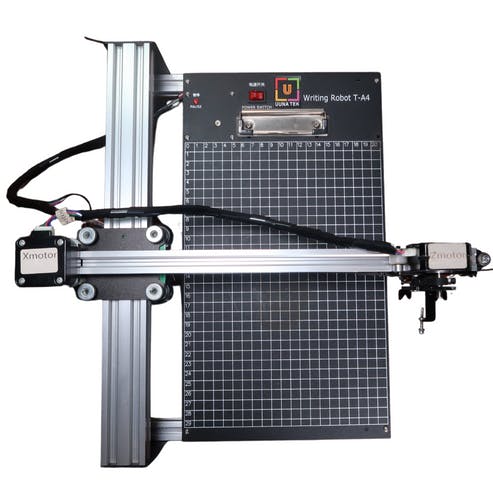

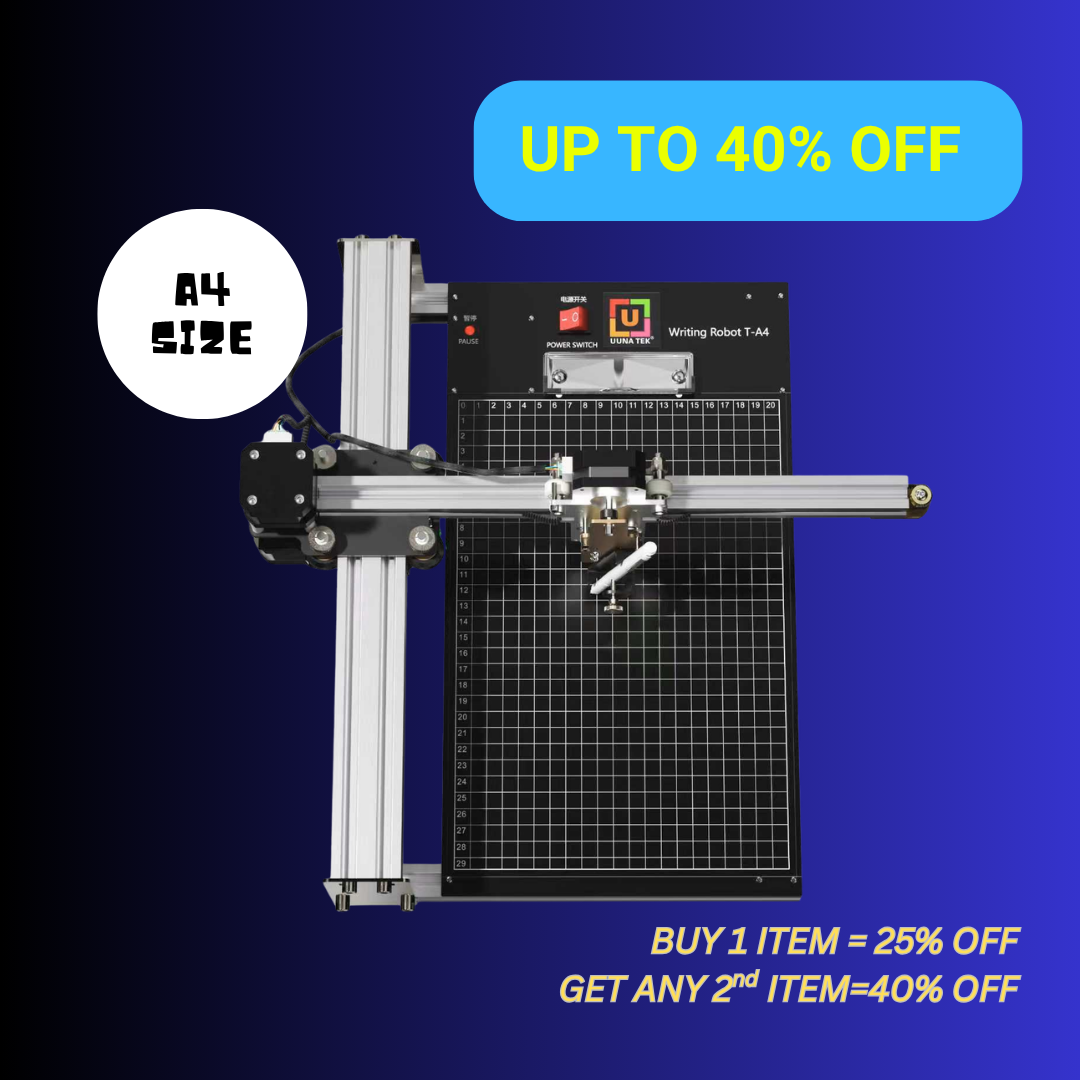

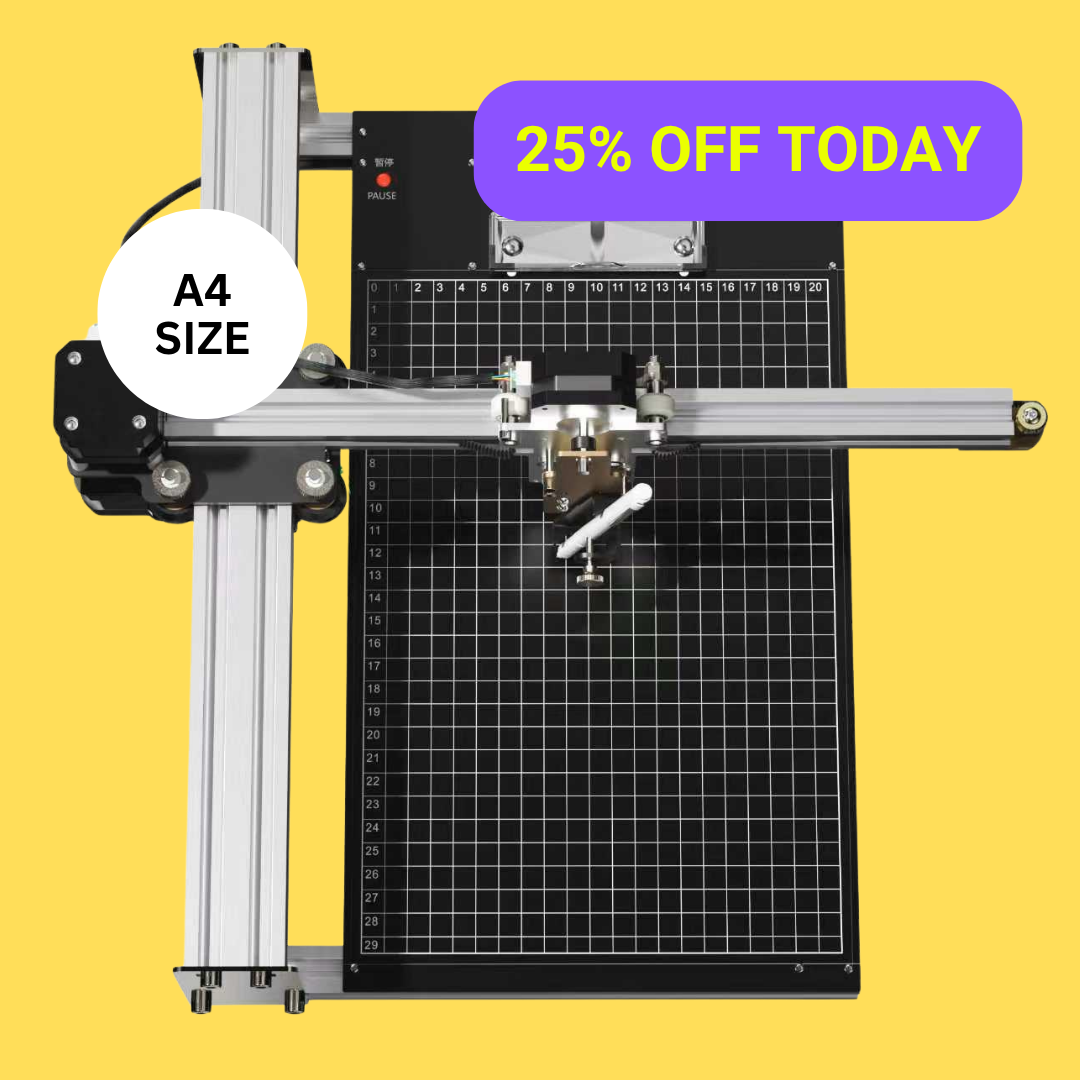

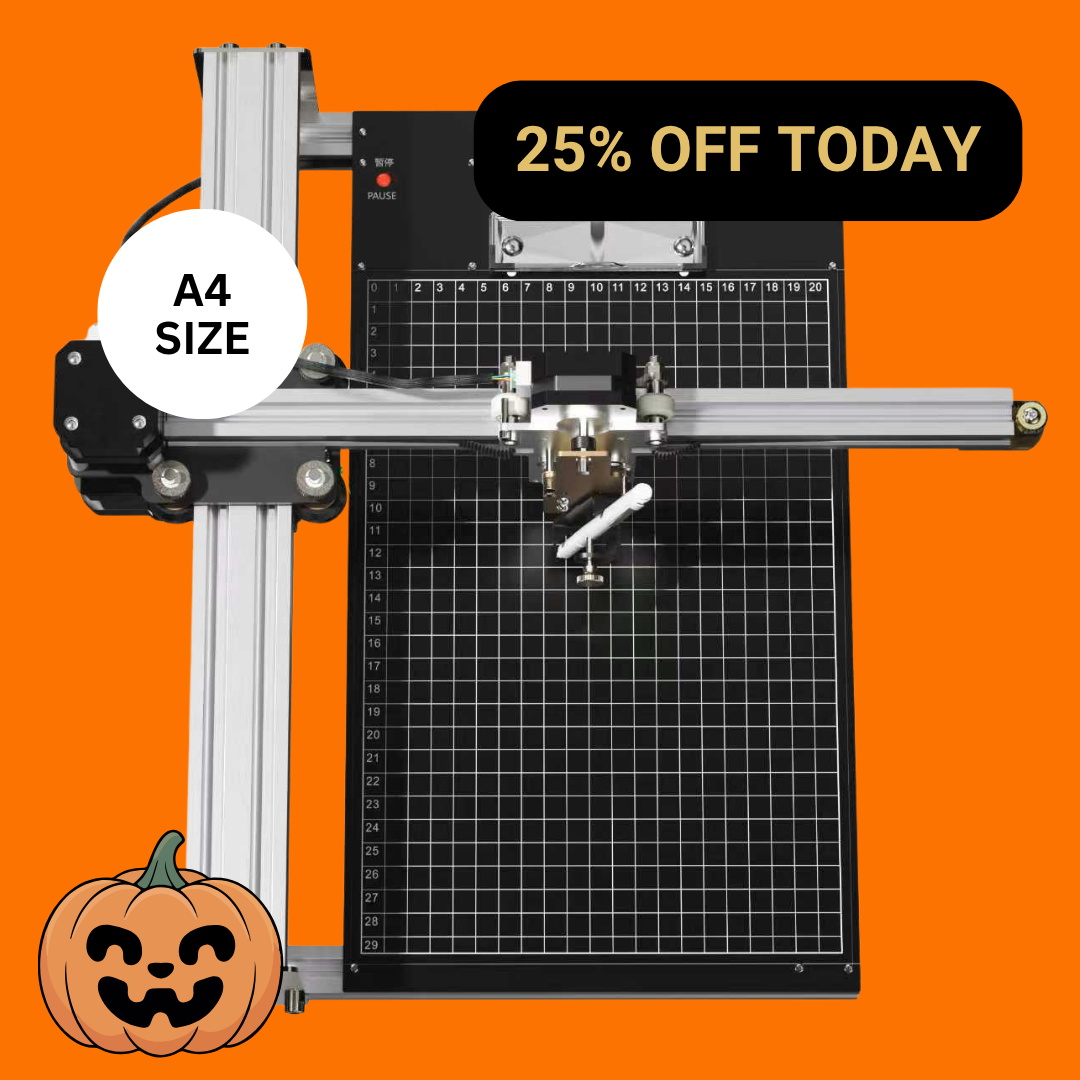

UUNA TEK® Pen Plotter 2.0 - A4 Size Handwriting Machine/XY Plotter/Laser Engraver

UUNA TEK® Pen Plotter 2.0 - A4 Size Handwriting Machine/XY Plotter/Laser Engraver

$599.00 USD
$599.00 USD
Sale Sold out
Shipping calculated at checkout.
Plug

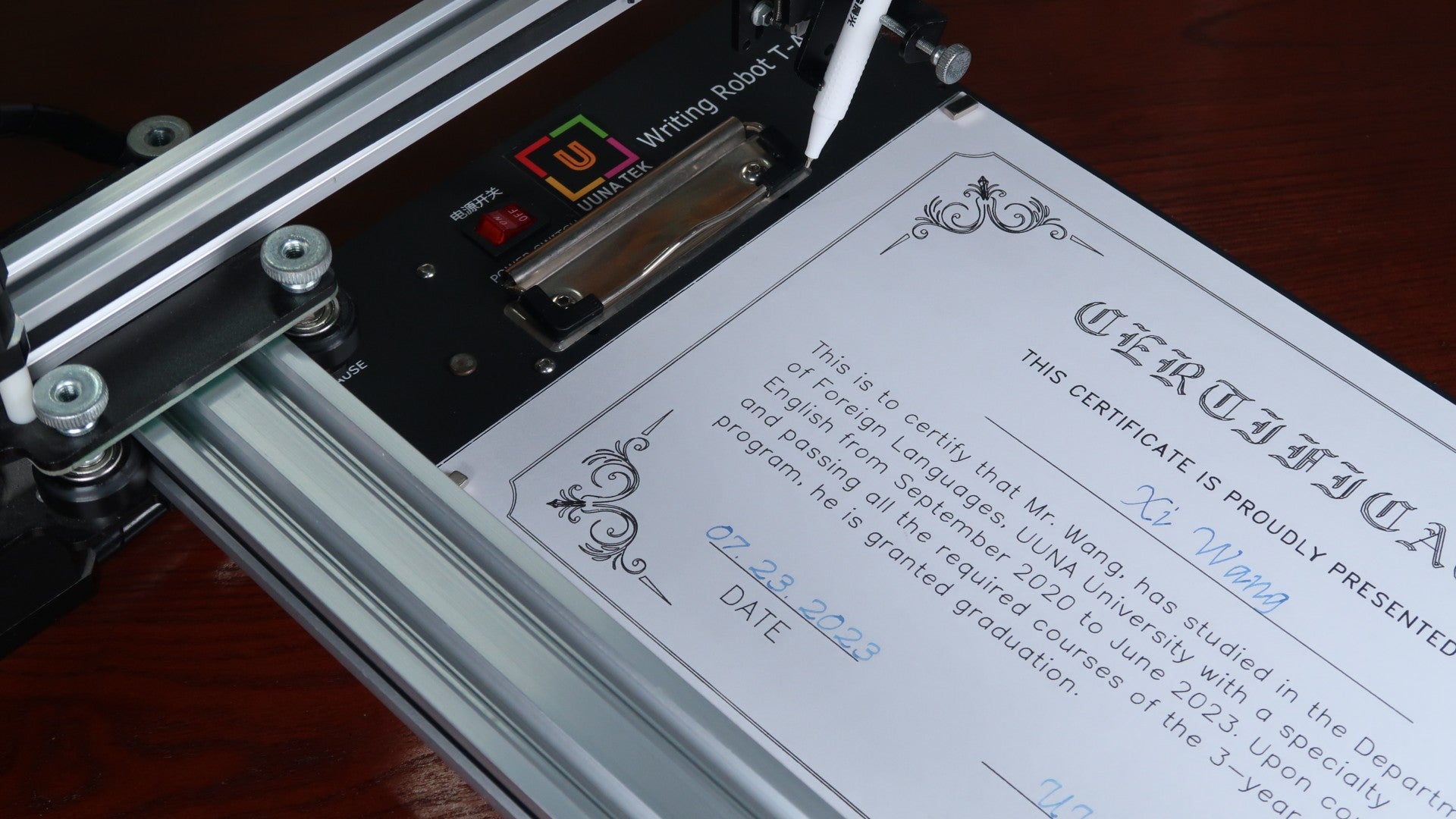

Are you ready to take your creative projects to the next level? Look no further than the UUNA TEK® Pen Plotter 2.0, an innovative A4-sized Handwriting Machine, XY Plotter, and Laser Engraver, designed to bring your ideas to life with precision and versatility. Whether you're an artist, DIY enthusiast, or a professional seeking a reliable tool, this cutting-edge device is your gateway to limitless possibilities.

View full details

Main Features

  • Speed Redefined

    Our latest version stands as the fastest handwriting machine, boasting an incredible 200% increase in speed compared to the AxUUNA TEK, making it the ultimate choice for those who demand results in recor

  • Cutting-Edge Technology

    Powered by the Drawcore V2.0 motherboard and equipped with GRBL Compatibility firmware, it represents the pinnacle of innovation.

  • Precision Beyond Measure

    Achieve impeccable mechanical precision with a minimum resolution of 0.01mm on both the Y and X axes, ensuring every stroke is nothing short of perfection.

  • Versatile Laser Engraving

    With laser heads ranging from 500mW to 2.5W, you can engrave a variety of materials, from wood and plastics to leather and paper.

  • User-Friendly Control

    Seamlessly manage power rate, engraving speed, and input formats with the UUNA TEK 2.0 Control add-ons.

  • Connect with Ease

    Connect via USB or Bluetooth, offering compatibility with a range of operating systems, including Windows 7/8/10, Mac OS, and Linux.

Specification

  1. Motherboard: Drawcore V2.0
  2. Firmware: GRBL Compatibility
  3. Add-ons: UUNA TEK 2.0 Control
  4. Frame Materials: Aluminum Profile + Steel Plate
  5. Working Area: 210*297mm
  6. Motors: 3* 42 Stepper Motors
  7. Mechanical Precision: Y:0.01 mm，X:0.01mm
  8. Laser Power: 500mW/1500mW/2500mW
  9. Engraving Area: 210MM×250MM
  10. Wave Length: 445±5nm
  11. Focus: Fixed Focus
  12. Control Mode: PWM
  13. Power Rate: S0-S1,000
  14. Engraving Speed: 0-5,000MM/Min
  15. Baud Rate: 115200 - 921600 (Default: 115200)
  16. Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
  17. Input Voltage: 110V-220V (Compatible)
  18. Power Adapter Output: 12V / 1A
  19. Operating Temp.: -20℃-50℃

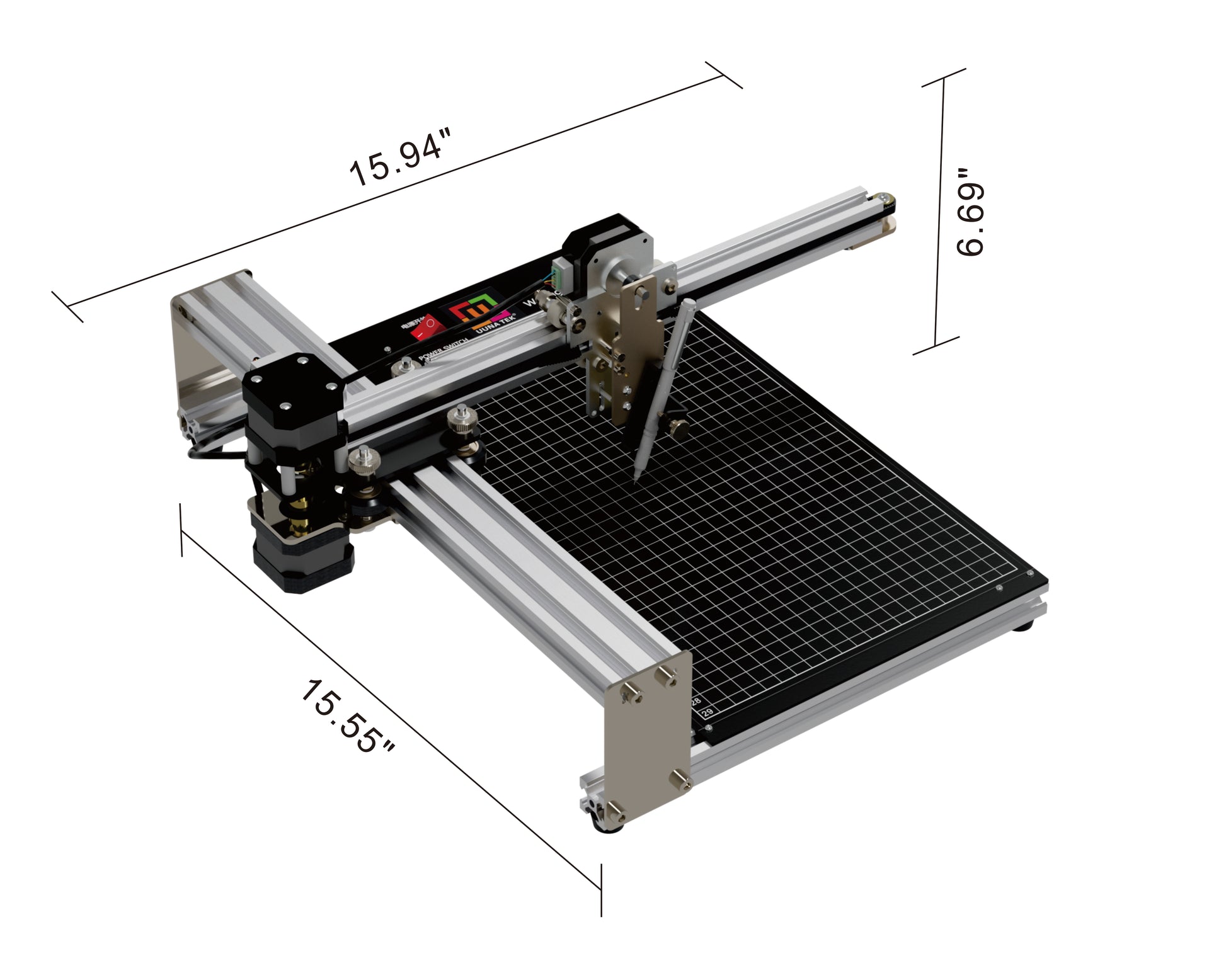

  20. Product Size: 400*400*160MM
  21. Net Weight: 4KG
  22. Limited Switch: Y
  23. Adjustable Angle for Pen: 70-90 Degree
  24. Connectivity: USB, Bluetooth
  25. Support OS and Software: Windows 7/8/10(Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux

Software

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>

Tutorials

For UUNA TEK 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK H Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>
