iDraw H A0 Large Format Plotter Drawing Robot Pen Plotter Drawing Machine Writing Machine Signature Machine| UUNA TEK
iDraw H A0 Large Format Plotter Drawing Robot Pen Plotter Drawing Machine Writing Machine Signature Machine| UUNA TEK
Share

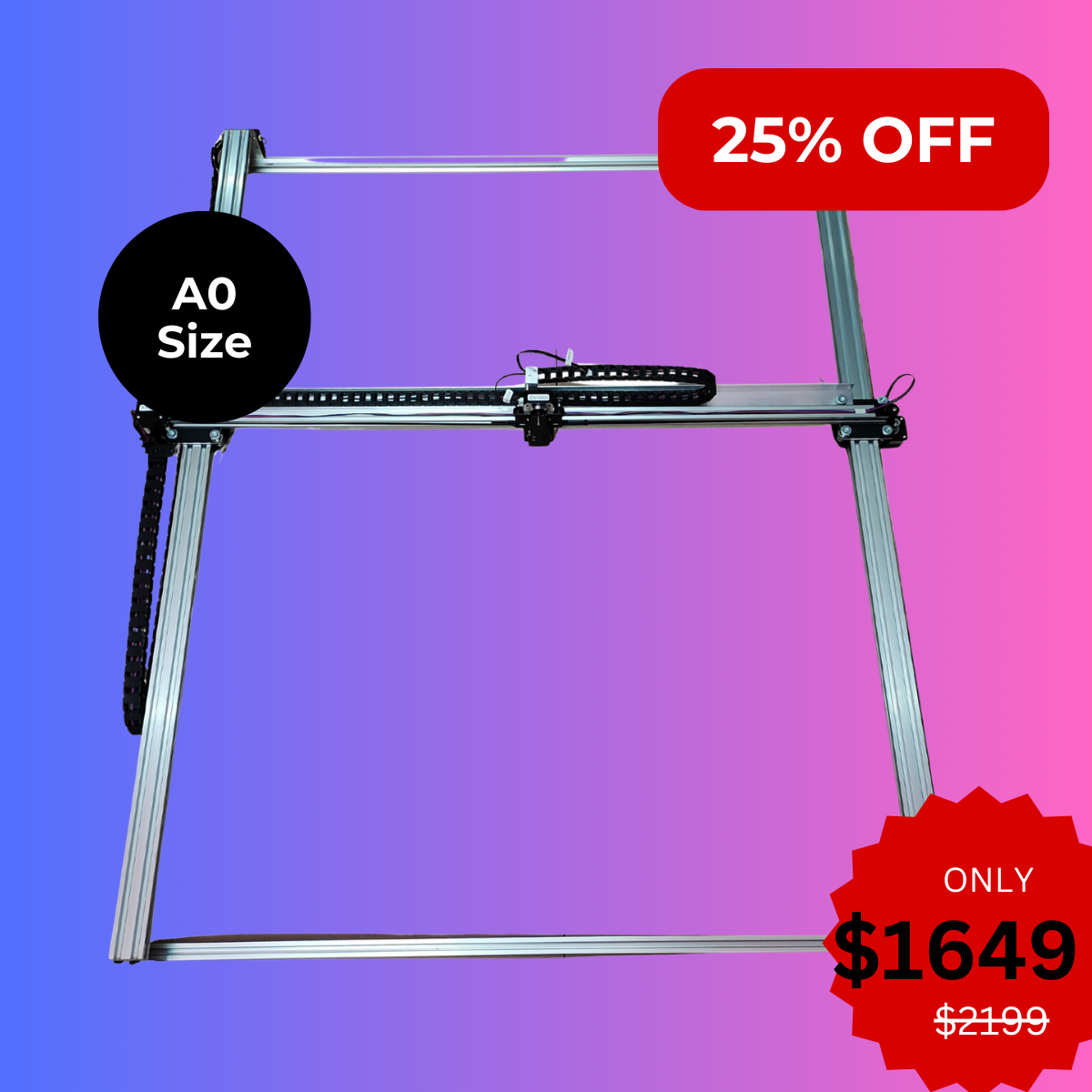

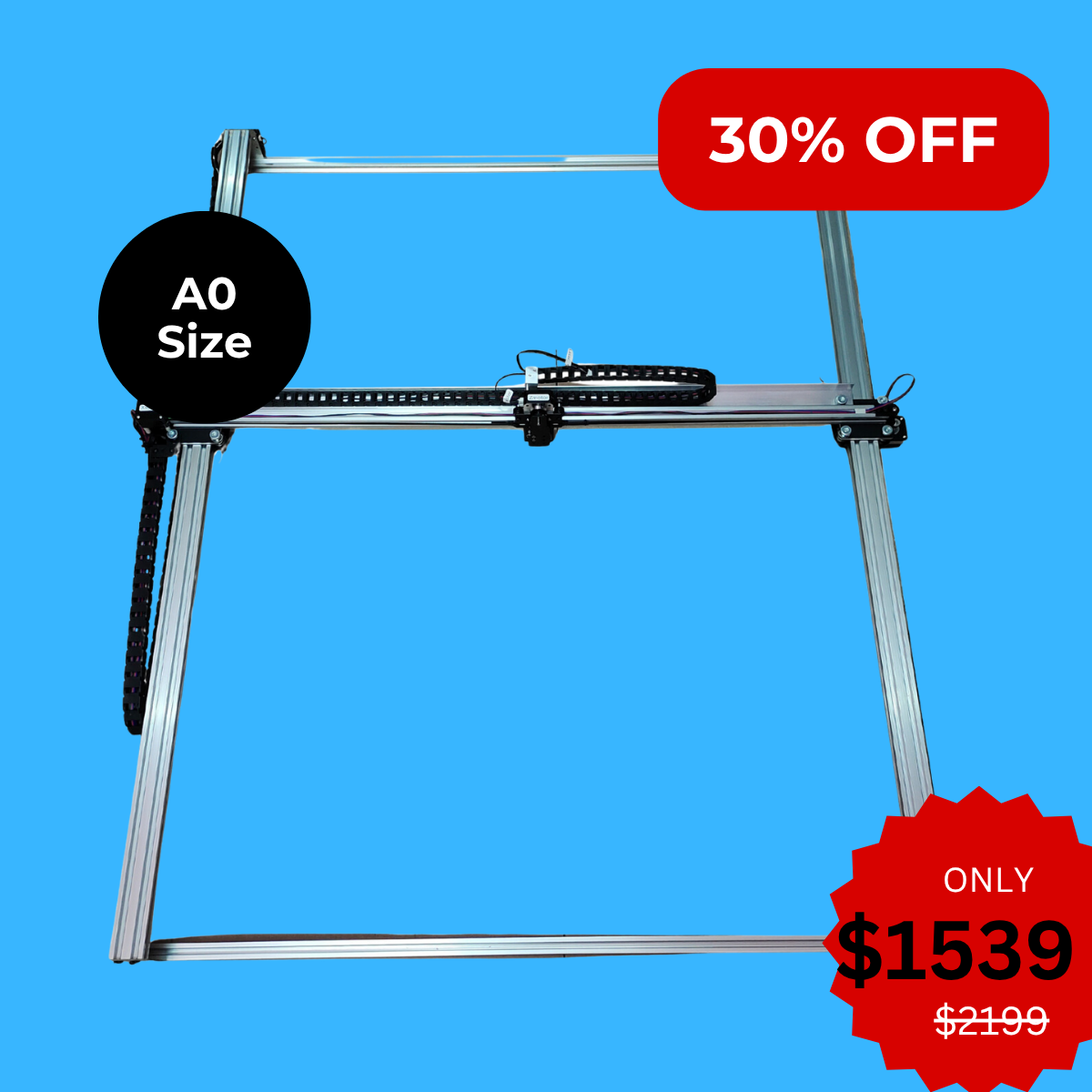

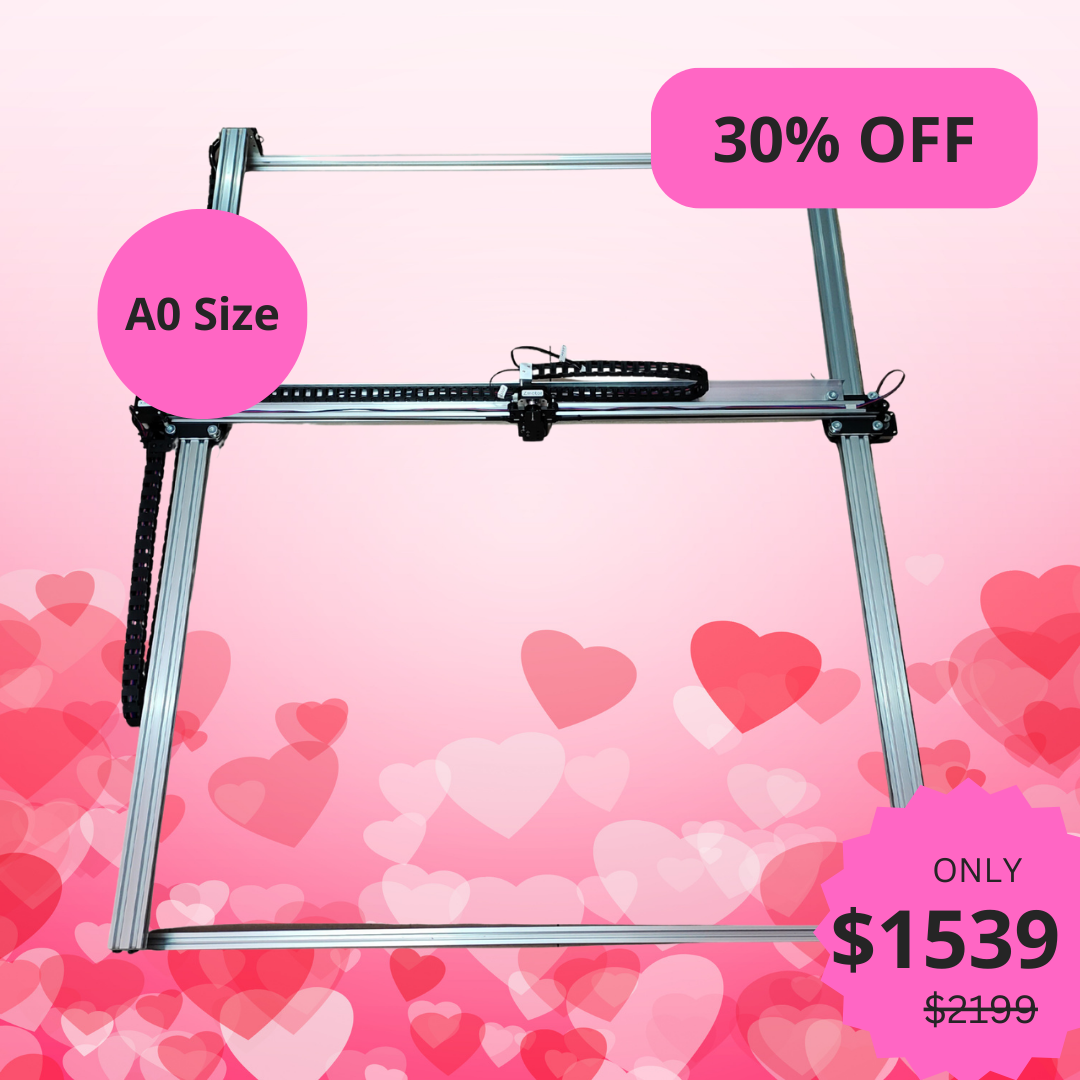

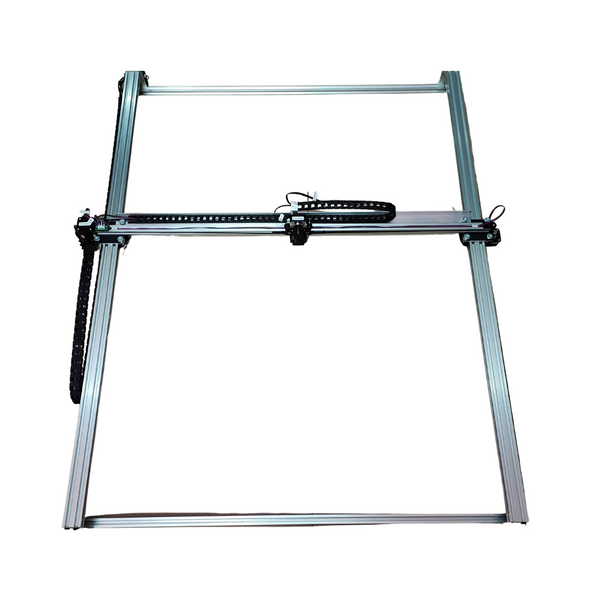

Introducing the iDraw H A0 Large Format Plotter Drawing Robot Pen Plotter Drawing Machine Writing Machine Signature Machine | UUNA TEK, the ultimate solution for larger-scale artwork creation and design projects. This specialized machine is tailored for tasks like generative arts, ethnic costume design, luggage leather marking, mechanical product auxiliary line drafting, and handicraft folding line pressing, among others.
Main Features
-
Drag Chain Technology
Experience seamless drawing even at high speeds, thanks to the innovative drag chain mechanism. This ensures smooth operation and precise output with every stroke.
-
Vertical Mounting Capability
Designed for versatility, the iDraw H can be effortlessly mounted vertically, allowing for the creation of large-scale artworks with ease and precision.
-
Supreme Size Options:
Choose from A2, A1, or A0 sizes, with ample space to bring your grandest ideas to life. The A0 version measures an impressive 33.1 x 46.8 inches, offering boundless creative freedom.
-
Powerful Stepper Motors
Equipped with 4* 42 Stepper Motors (more for A1/A0 sizes), guaranteeing robust performance even with larger plots.
-
Unparalleled Speed
With a writing speed of 0-12,000MM/MIN, the UUNA TEK H Version makes short work of your creative projects while maintaining the same precision that defines our brand.
-
Comprehensive Software Support
Compatible with Windows 7/8/10 (Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), and Linux, ensuring you have the right tools at your disposal.
-
Built for Precision
With a mechanical precision of Y:0.01 mm and X:0.01 mm, the UUNA TEK H Version is the embodiment of perfection.
-
User-Friendly Connectivity
Seamlessly connect via USB or Bluetooth, making it versatile and accessible for all.
-
World-Class Frame Materials
Built with a blend of Aluminum Profile and Steel Plate, ensuring durability and longevity.
-
Adaptable Power
Operating within a wide voltage range (110V-220V), it's ready for action no matter where you are.
-
Versatile Laser Options
Select from 500mW to 15W laser heads for engraving wood, plastics, leather, and paper.
Collapsible content
Notification
UUNA TEK® H A0/A1/A2 is derivatives of the UUNA TEK® H A3 pen plotter without basement, specially redesigned for a larger plot area.
Even with the improved carriage, these larger models generally need to be operated at slower speeds than a regular UUNA TEK® H A3 in order to achieve the same quality.
To reduce shipping cost and the risk of damage, these models ship partially disassembled, and we will ship from our Chinese manufacturer directly. Because of this high shipping cost, we don't accept return or refund, but we can provide free replacements for any faulty parts and make sure it's working. We can only provide full refund because of quality issue and fail to provide solution.
Import tax should be charged by your customs
They're really big.
These units are made to order, in limited production, which will take at least one month to produce and at least 5-10 business days for shipment. Email us via uunatek@gmail.com to confirm everything after placed the order.
Please note that the larger the machine, the greater the deviation. The A2-A0 machine has a deviation of up to 0.5mm on the X-axis and up to 0.6mm on the Y-axis. It is possible that the belt conveyor or other parts may become loose during transportation due to long-distance cross-border transportation. If this is unacceptable, it is recommended to choose a smaller machine like the A3 size, or a larger machine of the UUNA TEK 3.0.
In this case, you may need to adjust the machine remotely after receiving it with our online meeting here: https://calendly.com/uunatek/idraw-support, or watch our YouTube video instructions here: https://www.youtube.com/watch?v=QlrD2w3Zo2M&t=1403s. At the same time, if the software settings allow back and forth movement, the deviation will increase.
In this case, we recommend:
1. Try to write at a lower speed and use the default recommended drawing speed of 2000mm/min
2. Do not turn on the automatic optimization function, allowing move back and forth, to reduce the deviation
3. Try to use the X-axis as the center axis of the picture
4. Use a quick-drying pen
5. Try to use drawing paper and fix the paper
6. The artwork should not be too complicated. If it is really complicated, it is recommended to draw it in several parts
Specification
Motherboard: Drawcore V2.0
Firmware: GRBL Compatibility
Add-ons: UUNA TEK® 2.0 Control
Frame Materials: Aluminum Profile + Steel Plate
Working Area: A2:(16.5 x 23.4 inches )A1:( 23.4 x 33.1 inches), A0:(33.1 x 46.8 inches)
Motors: 4* 42 Stepper Motors (more steppers might be used for A1/A0 Size)
Mechanical Precision: Y:0.01 mm,X:0.01mm
Writing Speed: 0-12,000MM/MIN (slower than A3 size)
Baud Rate: 115200 - 921600 (Default: 115200)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Input Voltage: 110V-220V (Compatible)
Power Adapter Output: 12V / 1A
Operating Temp.: -20℃-50℃
Product Size: A2:(17 x 27x6.7inches )A1:( 24 x 35x6.7 inches), A0:(34 x 48x6.7inches)
Net Weight: 5 kg-10kg
Limited Switch: Y
Adjustable Angle for Pen: 70-90 Degree
Connectivity: USB, Bluetooth
Support OS and Software: Windows 7/8/10(Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux
Packing List
1 X UUNA TEK iDraw H A2/A1/A0 Pen Plotter
1 X Tool Kits
1 X Quick Start Guide
1 X Thank You Card
Software
Download the inkscape software and extensive files here>>>.
You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.
For those who need advanced functions:
1. For those who need the function to save the plot file, please download this version>>>
2. For those who need email merge function,
Windows: please download this version>>>
Mac or Linux, please download this version>>>
3. For those who need laser function, please download this version>>>
4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>
Tutorials
For UUNA TEK® 1.0 Pen Plotter, please check the video tutorials here>>>
For UUNA TEK® 2.0 Pen Plotter, please check the video tutorials here>>>
For UUNA TEK® H Pen Plotter, please check the video tutorials here>>>
For Software, please check the video here>>>
For Laser Function, please check the video tutorials here>>>
Policies
Shipping Policy: All orders will be fulfilled within 48 business hours. All packages will be shipped with DHL/UPS/USPS from our Chinese warehouses or Amazon warehouse, it will take 5-7 business days to your destination. Delay alert during sales seasons. Check the full policy here>>>
Return Policy: We will provide 1-year warranty for all products. Free return and refund will be only provided for any quality issue or damage during delivery. Contact us via support@uunatek.com before return it back. Check the full policy here>>>
An extraordinary machine. Was just surprised by the low price, in particular for the A0 version.

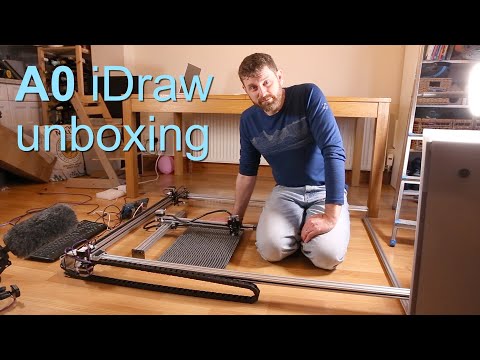

I ordered my machine at the very end of August and expected it to arrive early October. It arrived nearly 2 weeks early. It was much bigger than I expected (in a good way). Once set up it measures 130cm X 108cm with the X axis motors overhanging that by another 4,5 cm. The construction was simple, there was barely a need to reference any guides as it is quite intuitive, but I did just to double check. Inkscape and the updates installed easily enough on my Mac and with in an hour of arrival I was testing it out. I did hit a snag however, and at first the machine was only printing up to an A3 size. It seemed I did not have the most recent update to the software. Customer support was quick to respond. New updates installed however it still wasnt extending to its full reach. I reached back out for support and we set up a call with their technician who trouble shooted with me until we got it figure out. In the end I simply need to delete Inkscape and reinstall the software- since then its been an absolute dream to play with.
Assembly is very well guided by the videos provided. The machine is fast and seems reliable. Inkscape extension works great on first try. Sure it's a bit of a rough/no design approach to a pen plotter, but for this very reason inspires confidence, confidence confirmed by the great support and responsiveness of the team. The delivery was super fast and the product arrived in pristine condition. Suggested an improvement and was very surprised the team was listening and willing to implement on new models. Good job!
