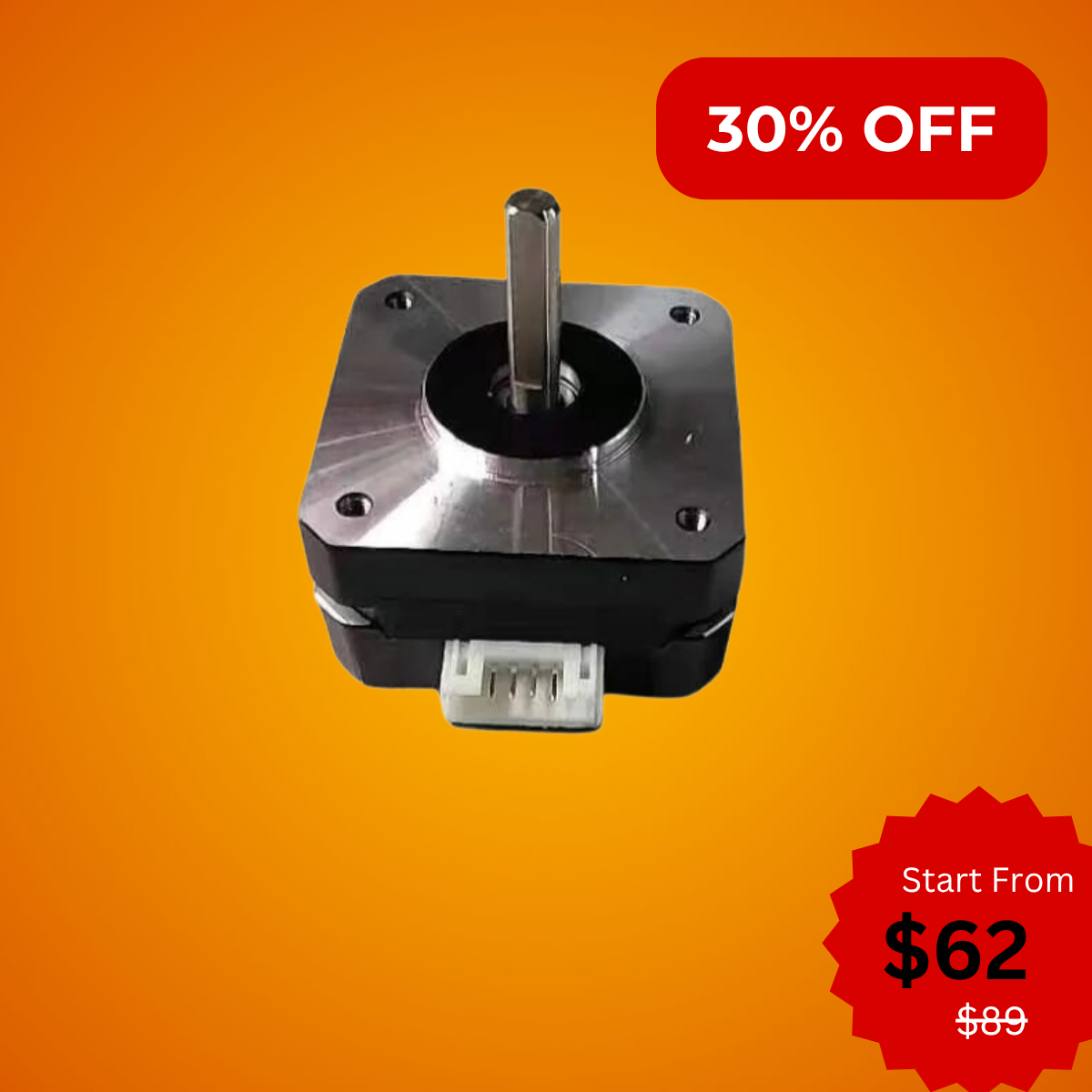

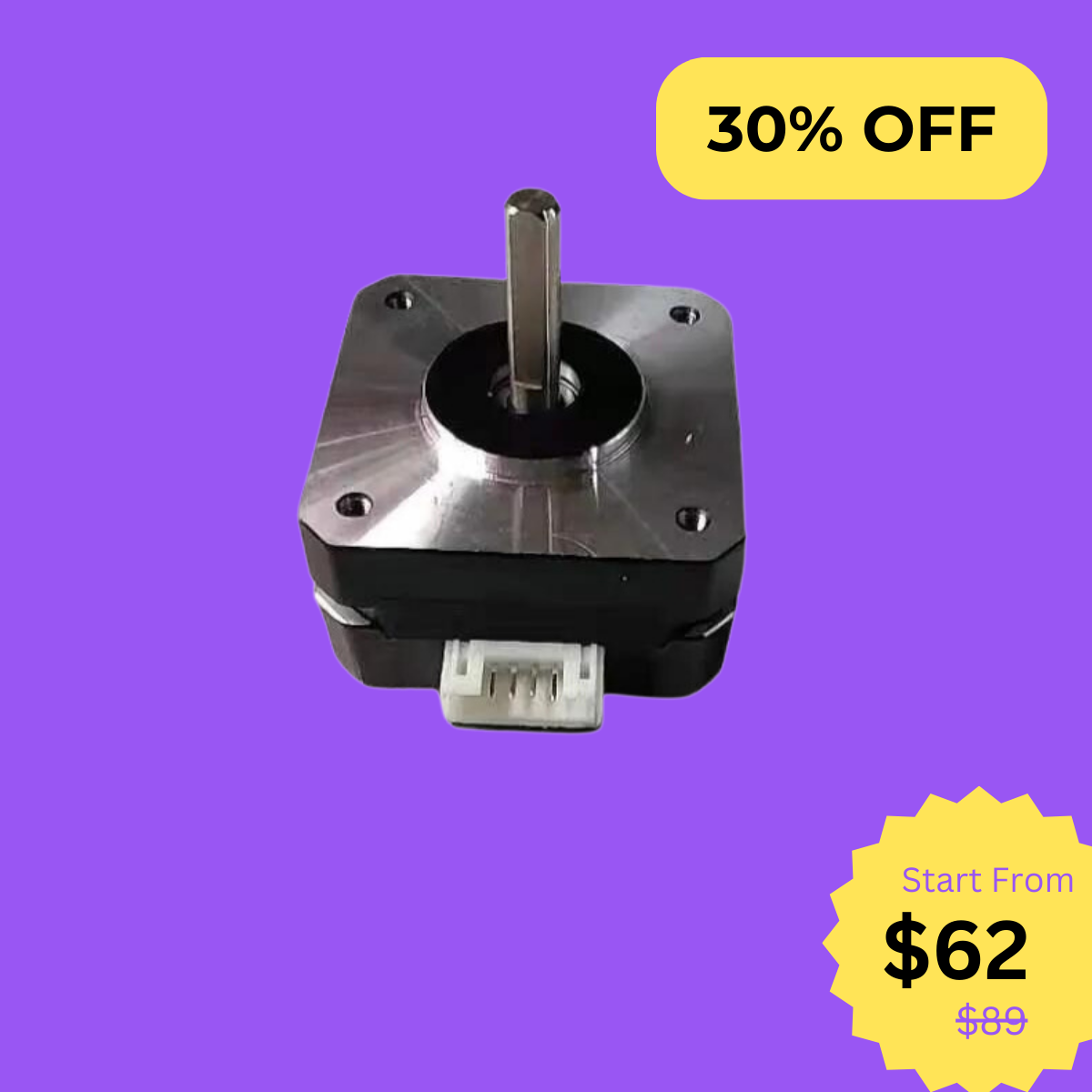

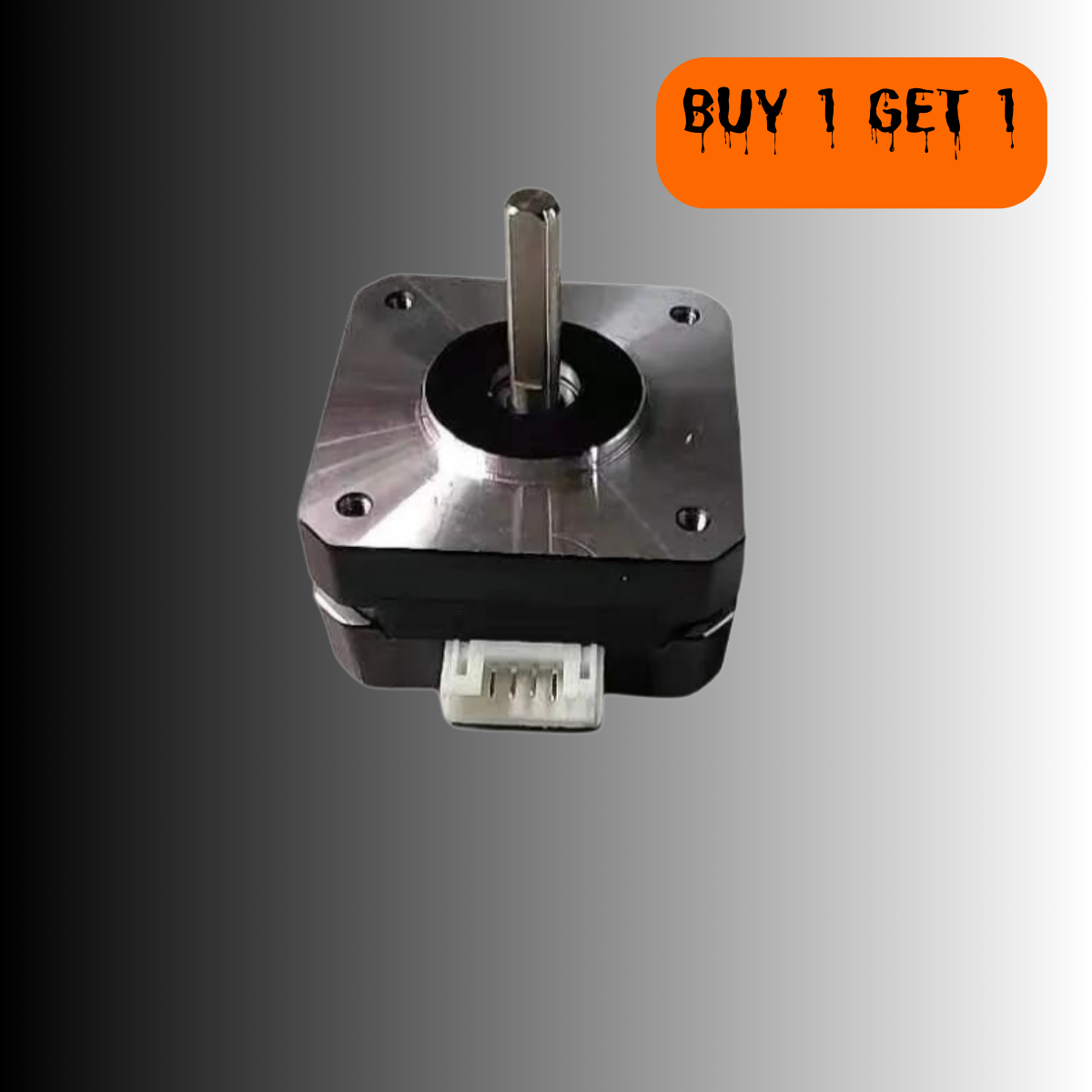

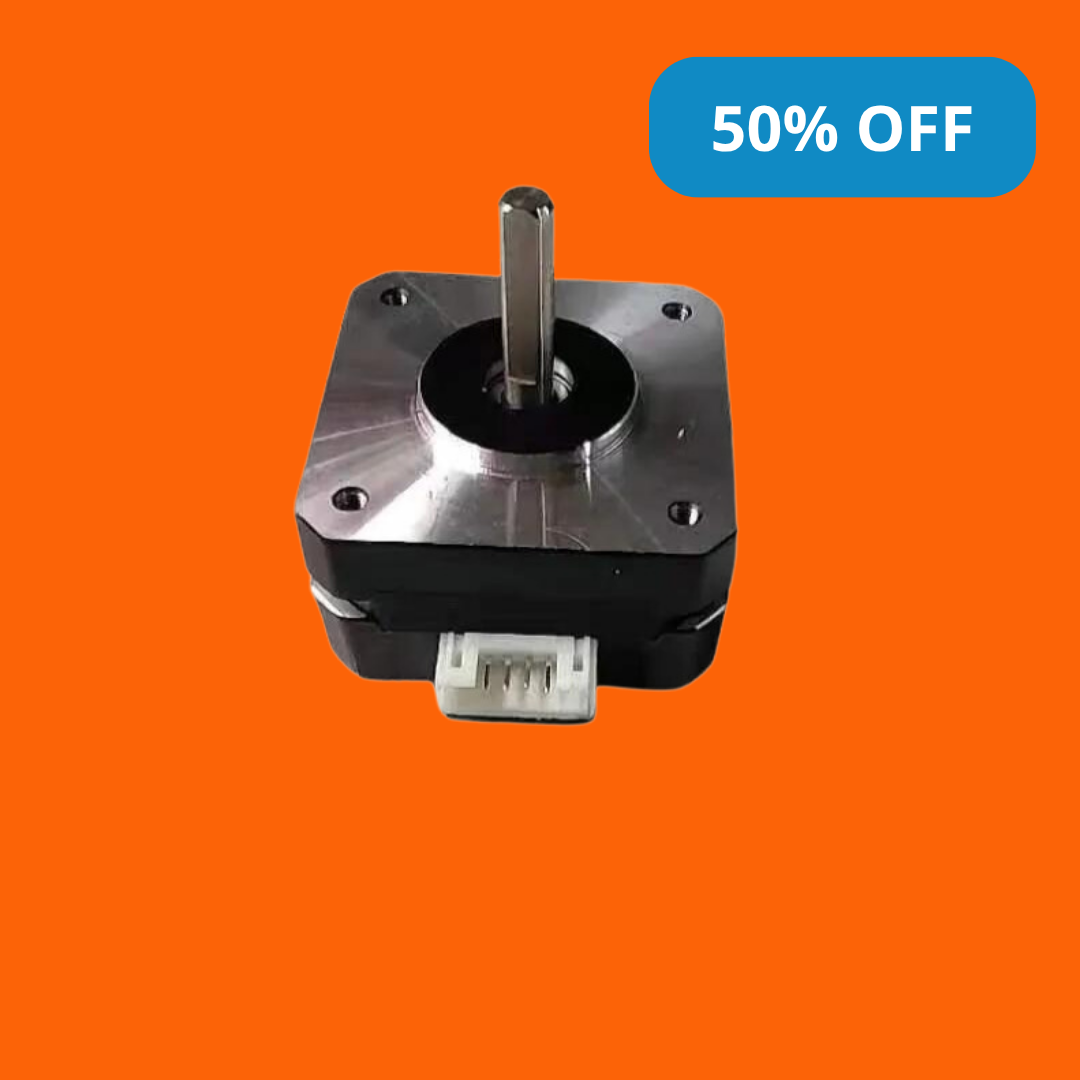

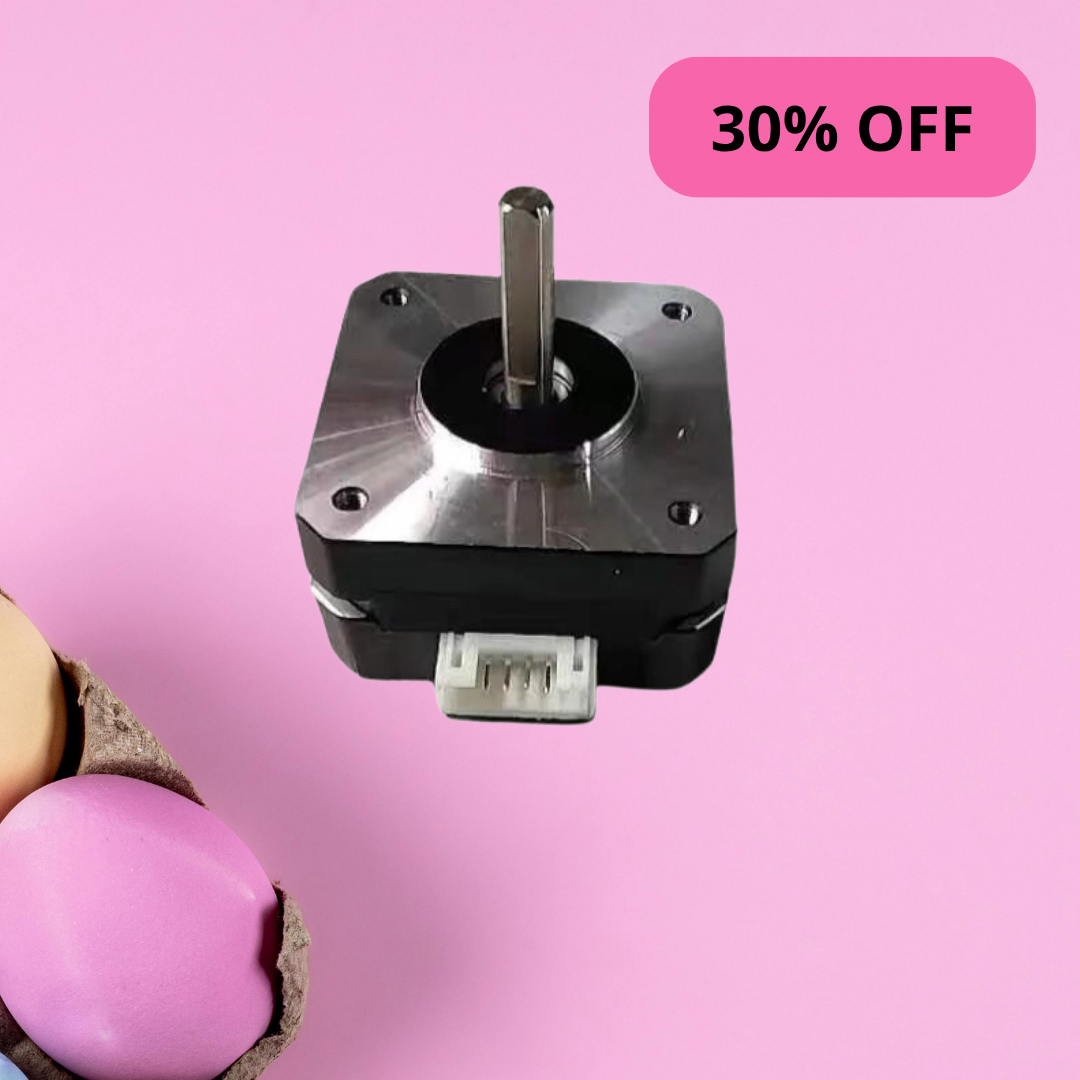

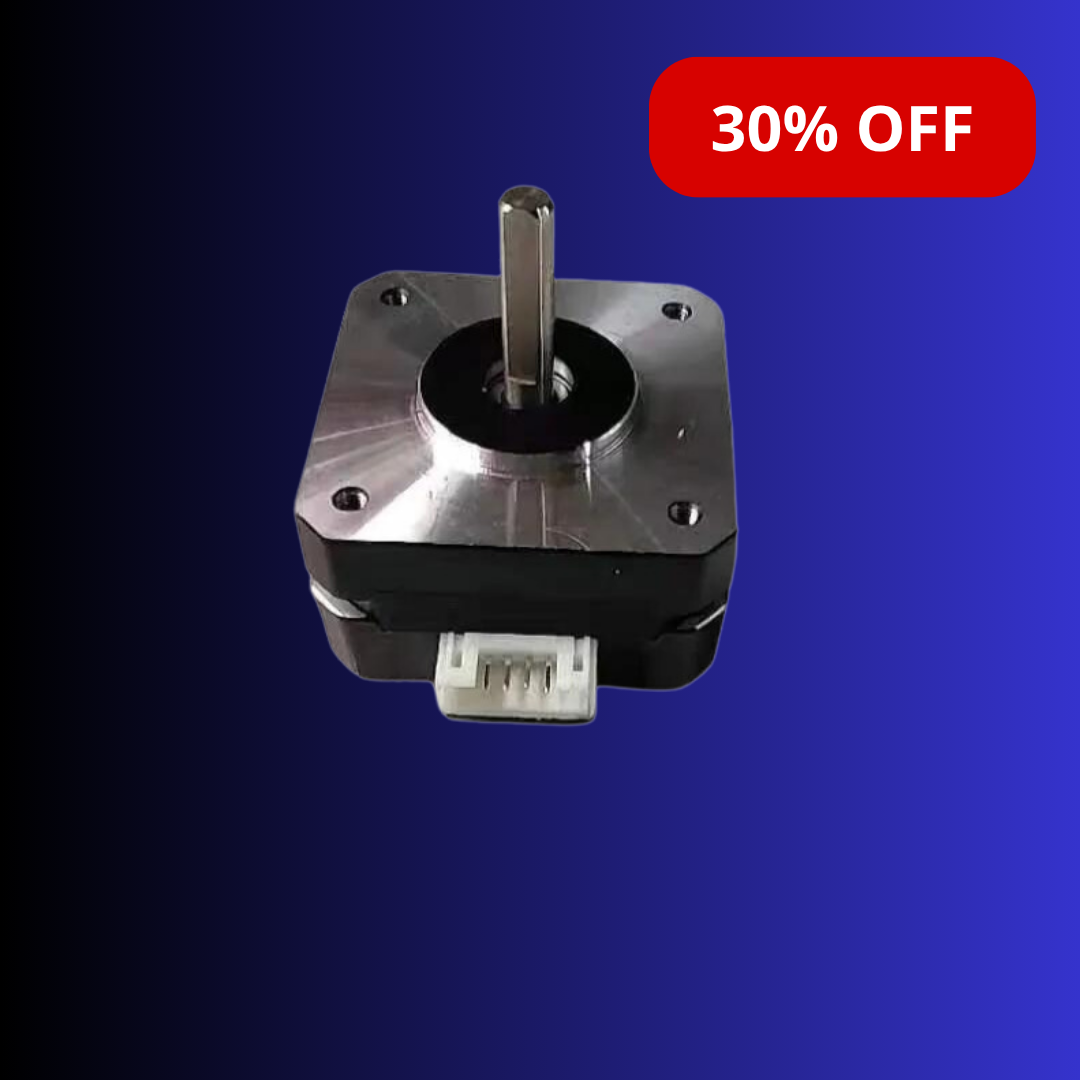

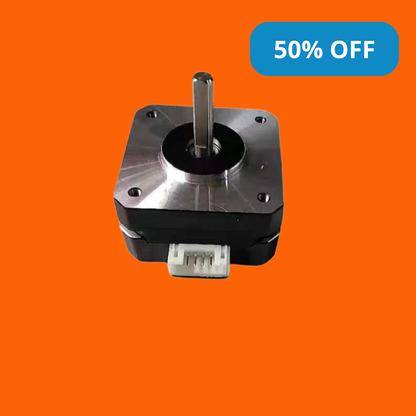

Stepper Motors for UUNA TEK® iDraw 2.0 and H
Stepper Motors for UUNA TEK® iDraw 2.0 and H
Share
Couldn't load pickup availability
In the world of creative expression, precision and durability are paramount. The Stepper Motors for UUNA TEK® iDraw 2.0 and H versions are the epitome of endurance, ready to bring your creations to life, word by word. These customized stepper motors are engineered to withstand the test of time, supporting a minimum of 100,000 words with ease. What sets them apart is not just their robust performance but their longevity, outlasting conventional motors by tenfold.
Note: the Y-axis motor can be also used for iDraw 1.0.
Main Features
-
Precision Meets Endurance
Designed to maintain precision and performance over the long haul, these stepper motors are your reliable partners in the creative process.
-
Customized for UUNA TEK 2.0 and UUNA TEK H
Tailored to seamlessly fit the A4 and A3 versions of UUNA TEK 2.0 and UUNA TEK H, they ensure your projects unfold with accuracy and consistency.
-
Extra Cable for A3 and A4 Versions
For your convenience, the A3 version comes with an additional 100cm cable, and the A4 version with an extra 80cm cable, allowing you greater flexibility in setup and positioning.
-
Size Matters
The X-Axis Stepper Motor measures 42X342X323mm, while the Y-Axis Stepper Motor dimensions are 42X342X333mm, making them ideal for their respective roles.
-
Built to Last
Engineered for longevity, these stepper motors are ten times more durable than their counterparts, ensuring they are a sound investment for your creative endeavors.
Collapsible content
Notification
Not Suitable for UUNA TEK 1.0: Please note that these motors are designed specifically for UUNA TEK 2.0 and UUNA TEK H versions, and are not compatible with the UUNA TEK 1.0. If you require servo motors for UUNA TEK 1.0, they are available separately.

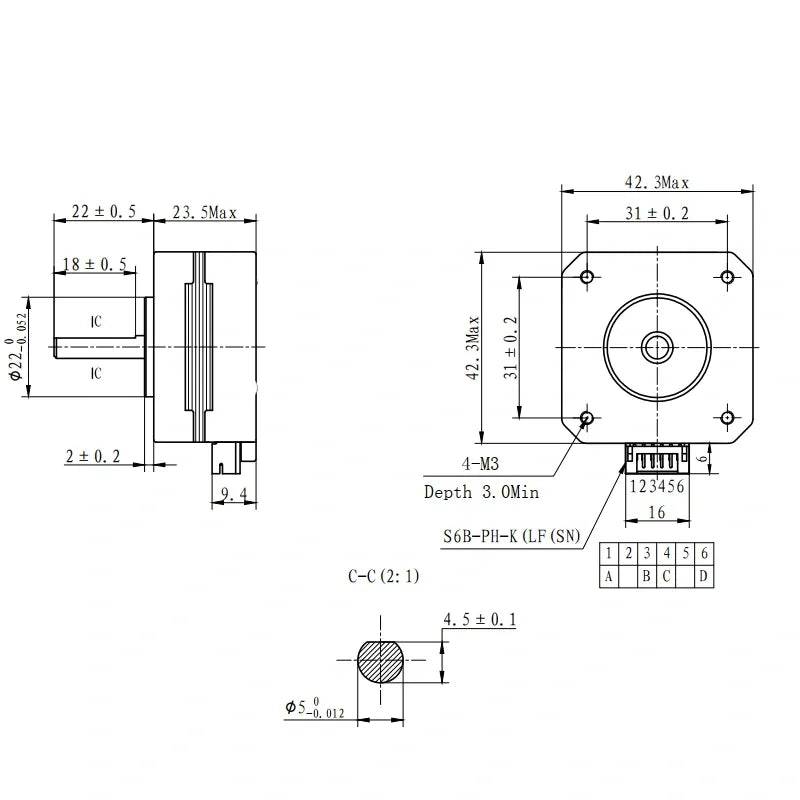

Specification
- 1. Step Angle: 1.8 degree
- 2. Current: 1.2 A/Phase
- 3. Holding Torque: 4.2 kg-cm
- 4. Detent Torque: 2.2N.cm(Maximum)
- 5, Lead Wires: 4
- 6. Shaft diameter: 5mm
X-Axis Stepper Motor: 42.3*42.3*23mm mm
Y-Axis Stepper Motor: 42.3*42.3*33mm mm
Suitable for UUNA TEK 2.0/H A4 and UUNA TEK 2.0/H A3 Versions, not suitable for UUNA TEK 1.0. Want the Servo Motors for UUNA TEK 1.0? Check here.
For A3 version, we will provide an extral cable - 100cm length
For A4 version, we will provide an extra cable - 80cm length
Software
Download the inkscape software and extensive files here>>>.
You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.
For those who need advanced functions:
1. For those who need the function to save the plot file, please download this version>>>
2. For those who need email merge function,
Windows: please download this version>>>
Mac or Linux, please download this version>>>
3. For those who need laser function, please download this version>>>
4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>
Tutorials
For UUNA TEK 1.0 Pen Plotter, please check the video tutorials here>>>
For UUNA TEK 2.0 Pen Plotter, please check the video tutorials here>>>
For UUNA TEK H Pen Plotter, please check the video tutorials here>>>
For Software, please check the video here>>>
For Laser Function, please check the video tutorials here>>>
