UUNA TEK, Co.

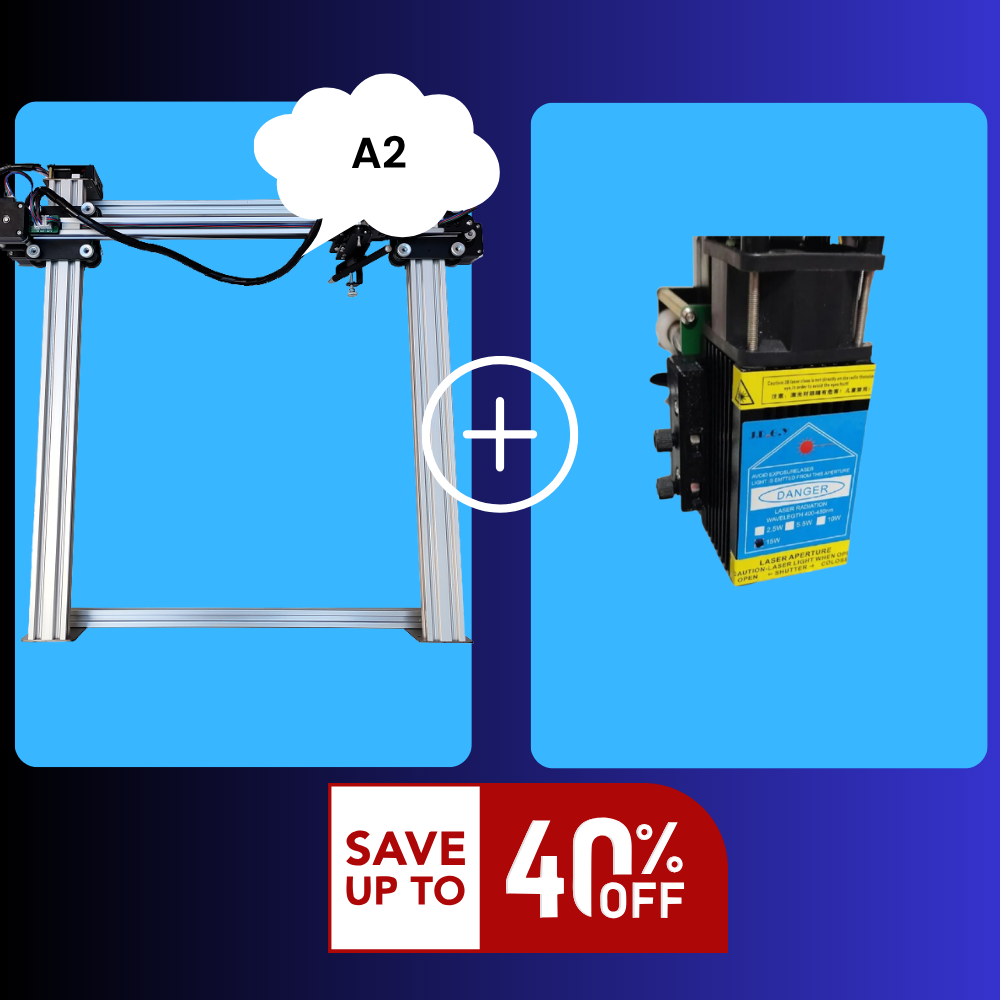

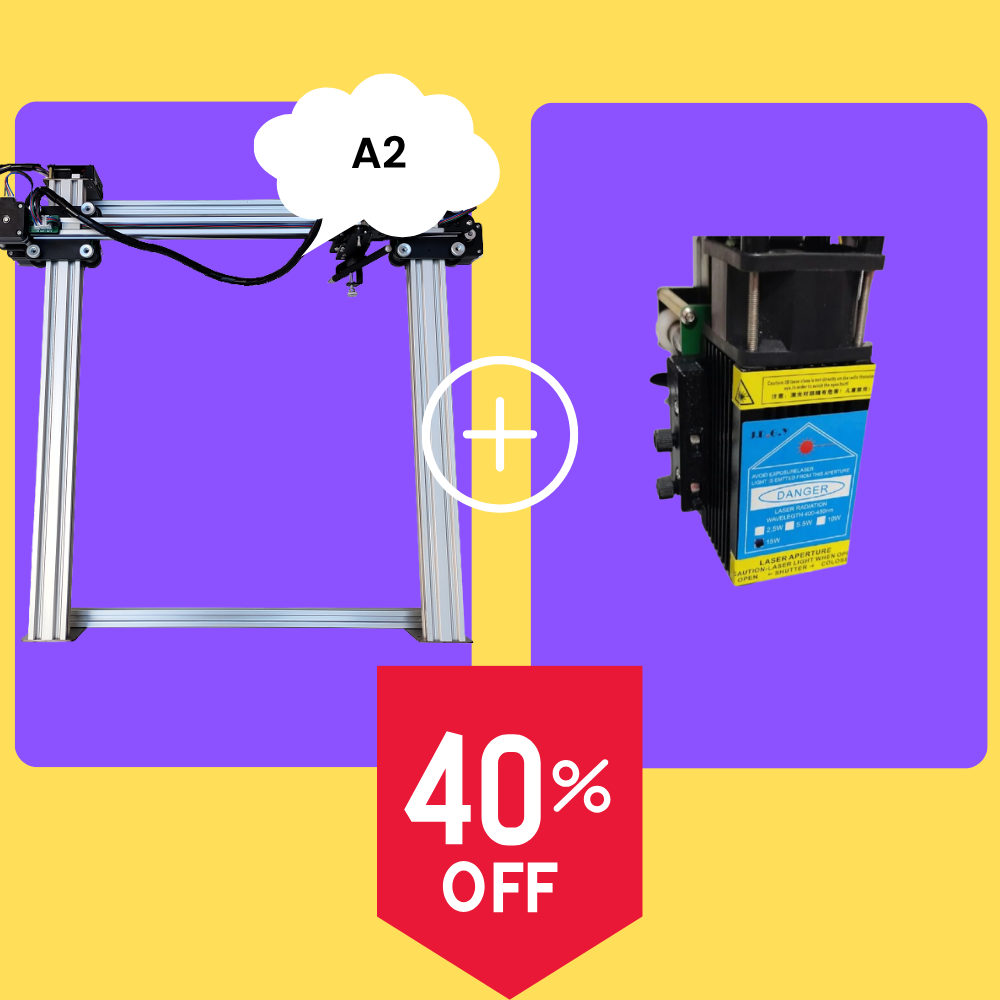

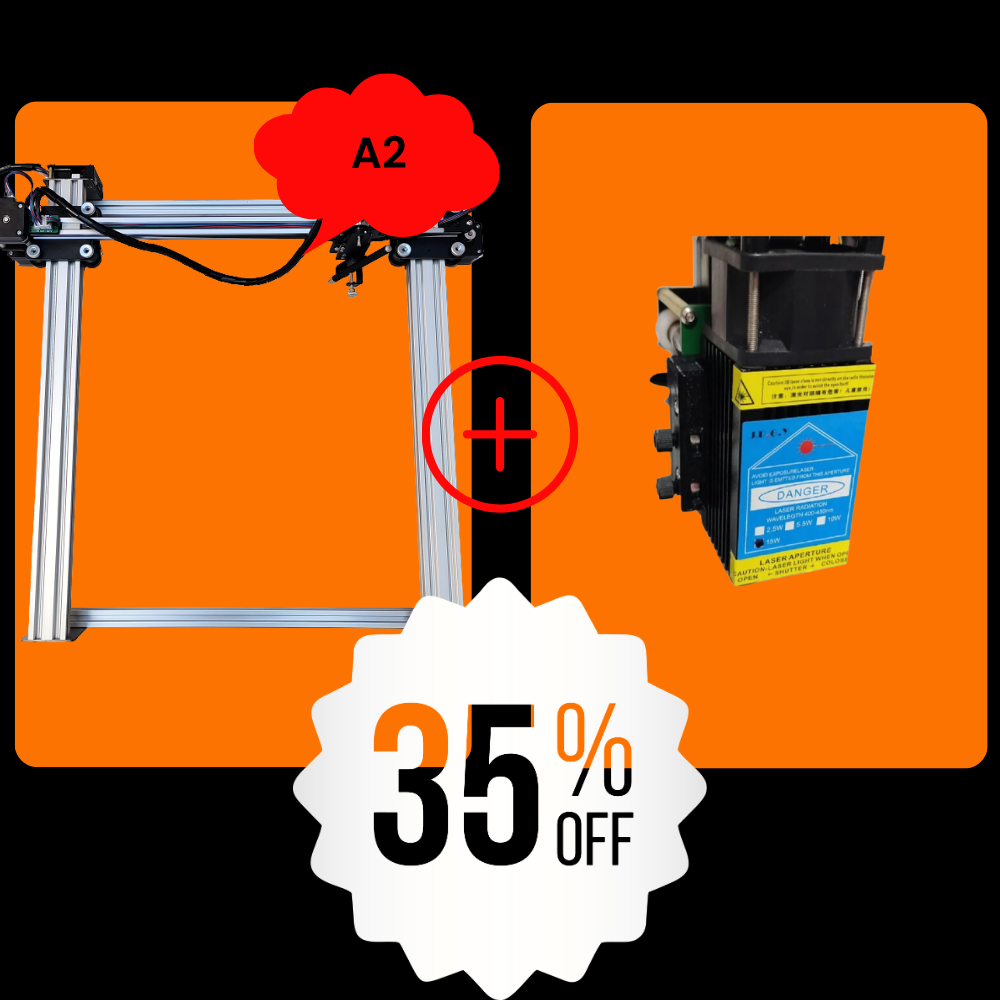

iDraw H A2+10W Laser Head Bundle

iDraw H A2+10W Laser Head Bundle

$1,138.80 USD
$1,898.00 USD $1,138.80 USD
Sale Sold out
Shipping calculated at checkout.
iDraw H A2 Pen Plotter Drawing Robot Pen Plotter Drawing Machine, Draw More Than A2 Size (Plug)
⚡ Business Upgrade Deal | SAVE 40% OFF

The UUNA TEK® iDraw H A2 + 10W Laser Head Bundle provides a high-capacity, dual-function plotting and laser cutting platform designed for large-format creations. Featuring a 16.5 × 23.4 inch working canvas and driven by four 42 stepper motors with drag chain technology, this bundle combines pen plotting with a 10W diode laser module. It enables creators, studios, and industrial users to plot vector designs or engrave and cut materials like wood, leather, fabric, and coated metals.

View full details

Value Propositions

  • Large-Format A2 Plotting Canvas

    Provides a 16.5 × 23.4 inch working area to support expansive generative artwork, ethnic costume design, luggage leather marking, and mechanical draft lines without scale limitations.

  • 10W High-Power Laser Cutting & Engraving

    The 10W laser module delivers enough optical power to surface-engrave and cut through light wood, kraft paper, fabric, leather, opaque acrylic, and coated metals.

  • Quad Stepper Motors & Drag Chain Mechanism

    Powered by four 42 stepper motors and integrated drag chain cable management to maintain smooth motion control and 0.01 mm X/Y mechanical precision during rapid execution.

  • Vertical Mounting Capability

    Supports vertical wall or easel mounting setups to conserve workshop desk space while managing oversized physical media.

  • Open-Source G-Code & Software Flexibility

    Compatible with Inkscape (writing/drawing) and LightBurn (laser engraving/cutting) across Windows, macOS, and Linux platforms via USB or Bluetooth. Includes Email Merge and Hershey Font support for automated bulk handwriting.

Buy Separately vs. Buy Bundle

Option Included Items Regular Price Current Sale Price Net Savings
Buy Separately
  • iDraw H (A2 Size) ($1,499.00)
  • 10W Laser Head Module ($379.00)
 $1,898.00 USD $1,408.00 USD —
Buy Bundle iDraw H A2 Drawing Robot + 10W Laser Head Complete Package $1,898.00 USD $1,138.80 USD Save an extra $759.20 USD
(40% OFF Bundle Regular Price)
  • Cost Savings: Bundling saves $759.20 USD compared to purchasing the standalone iDraw H A2 machine and 10W laser module individually at regular prices.
  • High-Power Industrial Capability: Unlocks both large-format pen plotting and 10W laser cutting/engraving on a single structural frame.

Technical Specifications

Model Name: UUNA TEK® iDraw H (A2 Size) + 10W Laser Module Bundle[cite: 1, 2]

Working Area: 16.5 × 23.4 inches (A2 Size)

Base Plate Notice: No base plate included for this large-format version

Laser Optical Power: 10W Diode Laser Module Head

Laser Material Compatibility: Light wood, kraft paper, fabric, leather, opaque acrylic, bamboo, coated metals

Laser Exclusions: Raw un-coated metals, clear glass, transparent materials, stone, ceramics

Plotting & Writing Speed: Up to 12,000 mm/min

Mechanical Precision: X: 0.01 mm, Y: 0.01 mm

Motors & Cable Management: 4× 42 Stepper Motors with Drag Chain Cable System

Frame Materials: Heavy-Duty Aluminum Profile + Steel Plate

Mounting Options: Horizontal desktop or Vertical wall/easel mounting

Connectivity: USB and Bluetooth

Software Support: Inkscape (with UUNA TEK extensions), LightBurn, Adobe Illustrator (via G-code export)

Supported OS: Windows 7 / 8 / 10 / 11+, macOS, Linux

Power Requirements: AC 110V–220V worldwide input

Package Contents: iDraw H A2 Machine Frame, 10W Laser Head Module, Pen Holder Mount, Power Supply, USB Cable, Cable Drag Chains, Toolkit, User Manual

FAQ

Q: Does the iDraw H A2 include a base plate?

A: No, the A2 format machine does not come with a bottom base plate, allowing you to position it directly over large drawing paper, leather hides, or work tables.

Q: Can the 10W laser cut through materials?

A: Yes, the 10W laser module is designed for surface engraving as well as cutting through thin wood, paper, fabric, leather, and light plastic sheets.

Q: Do I need to remove the laser head when pen plotting?

A: Yes, you need to remove the laser head when pen plotter.

Q: What software should I use for laser cutting on the A2 machine?

A: LightBurn is the recommended software for controlling laser engraving and cutting vector jobs on the iDraw H series
