Executive Summary
Dr. Daniel Phelps (PhD | MFA), Lecturer in Computational Media at the Georgia Institute of Technology (Georgia Tech), successfully integrated and customized the iDraw H A0 Pen Plotter to pioneer an interactive hands-on curriculum bridging computer science, generative design, and vector art. By converting the large-format iDraw H A0 into a wall-mounted, mobile workstation with custom mechanical tensioning, AI-driven embedded computing, and magnetic hold-down systems, Dr. Phelps demonstrated the remarkable versatility and robust engineering of the iDraw series in top-tier higher education.
Client Overview
| Attribute | Details |
|---|---|
| Client | Dr. Daniel Phelps, PhD | MFA |
| Institution | Georgia Institute of Technology (Georgia Tech), LMC |
| Role | Lecturer in Computational Media |
| Location | Atlanta, GA, USA |
| Field | Computational Media, Generative Art, Digital-to-Physical Manufacturing |
The Academic Challenge
At Georgia Tech, students in Computational Media learn vector-based design, raw G-code generation, and how to code custom software applications for generative output. To bring these digital creations into physical reality, Dr. Phelps required a large-format plotting system capable of handling complex vector operations.
Key challenges included:
- Space Constraints in Labs: Horizontal A0-sized plotters take up significant footprint in academic labs and classrooms.
- Mobility Needs: Equipment needed to be stored safely in lab spaces while remaining easy to move directly into lecture halls for live demonstrations.
- Gravity & Stepper Strain in Vertical Orientation: Mounting large-format plotters vertically on walls induces gravity load on the Y-axis carriage.
The Solution & Custom Engineering Work
Dr. Phelps selected the iDraw H A0 Pen Plotter for its strong structural stability, open vector/G-code workflow compatibility, and high precision. To tailor it specifically to his curriculum, Dr. Phelps developed a mobile, wall-mounted workstation:
1. Vertical Wall Mount & Tensioning System

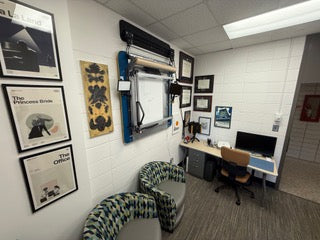

- Reinforced Structure: Mounted and reinforced with steel sheets and high-strength plywood, sitting 2 inches off the wall.
- Small Tensioner Customization: Added a compact mechanical tensioner to the pen head assembly to counteract gravity during vertical operations, eliminating Y-axis slippage without exceeding standard factory driver current calibrations.
- Integrated Mobility: Equipped with stowable wheels, allowing the wall-mounted rig to be unhooked and rolled directly to classrooms ("A-frame" ground plotting mode).
2. Integrated Workstation Ecosystem
- Embedded Computing for AI: Integrated an embedded computer dedicated to local AI-driven SVG creation and automated print queue management.
- Time-Lapse Capture: Built-in time-lapse camera gear for archiving student drawing workflows and generative processes.
- Paper Management & Cutting: Built-in roll paper dispenser, paper cutter, and magnetic steel base plate for rapid paper alignment and fixing.
- Adjustable Studio Lighting: Embedded LED lighting with custom color-temperature and brightness controls.
- Clean Cable Management: All wiring and power routing neatly run behind the device chassis.
Curriculum Impact & Future Expansion
By leveraging the iDraw H A0 Pen Plotter, Georgia Tech students gain direct, tangible feedback on algorithmic and generative software design:
- Generative Code to Physical Art: Students author custom algorithms outputting SVGs and raw G-code to execute complex physical artwork.
- Cross-Disciplinary Manufacturing: Students compare pen plotting vector physics against high-speed Galvo Laser systems.
- Lab Expansion: Following the success of the initial setup, Georgia Tech is equipping its student labs with additional wall-mounted iDraw A0 plotter units, creating a permanent creative output hub for students.
"I have developed a college curriculum in which students learn vector-based design skills and output their work on a plotter and a Galvo Laser system. They learn G-code and how to code custom apps for generative output... The plotter hangs on my wall as is, but I hoist it down and roll it to class as it has wheels. The new ones I’m ordering will hang on the wall in the college lab so students can load up their work and print when they need it."
— Dr. Daniel Phelps, PhD | MFA, Lecturer in Computational Media, Georgia Tech
Key Highlights for iDraw Pen Plotters
- High Structural Precision: Smoothly handles large-format A0 drawing areas even in non-standard vertical wall-mounted configurations.
- Open Ecosystem: Complete compatibility with custom G-code generation, AI SVG pipelines, and Python/Inkscape vector tools.
- Maker-Friendly & Moddable: Built with solid hardware architecture that enables educators and engineers to easily extend its capabilities.
