UUNA TEK® iDraw H Version Pen Plotter - A2/A1/A0 Size Handwriting Machine/XY Plotter/Laser Engraver

UUNA TEK® iDraw H Version Pen Plotter - A2/A1/A0 Size Handwriting Machine/XY Plotter/Laser Engraver

Regular price $1,124.00 USD
Regular price $1,499.00 USD Sale price $1,124.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Plug

Introducing the UUNA TEK® iDraw H Version Pen Plotter - A2/A1/A0 Size, the ultimate solution for larger-scale artwork creation and design projects. This specialized machine is tailored for tasks like generative arts, ethnic costume design, luggage leather marking, mechanical product auxiliary line drafting, and handicraft folding line pressing, among others.

View full details
  • Drag Chain Technology

    Experience seamless drawing even at high speeds, thanks to the innovative drag chain mechanism. This ensures smooth operation and precise output with every stroke.

  • Vertical Mounting Capability

    Designed for versatility, the iDraw H can be effortlessly mounted vertically, allowing for the creation of large-scale artworks with ease and precision.

  • Supreme Size Options:

    Choose from A2, A1, or A0 sizes, with ample space to bring your grandest ideas to life. The A0 version measures an impressive 33.1 x 46.8 inches, offering boundless creative freedom.

  • Powerful Stepper Motors

    Equipped with 4* 42 Stepper Motors (more for A1/A0 sizes), guaranteeing robust performance even with larger plots.

  • Unparalleled Speed

    With a writing speed of 0-12,000MM/MIN, the UUNA TEK H Version makes short work of your creative projects while maintaining the same precision that defines our brand.

  • Comprehensive Software Support

    Compatible with Windows 7/8/10 (Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), and Linux, ensuring you have the right tools at your disposal.

  • Built for Precision

    With a mechanical precision of Y:0.01 mm and X:0.01 mm, the UUNA TEK H Version is the embodiment of perfection.

  • User-Friendly Connectivity

    Seamlessly connect via USB or Bluetooth, making it versatile and accessible for all.

  • World-Class Frame Materials

    Built with a blend of Aluminum Profile and Steel Plate, ensuring durability and longevity.

  • Adaptable Power

    Operating within a wide voltage range (110V-220V), it's ready for action no matter where you are.

  • Versatile Laser Options

    Select from 500mW to 15W laser heads for engraving wood, plastics, leather, and paper.

Collapsible content

Notification

UUNA TEK® H A0/A1/A2 is derivatives of the UUNA TEK® H A3 pen plotter without basement, specially redesigned for a larger plot area.

Even with the improved carriage, these larger models generally need to be operated at slower speeds than a regular UUNA TEK® H A3 in order to achieve the same quality.

To reduce shipping cost and the risk of damage, these models ship partially disassembled, and we will ship from our Chinese manufacturer directly. Because of this high shipping cost, we don't accept return or refund, but we can provide free replacements for any faulty parts and make sure it's working. We can only provide full refund because of quality issue and fail to provide solution.

Import tax should be charged by your customs

They're really big.

These units are made to order, in limited production, which will take at least one month to produce and at least 5-10 business days for shipment. Email us via uunatek@gmail.com to confirm everything after placed the order.

Specification

Motherboard: Drawcore V2.0

Firmware: GRBL Compatibility

Add-ons: UUNA TEK® 2.0 Control

Frame Materials: Aluminum Profile + Steel Plate

Working Area:  A2:(16.5 x 23.4 inches )A1:( 23.4 x 33.1 inches), A0:(33.1 x 46.8 inches)

Motors: 4* 42 Stepper Motors (more steppers might be used for A1/A0 Size)

Mechanical Precision: Y:0.01 mm,X:0.01mm

Writing Speed: 0-12,000MM/MIN (slower than A3 size)

Baud Rate: 115200 - 921600 (Default: 115200)

Input Format: JPG, JPEG, PNG, BMP, SVG, etc.

Input Voltage: 110V-220V (Compatible)

Power Adapter Output: 12V / 1A

Operating Temp.: -20℃-50℃

Product Size: A2:(17 x 27x6.7inches )A1:( 24 x 35x6.7 inches), A0:(34 x 48x6.7inches)

Net Weight: 5 kg-10kg

Limited Switch: Y

Adjustable Angle for Pen: 70-90 Degree

Connectivity: USB, Bluetooth

Support OS and Software: Windows 7/8/10(Inkscape), Mac OS (Inkscape for Writing and Drawing, Lightburn for Laser Engraving), Linux

Packing List

1 X UUNA TEK iDraw H A2/A1/A0 Pen Plotter

1 X Tool Kits

1 X Quick Start Guide

1 X Thank You Card

Software

Download the inkscape software and extensive files here>>>.

You can find the software for Windows, Mac, Linux, as well as the assmble guide for hardware and the install details about software.

For those who need advanced functions:

1. For those who need the function to save the plot file, please download this version>>>

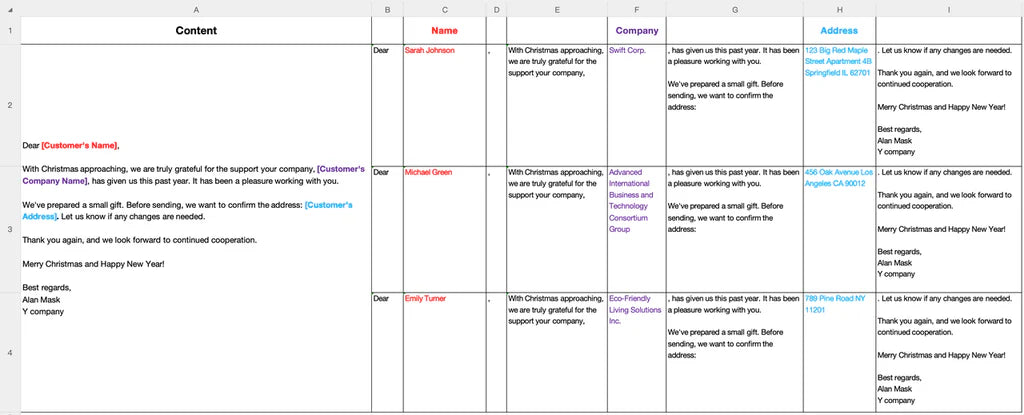

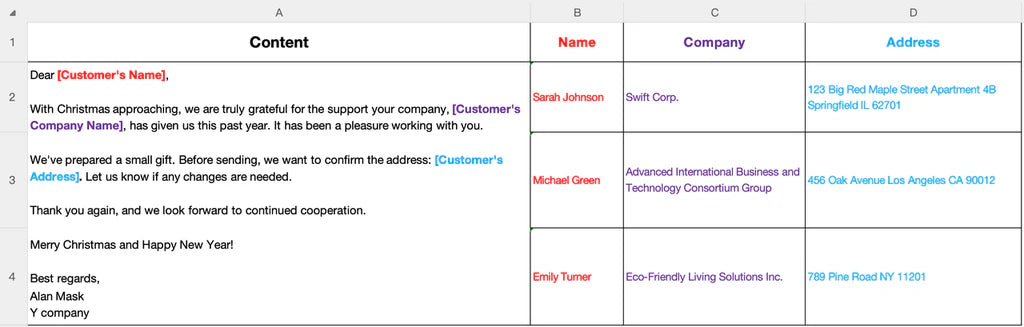

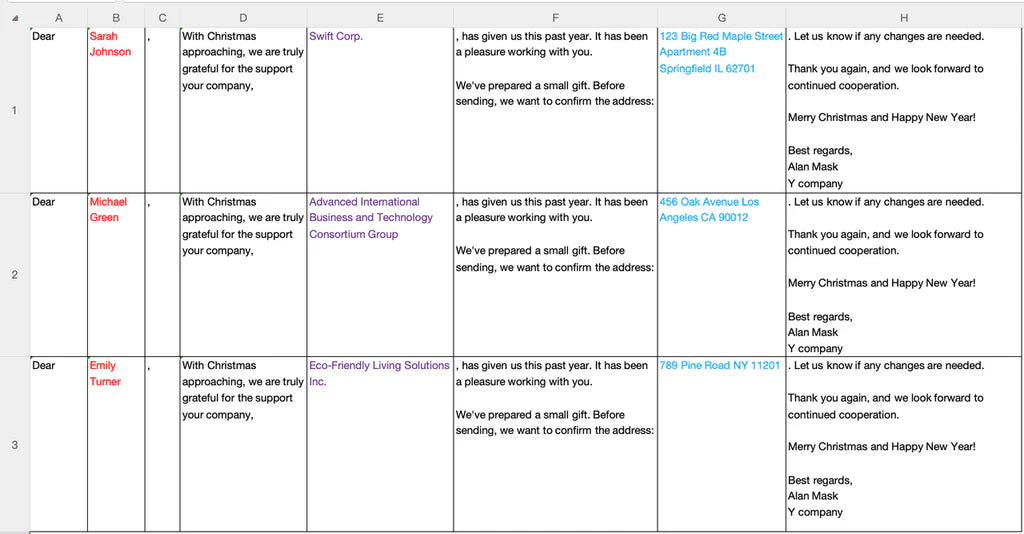

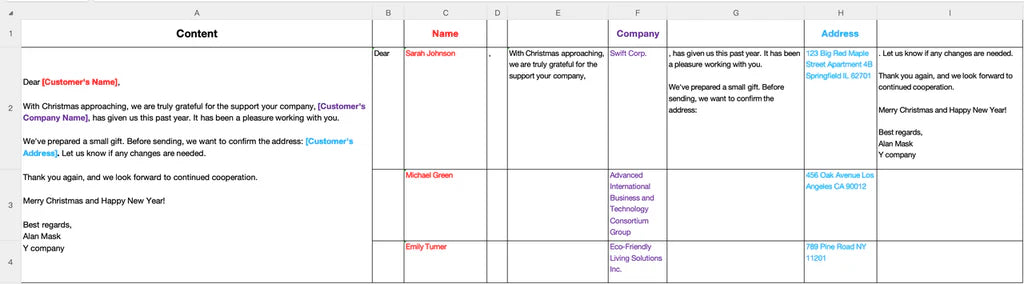

2. For those who need email merge function,

Windows: please download this version>>>

Mac or Linux, please download this version>>>

3. For those who need laser function, please download this version>>>

4. What if i have some programing basic and want to adjust the original parameters to break the speed limitation? Plesae download this version>>>

Tutorials

For UUNA TEK® 1.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK® 2.0 Pen Plotter, please check the video tutorials here>>>

For UUNA TEK® H Pen Plotter, please check the video tutorials here>>>

For Software, please check the video here>>>

For Laser Function, please check the video tutorials here>>>
